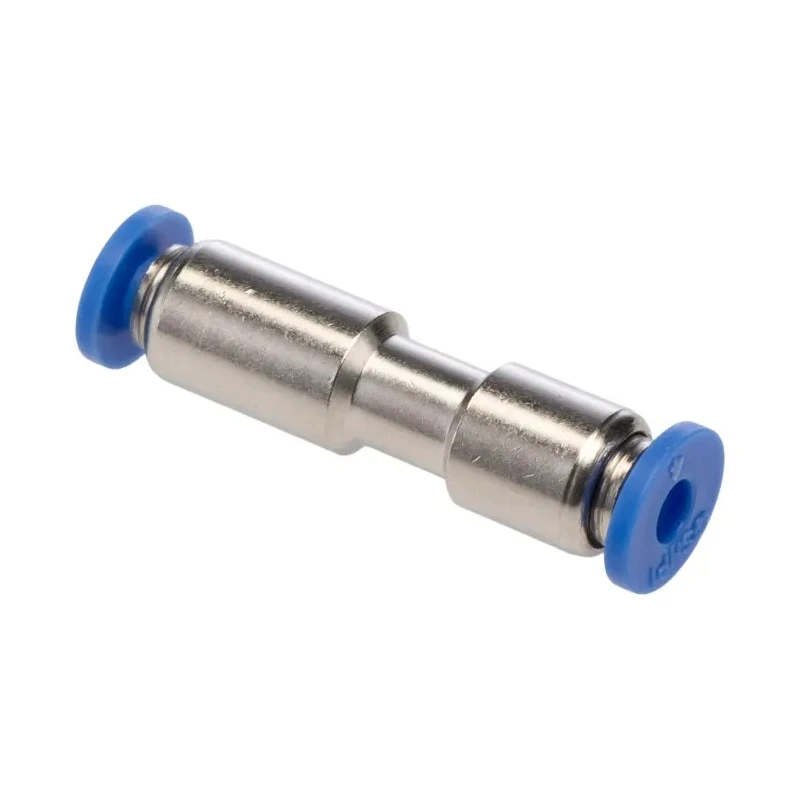

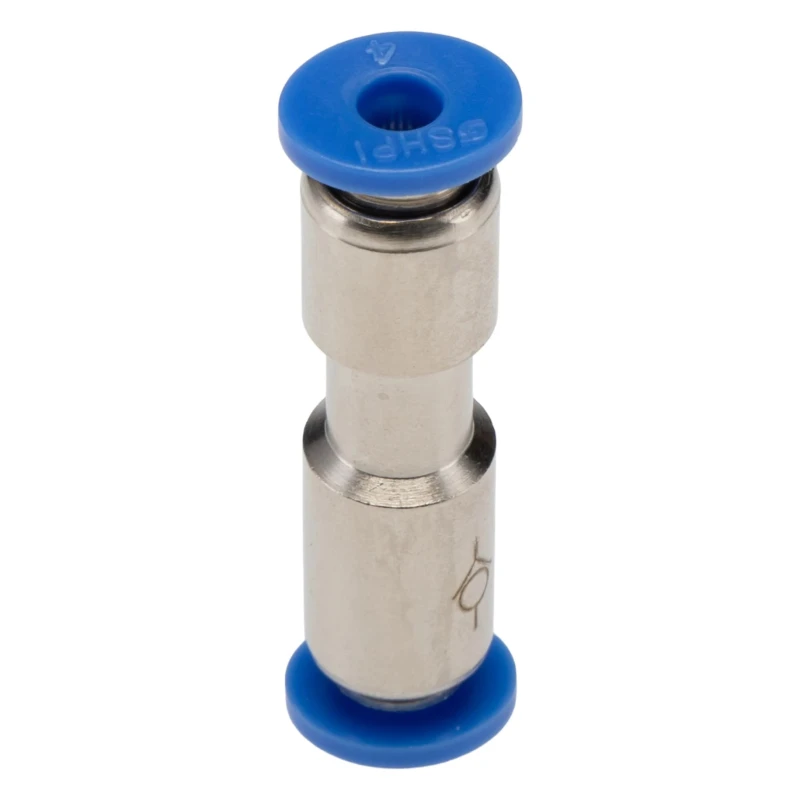

RS PRO Pneumatic Non Return Valve Tube to Tube 10 bar Pressure Max Model 916-0934

RS PRO 916-0934 pneumatic non return valve Tube to Tube with a maximum operating pressure of 10 bar is used to ensure unidirectional flow of air within pneumatic systems. This valve is designed for industrial applications including pharmaceutical, textile, and food production where contamination-free, efficient flow control is essential.

The valve features 4 mm tube inlet and outlet connections made secure with a push-on and screw collar locking mechanism. Its polybutylene terephthalate (PBT) resin body provides durability and resistance to abrasion, ensuring longevity in demanding environments.

With an operating temperature range from 0°C to 60°C and capable of functioning from zero to 10 bar pressure, this valve is suitable for low and medium pressure pneumatic systems. It helps prevent reverse flow and assists in vacuum maintenance, making it critical in pneumatic circuits.

Typical industrial applications include pneumatic controls, vacuum pumps, and pressure gauges across pharmaceutical manufacturing, food processing, and textile production lines where process reliability is paramount.

The valve has tube inlet and outlet connections both sized at 4 mm for easy installation. Constructed from durable polybutylene terephthalate (PBT) resin providing abrasion resistance. Designed to operate effectively in temperature ranges from 0°C to 60°C.

Prevents backflow and maintains vacuum in pneumatic systems. Maximum operating pressure rating of 10 bar for reliable pneumatic flow control. Push-on and screw collar connection design ensures a secure fit.

Choose the RS PRO 916-0934 Pneumatic Non Return Valve for dependable, maintenance-free performance in various industrial pneumatic applications. Explore more pneumatic valves and components in our Industrial Valves & Valve Fittings category for optimized process control.
