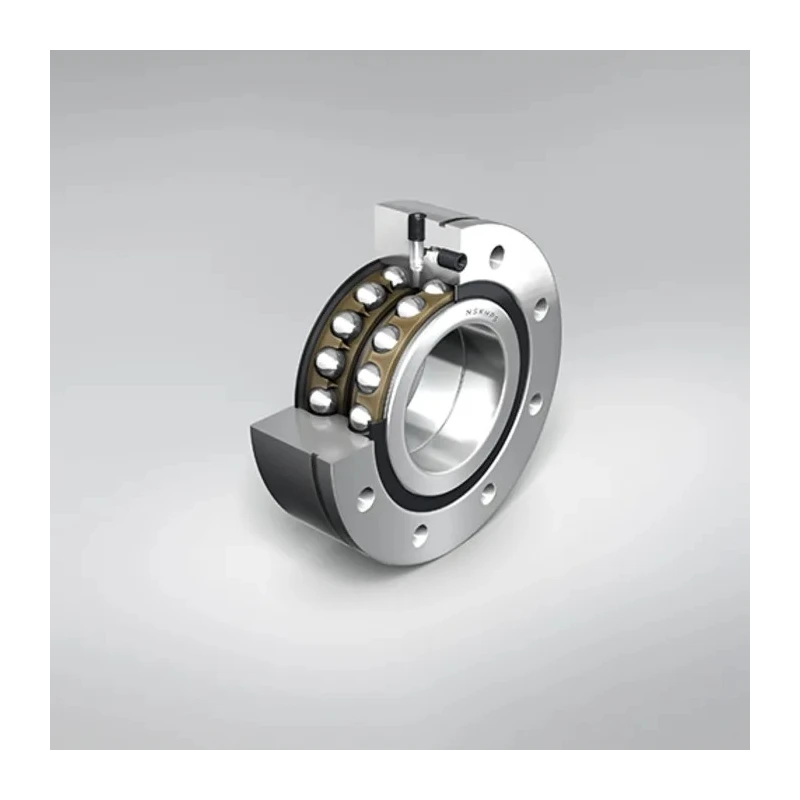

NSK Ball Screw Support Bearing 2 Row Angular Contact Flanged 30 mm ID 100 mm OD 38 mm Race Width BSF30100DDUHP2B R BE4L5
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | NSK |
| Model | BSF30100DDUHP2B R BE4L5 |
| Series | BSF |
| Outside diameter | 100mm |
| Inside Diameter | 30mm |
| Number of Rows | 2 |
| Ball Material | Steel |
| Limiting Speed | 4500rpm |
| Internal Clearance | CN |
| End Type | Sealed |
| Bore Type | Parallel |
| Bearing Type | Single Row Angular Contact Ball |
| Cage Material | Steel |
| Race Width | 38mm |
| Static Load Rating | 94kN |
| Race Type | Flanged |
| Dynamic Load Rating | 57.5kN |
| Contact Angle | 60° |
Key Features
- The bearing has a steel cage and steel balls for durability.
- It incorporates sealed ends for protection against contaminants.
- Supports large axial forces with a 60° contact angle design.
- Flanged outer ring allows for easy mounting and stability.
- Greased for life under normal operating conditions, minimizing maintenance.
- Designed for use in machine tool applications requiring precise axial force support.
- Features relubrication holes and extraction groove for serviceability.
- Static load rating is 94 kN and dynamic load rating is 57.5 kN.
Product Description
NSK BSF30100DDUHP2B R BE4L5 ball screw support bearing is a high precision 2 row angular contact bearing designed for robust axial force support in mechanical and industrial machinery. With a 30 mm inside diameter, 100 mm outside diameter, and 38 mm race width, this flanged bearing features steel cages and balls, combined with seals to protect against dust and contaminants.
This bearing excels with a 60° contact angle, enabling it to handle significant axial loads in both directions. The extended outer ring includes bolt holes for straightforward direct mounting, including relubrication holes closed with set screws for in-service maintenance. An extraction groove on the outer surface aids removal of the bearing, enhancing serviceability.
Greased for life under typical operating conditions, the bearing supports machine tools and other precision equipment where reliable and durable axial support is critical. The bearing series BSF, with a 4500 rpm limiting speed, provides high-speed operation capabilities and stable performance.
The bearing construction consists of a steel cage and steel balls providing reliable mechanical properties. Sealed ends reduce friction and heat generation while guarding against contamination. Double row design supports axial forces in both directions efficiently.
Flanged outer ring facilitates easy direct mounting on machinery. Greased for life minimizes maintenance requirements under normal conditions. Incorporates relubrication holes for optional bearing service and an extraction groove for easy removal.
High static and dynamic load ratings of 94 kN and 57.5 kN respectively ensure durability. Limiting speed of 4500 rpm supports industrial high-speed applications. Manufactured in the United Kingdom, guaranteeing quality standards.
This ball screw support bearing is ideal for use in machine tools and similar industrial equipment requiring precision, longevity, and dependable axial load management. EnvMart offers this component suited for demanding mechanical assemblies and manufacturing processes.
Explore more products in our Ball Bearings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inside diameter of 30 mm, an outside diameter of 100 mm, and a race width of 38 mm.
The static load rating is 94 kN, while the dynamic load rating is 57.5 kN.
The limiting speed for this bearing is 4500 rpm, making it suitable for high-speed applications.
The bearing features steel balls and a steel cage, providing reliable mechanical properties.
It incorporates a 60° contact angle design, allowing it to support significant axial loads in both directions.
The flanged outer ring includes bolt holes for straightforward direct mounting, enhancing stability during installation.
It is greased for life under normal operating conditions, minimizing maintenance, but it also includes relubrication holes for optional service.
The extraction groove on the outer surface aids in the easy removal of the bearing, enhancing serviceability.
This bearing is designed for use in machine tools and similar industrial equipment requiring precise axial force support.
It is manufactured in the United Kingdom, ensuring adherence to quality standards.
The internal clearance of this model is classified as CN.
This model is a single row angular contact ball bearing, specifically designed for robust axial force support.
