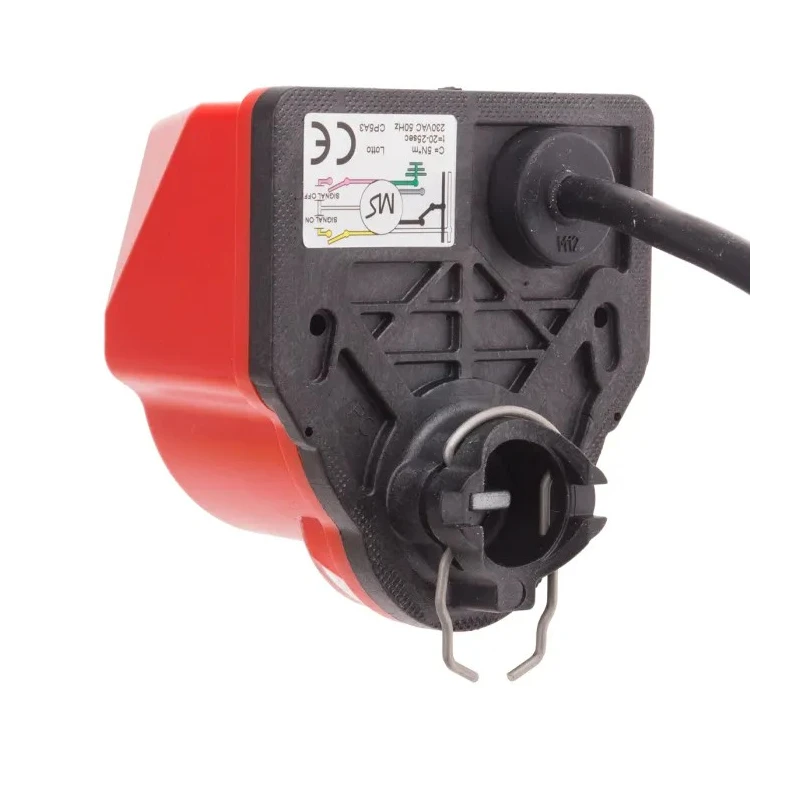

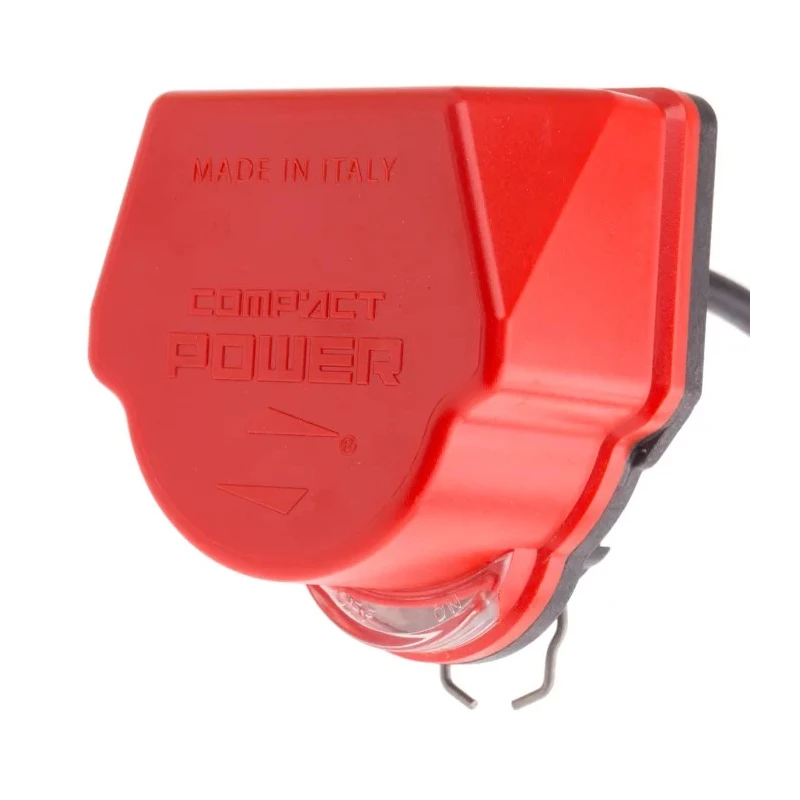

RS PRO 230V 2 Port Electric Actuated Valve Brass Body 40 bars 910-8526

The RS PRO 910-8526 is a high-quality 2 Port Electric Actuated Valve designed for industrial fluid control applications. It features a robust brass body built according to EN 12165 and EN 12164 standards, providing exceptional strength and corrosion resistance. The valve incorporates a chrome plated ball and a dual sealing system that enhances operational reliability and simplifies installation processes.

With a blowout-proof brass stem and PTFE self-lubricating seats, this valve ensures smooth operation without metal-to-metal contact, reducing wear and maintenance needs. The inclusion of two FPM O-rings at the stem guarantees maximum safety and leakage protection.

This valve is compatible with most industrial fluids and has undergone rigorous 100% seal testing in accordance with EN12266-1 RATE A specifications, ensuring secure sealing in both flow directions. Operating within a shell rating of 40 bar for non-shock cold working pressure and supporting a temperature range from -20°C to 120°C, it is suitable for diverse industrial environments.

The valve conforms to the PED Directive 97/23 and does not require CE marking, facilitating compliance with regulatory requirements. It offers options for thread types including ISO 7/1, BS 21 BSPT taper, and NPT taper ANSI B.1.20.1, allowing flexibility in integration.

This product is ideal for applications in industrial, manufacturing, HVAC, and fluid power systems where precise control of fluid flow is necessary. Its maintenance-free design and high durability make it suitable for long-term industrial use.

Constructed with brass body conforming to EN 12165 and EN 12164 specifications. Chrome plated ball ensures durability and corrosion resistance. Dual sealing system simplifies installation and enhances leak prevention. Features blowout-proof brass stem and PTFE self-lubricating seats for longevity.

Equipped with two FPM O-rings on the stem for maximum safety. Compatible with most industrial fluids for versatile applications. 100% seal tested to EN12266-1 Rate A standards in both flow directions. Supports temperature range from -20°C to 120°C suitable for various industrial environments.

Operates under shell rating of 40 bar (non-shock cold working pressure). Seat rating allows Delta P max permissible of 16 bar. Meets PED Directive 97/23 requirements without needing CE marking (Article 3, paragraph 3). Explore the full range of industrial valves and motorised Valve solutions at EnvMart for enhanced fluid control and automation.
