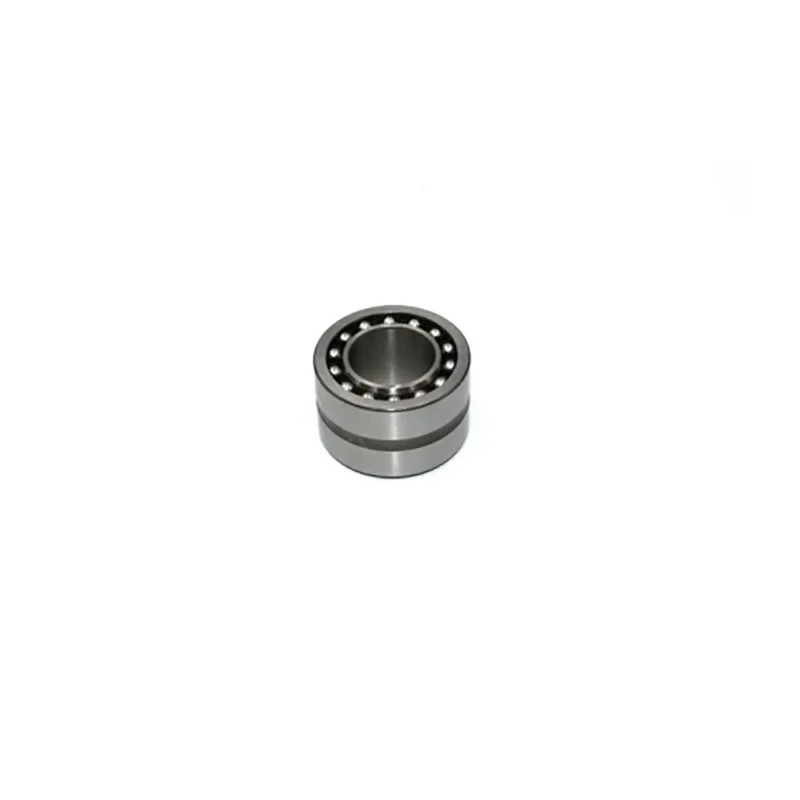

INA Needle Roller Bearing 20 mm Inside Diameter 37 mm Outside Diameter NKIA5904-XL

Free Delivery in India | Lowest Global Shipping Charges

INA Needle Roller Bearing 20 mm Inside Diameter 37 mm Outside Diameter NKIA5904-XL



Category Needle Roller Bearing Brand INA Condition New

Specifications

Country of Origin	India
Brand	INA
Model	NKIA5904-XL
Outside diameter	37mm
Inside Diameter	20mm
End Type	Open
Bore Type	Parallel
Bearing Type	Needle
Cage Material	Steel
Race Width	23mm
Static Load Rating	25.5kN
Dynamic Load Rating	23.7kN

Key Features

This bearing has a race width of 23 mm and features a parallel bore type.
Constructed with a steel cage for durability and performance.
Static load rating is 25.5 kN while dynamic load rating is 23.7 kN.
The open end type allows for axial displacement and compensates for shaft and housing misalignments.
Suitable for applications requiring compact, high load capacity non-locating bearings.
Supports high to very high radial forces with excellent speed capabilities due to line contact.
Offers a small radial design envelope and is cost-effective for compact bearing arrangements.

Product Description

INA NKIA5904-XL Needle Roller Bearing features a 20 mm inside diameter and 37 mm outside diameter and 23 mm race width, designed as a needle type bearing with open ends. This bearing is constructed with a steel cage and a parallel bore type, supporting high to very high radial forces essential for demanding industrial and mechanical applications.

It is engineered to serve where the load carrying capacity or accuracy of drawn cup needle roller bearings with open ends is insufficient, but the high load capacity of cylindrical roller bearings is not required. This bearing type only supports radial loads, making it highly suitable as a non-locating bearing permitting axial shaft displacement relative to the housing.

The bearing permits high speeds owing to its line contact, compensates misalignments between shaft and housing, and requires only a minimal radial design envelope, especially when designed without an inner ring. Its design results in particularly compact, cost-effective, and economical bearing arrangements.

Key specifications include a static load rating of 25.5 kN and dynamic load rating of 23.7 kN, ensuring reliable performance under demanding radial load conditions. The open ends facilitate high-speed applications and allow for thermal expansion adjustments in assemblies.

This bearing has a race width of 23 mm and a parallel bore type for robust fitting. Constructed with a steel cage for long-lasting durability and operational efficiency. Offers high static and dynamic load ratings of 25.5 kN and 23.7 kN respectively.

Ideal for industrial, manufacturing, and machinery applications requiring compact radial bearing solutions. Designed as a non-locating bearing supporting only radial loads and permitting axial displacement. Enables alignment compensation between shaft and housing, enhancing reliability and lifespan.

This bearing is essential in mechanical machinery spares, enabling high performance and economy in roller bearing applications. Explore more Needle Roller Bearings and related mechanical components in the Industrial Tools & Equipment category at EnvMart.
