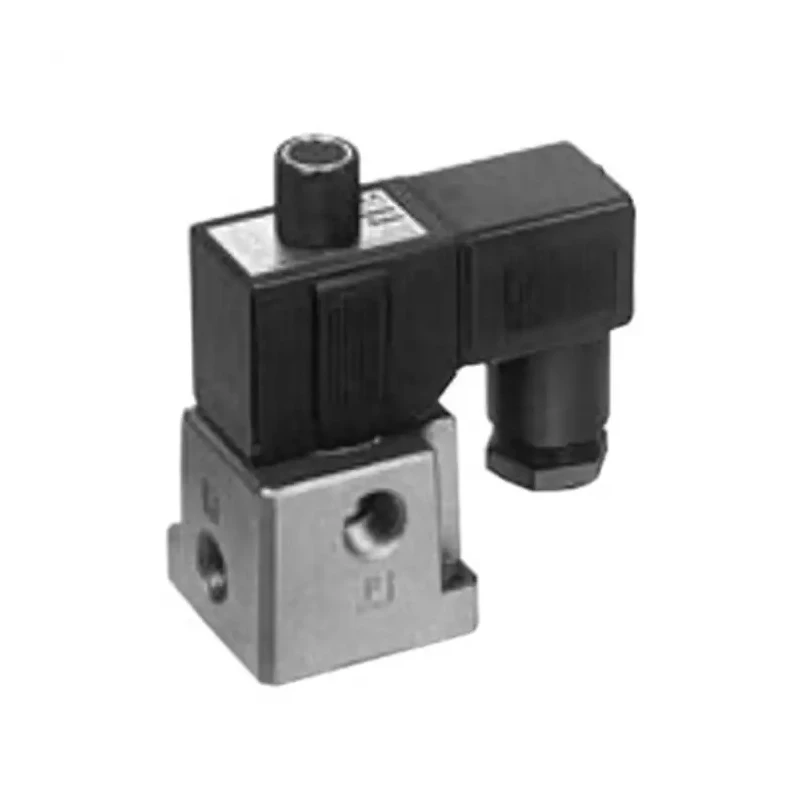

SMC Solenoid Valve RC Thread 1/4 in, 3 Port, Die Cast Aluminium Body, 110V, Single Solenoid, VT317 Series

Free Delivery in India | Lowest Global Shipping Charges

SMC Solenoid Valve RC Thread 1/4 in, 3 Port, Die Cast Aluminium Body, 110V, Single Solenoid, VT317 Series



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	110V
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	9 bar
Model	VT317
Mount Type	Free Stand
Series	VT317
Number Of Ports	3
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	1/4 in
Seal Material	Rubber
Minimum Operating Temperature	0°C
Actuation Type	Solenoid
Maximum Flow Rate	1000L/min
Standards/Approvals	RoHS
Connection Thread Standard	Rc
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Solenoid Power Consumption	6W

Key Features

Die cast aluminium body offers durability and corrosion resistance.
Operates at 110V with single solenoid actuation.
Seal material is rubber ensuring reliable sealing.
Max operating pressure up to 9 bar supports robust use.
Supports maximum flow rate of 1000 L/min for efficient operation.
Mounts as free stand with electrical DIN connector connection type.
Minimum and maximum operating temperatures are 0°C and 50°C respectively.
Features 2 positions and low solenoid power consumption of 6W.

Product Description

SMC VT317-3DZ-02F-Q solenoid valve is a compact, high flow capacity valve designed for pneumatic control systems requiring Rc threaded 1/4 in ports and 3 port configurations.

The valve body is robustly constructed from die cast aluminium, providing longevity and resistance to industrial environmental conditions. The rubber seal material ensures reliable and leak-free operation across the valve's specified temperature range from 0°C to 50°C.

Operating at 110 volts AC with a single solenoid actuation, this valve consumes low power of only 6W, making it energy efficient. It supports a maximum operating pressure of 9 bar and can achieve flow rates up to 1000 L/min, suitable for demanding pneumatic applications including vacuum use.

This model features a free stand mount type and connects electrically via a standard DIN connector, facilitating easy installation and integration within pneumatic systems. The 2-position valve design allows versatility with selective porting to perform functions such as normally closed (N.C.), normally open (N.O.), divider, and selector valve roles, adaptable by simply changing the switch cover orientation on manifolded valves.

The SMC VT317 series is RoHS compliant and manufactured in Japan, ensuring adherence to quality and environmental standards.

Typical industrial use cases include pneumatic automation in manufacturing, fluid power systems in industrial machinery, HVAC controls, and other commercial pneumatic valve applications requiring reliable solenoid operation.

Die cast aluminium body for durability and corrosion resistance. Single solenoid actuation operating at 110V with low power consumption. Rubber seals provide reliable leak prevention. Capable of handling pressures up to 9 bar and flow rates to 1000 L/min.

Free stand mount and DIN connector for versatile installation. Two positions with selectable porting for multiple valve functions. RoHS compliant meeting environmental standards. Manufactured in Japan ensuring high-quality craftsmanship.

Suitable for vacuum and industrial fluid power applications. Compact size with large flow capacity for efficient pneumatic control. Explore more in the Pneumatic Solenoid Valves category at EnvMart for a variety of industrial valve solutions.
