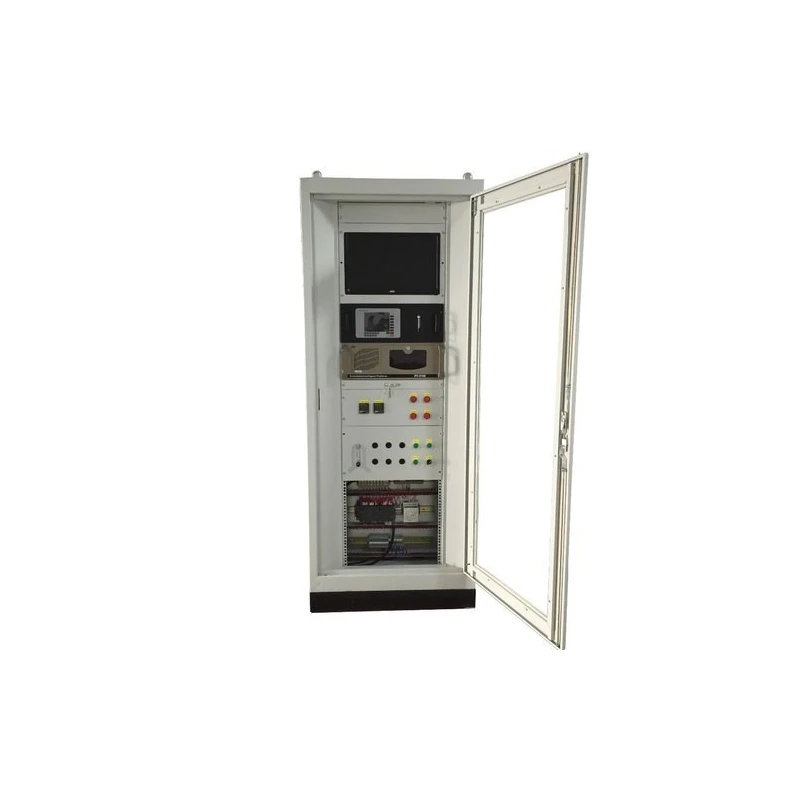

Emissions Monitoring Continuous Systems 220 V
Specifications
| Repeatability | 0.01 |
|---|---|
| Size | 19 3U320mm |
| Power | 220VAC/50Hz 100W |
| Protection grade | 220VAC/50Hz 100W IP42 |
| Span drift | 1%F.S./week |
| Ambient Temperature (ºC) | 5 ºC to 45 ºC |
| SO2 Detection range | Min 0-50ppm|Max 0-100%| |
| NO Detection range | Min 0-50ppm|Max 0-100%| |
| O2 Detection range | 0-25%| Electrochemical or zirconia |
| Linearity error | 1%F.S. |
| Response time(T90) | Less Than 10s |
| Analog interface | 3-way 4-20mA output|2-way 4-20mA output |
| Project | Indicators |
Key Features
- In accordance with the complete system requirements, adopt analysis cabinet structure, complete the Engineer, Procure and Construct design, simplified installation and commissioning.
- Adopt imported high-performance membrane pump configuration, the pump with strong anti-corrosion ability, high reliability, long service life, small maintenance workload, reliable operation.
Product Description
Emissions Monitoring Continuous Systems Air quality monitoring systems are used to measure the concentration of pollutants in air. They can be used to determine if the air quality is safe for human exposure. These devices use sensors that detect the amount of certain gases and particulate matter present in the air. This information is then displayed graphically and numerically.
- The device pretreatment system uses a special structural design, using two dehumidification, three dust elimination, combined with the purification method of coarse filtration and fine filtration,
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates on a power supply of 220VAC at 50Hz with a consumption of 100W.
The detection range for SO2 is from 0 to 50 ppm, with a maximum of 0 to 100%. For NO, the detection range is also from 0 to 50 ppm, with a maximum of 0 to 100%.
This model can operate within an ambient temperature range of 5 ºC to 45 ºC.
The response time for this emissions monitoring system is less than 10 seconds (T90).
It features a 3-way 4-20mA output and a 2-way 4-20mA output for analog interfacing.
The dimensions of this unit are 19 inches in a 3U height, measuring 320mm in depth.
It has a protection grade of IP42, indicating a level of protection against dust and water.
The repeatability of this emissions monitoring system is 0.01.
The span drift rate is 1% of full scale per week.
This model can detect SO2, NO, and O2, with O2 detection using either electrochemical or zirconia methods.
The linearity error is specified as 1% of full scale (F.S.).
