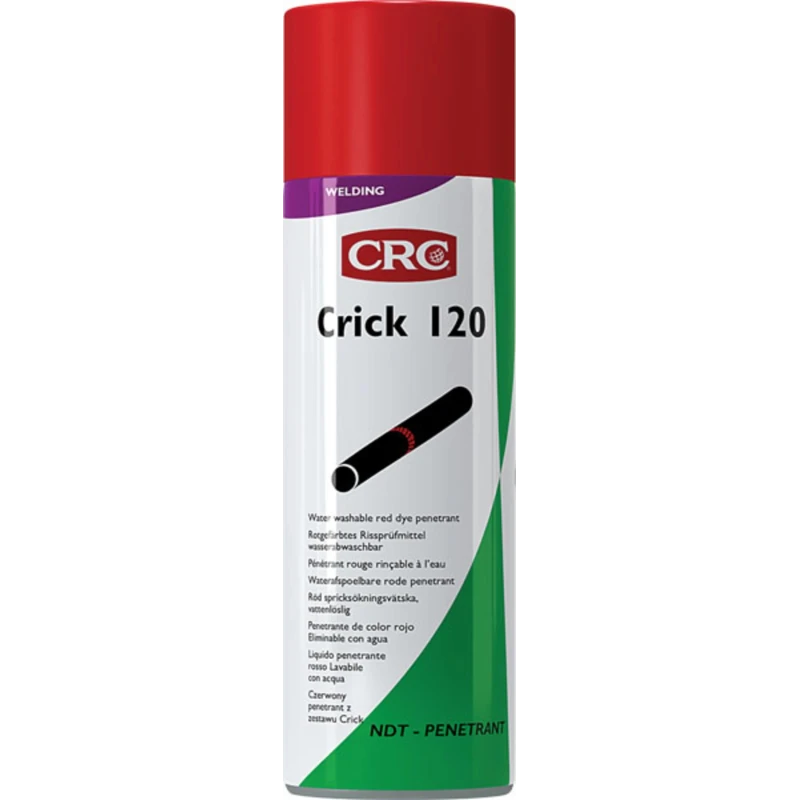

CRC Leak & Flaw Detector Spray Penetrant 500 ml Can Crick 120 30205

CRC 30205 Leak & Flaw Detector Spray Penetrant 500 ml Can Crick 120 is a top-tier penetrant aerosol designed for non-destructive testing (NDT) applications. Its vivid red liquid penetrant is effective for revealing surface flaws that are not visible to the naked eye. The product is delivered in a 500 ml canister incorporating an economical hydrocarbon propellant that ensures controlled dispensing during inspection workflows.

This water-washable formulation permits efficient clean-up of surfaces after inspection. By applying this penetrant spray followed by a developing step, inspectors are able to obtain visible indications of cracks, lack of fusion, and other surface discontinuities. It suits diverse materials and complex shapes, thus expanding its usability across many industrial inspection requirements.

Its halogen-free makeup aligns with the DIN EN 14291 standard for flaw detection penetrants. The spray is extensively used in industries requiring high precision flaw detection such as welding inspections, fatigue assessment, and leak detection in pipes, tanks, and boilers. Surfaces like castings and ceramics benefit from this penetrant’s sensitivity in revealing defects.

Before applying, surfaces should be cleaned and degreased, free from contaminants such as rust, oils, or grease to maximize penetration. A dwell time of approximately 10 to 20 minutes is recommended to ensure the penetrant reaches all potential flaws. The product should be used in ambient temperatures above 10°C and in well-ventilated areas given its solvent-based composition.

The 500 ml aerosol pack size offers a compact yet sufficient volume for thorough inspection tasks, making it suitable for industrial maintenance, manufacturing quality control, and laboratory use. The product is manufactured in the United Kingdom and is supplied as a new item.

Produces quick and reliable results using ready-to-use aerosols. Water washable formulation for easy clean-up. Compatible with various materials and shapes. Cost-effective with minimal equipment needs. Economical hydrocarbon propellant for controlled dispensing.

Halogen-free, meeting DIN EN 14291 standard. Ideal for weld crack and fusion defect inspection. Detects defects from metal fatigue and machining. Used for leak detection in pipes, tanks, boilers. Suitable for surface inspection of castings and ceramics.
