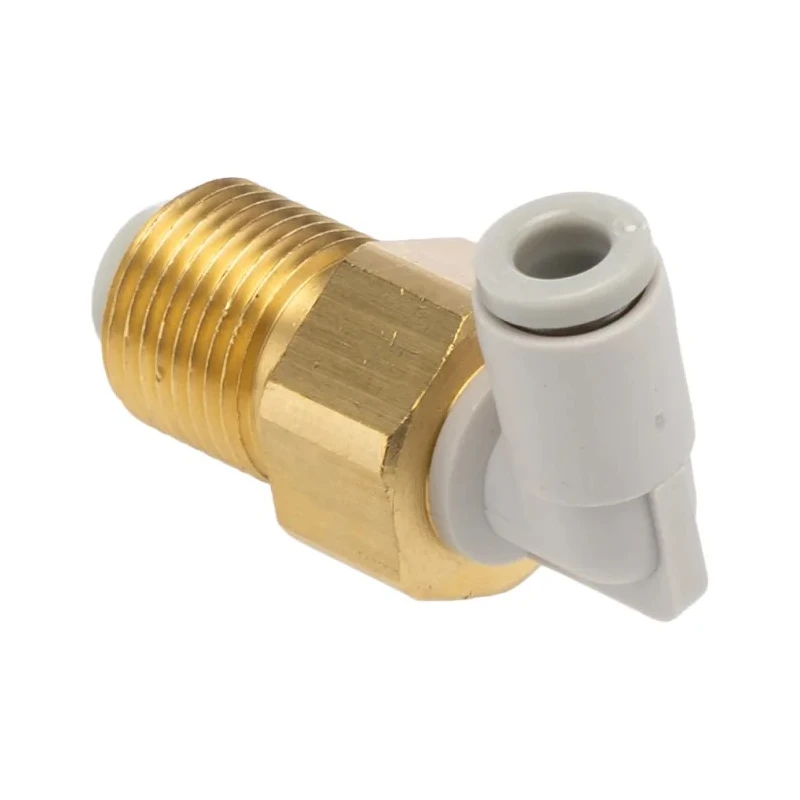

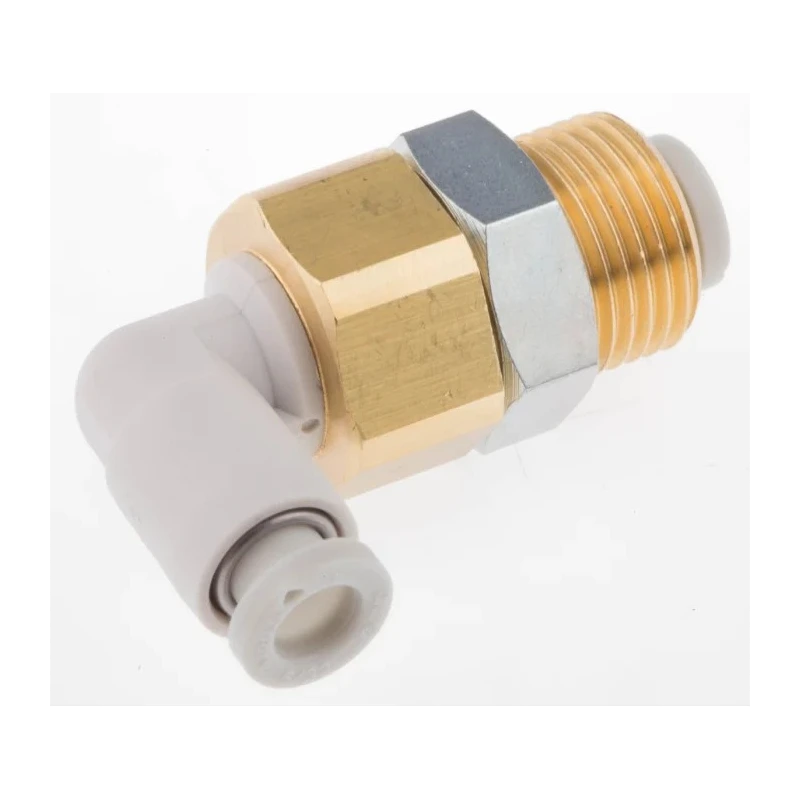

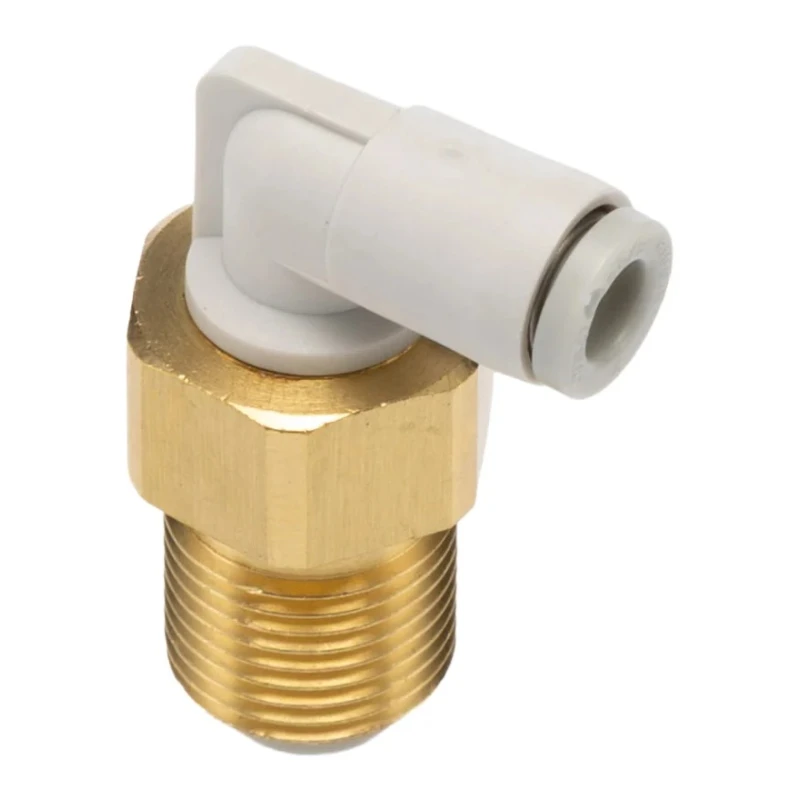

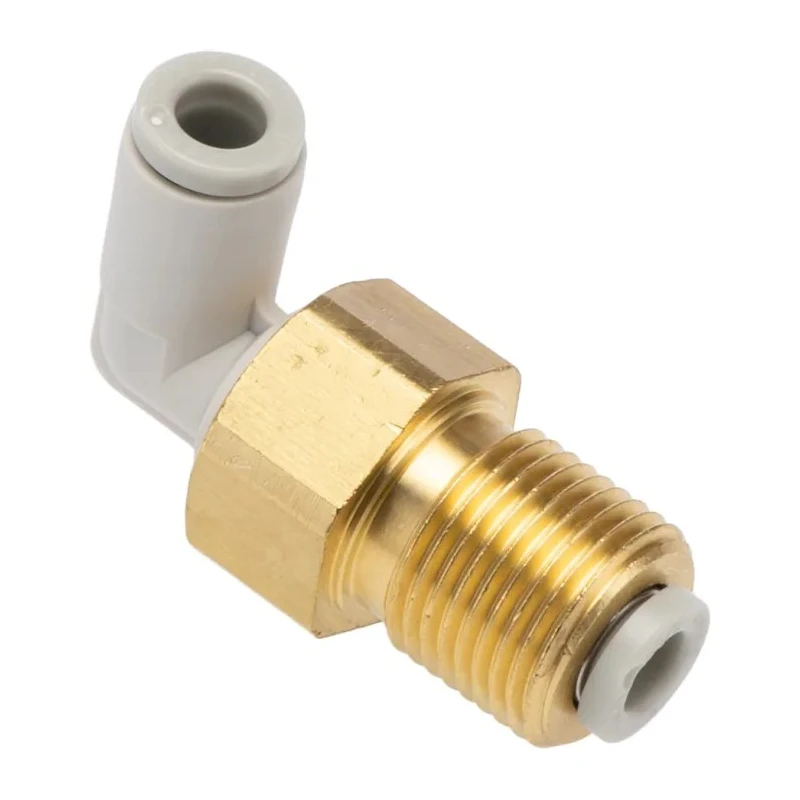

SMC KQ2 Series Brass Pneumatic Fitting Male M12 x 1 Thread, 4mm Push-in Tube Connection, 90° Angle KQ2LE04-00A

SMC KQ2LE04-00A is a brass pneumatic fitting featuring a male M12 x 1 threaded connection and a 4mm push-in tube connection with a 90° angled design. This fitting is engineered for pneumatic control and distribution applications, particularly where compact and precise directional changes are necessary within compressed air systems. The M12 x 1 male thread ensures a secure mechanical joint with reliable alignment for easy installation.

The 4mm push-in tube interface allows rapid insertion and removal of tubing, providing efficiency in maintenance and assembly. The fitting's polybutylene tube component delivers excellent chemical resistance and flexibility, suitable for a range of industrial fluids and pneumatic lines. Electroless nickel plating on the brass body offers enhanced abrasion resistance and corrosion protection, supporting longevity even under elevated operating temperatures up to 60°C.

This 90° angle configuration reduces tubing stress and is ideal for use in confined spaces such as valve island manifolds, pneumatic control panels in electronics assembly lines, and pick-and-place equipment requiring compact air routing. It also accommodates space-limited directional changes in cabling ducts and automated production environments.

Manufactured under the respected SMC KQ2 Series, this fitting complies with RoHS standards, ensuring environmental safety and reliability. Originating from Singapore, it is built to meet stringent industrial requirements for pneumatic connectors and fittings.

M12 x 1 male thread offers secure mechanical connection and alignment. 90° angled design reduces tubing stress in tight installations. Push-in tube type facilitates quick and leak-free assembly with 4mm tubing. Electroless nickel plating enhances durability and corrosion resistance.

Rated for continuous operation up to 60°C, suitable for elevated temperature applications. Brass body with polybutylene tube connection for chemical resistance and flexibility. Applicable for valve island manifolds in factory automation systems.

Ideal for pneumatic control panels in electronics manufacturing. Supports compact air routing needs in pick-and-place equipment. Designed for space-constrained directional tubing changes. Explore more Pneumatic Fittings in the SMC series on EnvMart for your industrial automation and fluid power needs.
