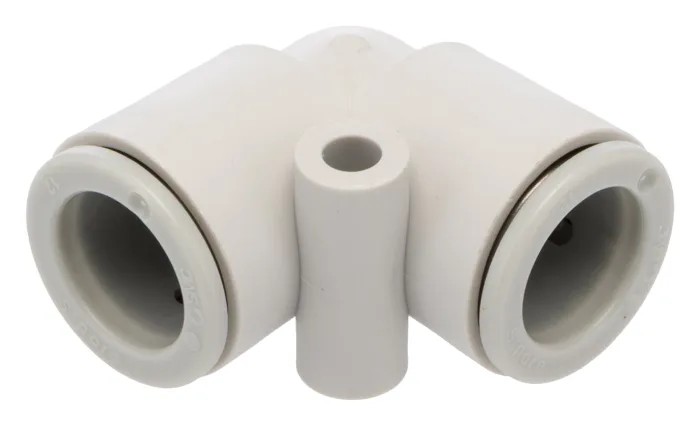

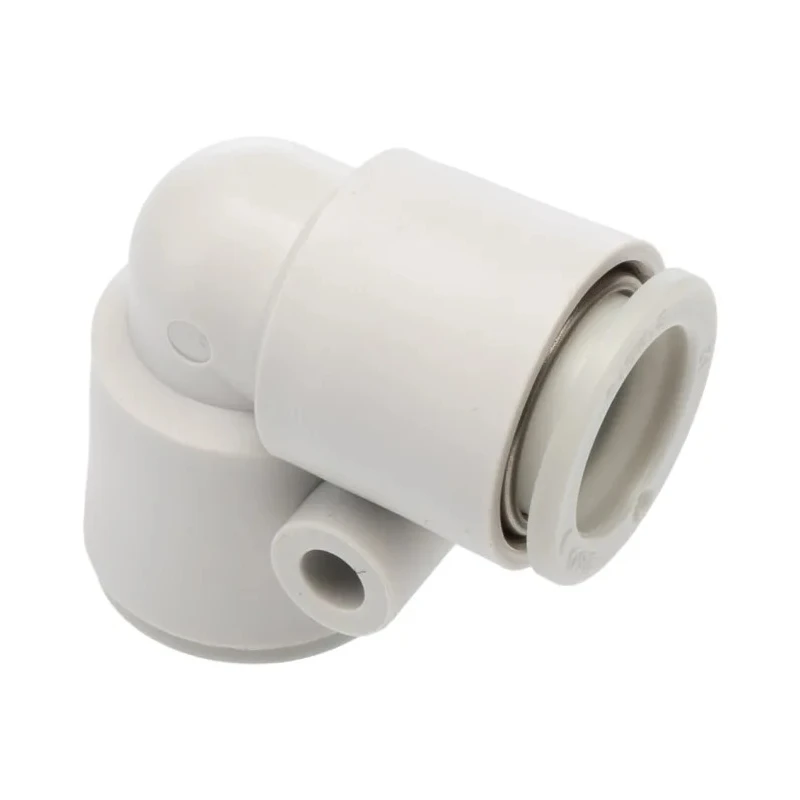

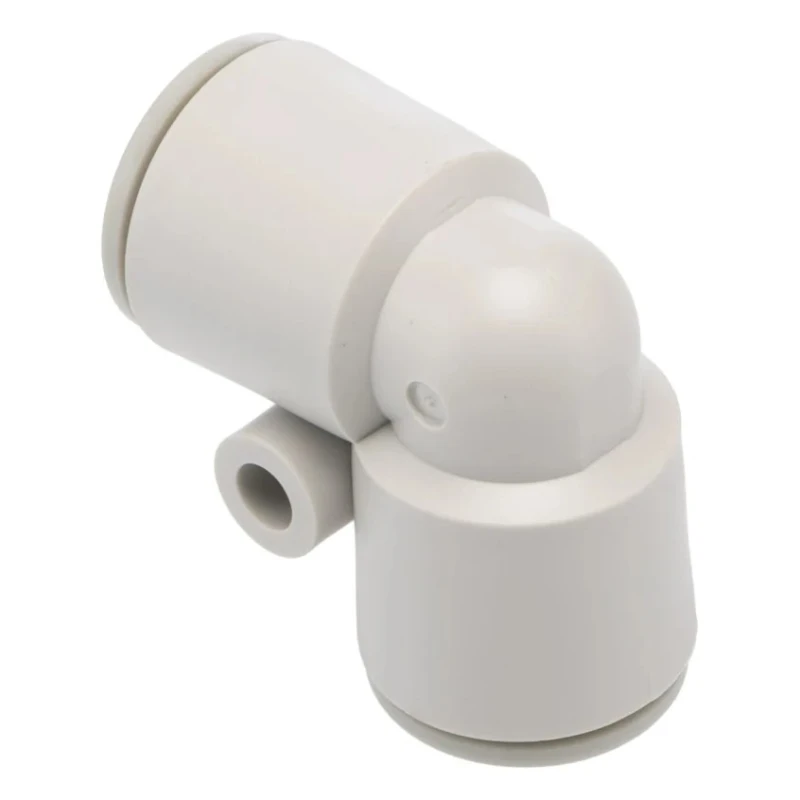

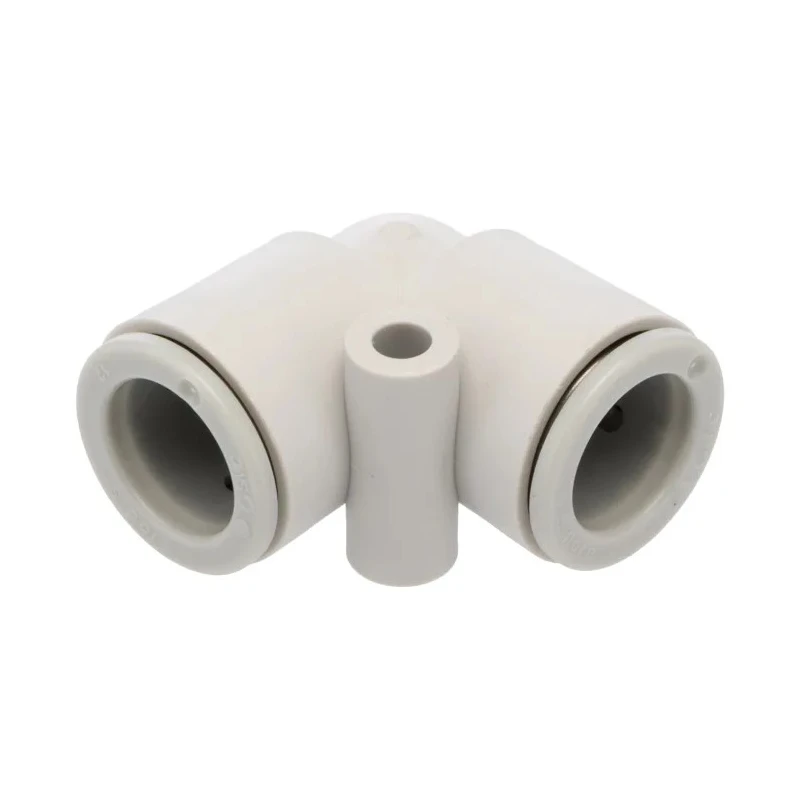

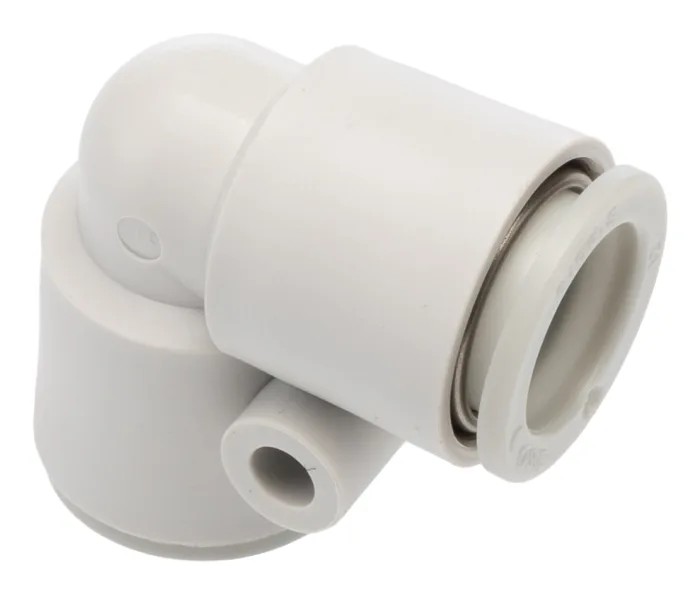

SMC Polybutylene Terephthalate Pneumatic Union Elbow Fitting Push In 12 mm x 10 mm, 10 bar Max Pressure KQ2L12-00A
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | SMC |
| Material | Polybutylene Terephthalate |
| Maximum Operating Pressure | 10 bar |
| Model | KQ2L12-00A |
| Series | KQ2 |
| Maximum Operating Temperature | 60°C |
| Sub Type | Union Elbow |
| Minimum Operating Temperature | -5°C |
| Standards/Approvals | JIS B0203, JIS B0205 |
| Connection Size A | Push In 12 mm |
| Connection Size B | Push In 10 mm |
| SMC KQ Series, Tube-to-Tube Connection StyleBrand | SMC |
Key Features
- Constructed from polybutylene terephthalate, providing chemical resistance and lightweight design.
- Rated for maximum operating pressure of 10 bar for reliable pneumatic system performance.
- Suitable operating temperature range from -5°C to 60°C for varied ambient conditions.
- Conforms to JIS B0203 and JIS B0205 standards ensuring dimensional compatibility.
- Push-in style connector enables swift tube installation and replacement reducing downtime.
- Ideal for pneumatic control lines in automated assembly and manufacturing equipment.
- Commonly used in air distribution systems and compressed air actuators in workshops.
- Recommended to avoid harsh solvents for sealing longevity and routine inspection for debris at connections.
Product Description
SMC KQ2L12-00A is a polybutylene terephthalate pneumatic union elbow fitting designed for push-in connections of 12 mm and 10 mm tubing sizes. It supports a maximum operating pressure of 10 bar and is rated for continuous use in temperature ranges from -5°C up to 60°C, making it suitable for a wide variety of pneumatic control applications.
This fitting is lightweight and chemically resistant due to its polybutylene terephthalate body construction. Its push-to-connect design simplifies assembly processes and maintenance, allowing quick replacement or rearrangement of pneumatic tubing lines without specialized tools. The component conforms to JIS B0203 and JIS B0205 standards, ensuring dimensional and functional compatibility within automated and industrial mechanical systems.
Typical use cases include pneumatic control lines used in automated assembly stations, air distribution in electronic manufacturing equipment, compressed air actuators in mechanical workshops, and signal air tubing in electrical control panels. The fitting is optimized for environments where moderate thermal tolerance and mechanical reliability are essential.
Maintenance recommendations advise routine inspection for debris at connection points and avoidance of harsh chemical solvents that could degrade polybutylene terephthalate materials to maintain a reliable seal over service life.
Polybutylene terephthalate construction offers chemical resistance and lightweight properties. Rated maximum operating pressure of 10 bar ensures robust pneumatic system tolerance. Operating temperature between -5°C and 60°C allows usage in typical ambient and controlled environments.
Conforms to JIS B0203 and JIS B0205 standards for dimension and interface interchangeability. Push-in connection enables quick disassembly and minimal downtime in pneumatic tubing installation. Utilized in control lines, air distribution, actuators, and signal air tubing for industrial automation and manufacturing.
Requires routine visual inspection and careful solvent use to prolong sealing integrity. It suits industrial, manufacturing, laboratory, and mechanical pneumatic systems requiring durable and easy-to-install tube connectors.
Explore EnvMart's range of Pneumatic Fittings and connectors for compatible system components and enhanced assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic union elbow fitting is 10 bar.
It can operate within a temperature range of -5°C to 60°C.
This fitting is constructed from polybutylene terephthalate, which provides chemical resistance and a lightweight design.
It conforms to JIS B0203 and JIS B0205 standards, ensuring dimensional compatibility.
This model has push-in connection sizes of 12 mm and 10 mm.
The push-in design allows for quick tube installation and replacement, reducing downtime during maintenance.
The lightweight design facilitates easier handling and installation in various pneumatic applications.
Yes, it is suitable for use in automated assembly and manufacturing equipment due to its design and compatibility.
It utilizes a tube-to-tube connection style, specifically designed for push-in applications.
The country of origin for this fitting is Singapore.
