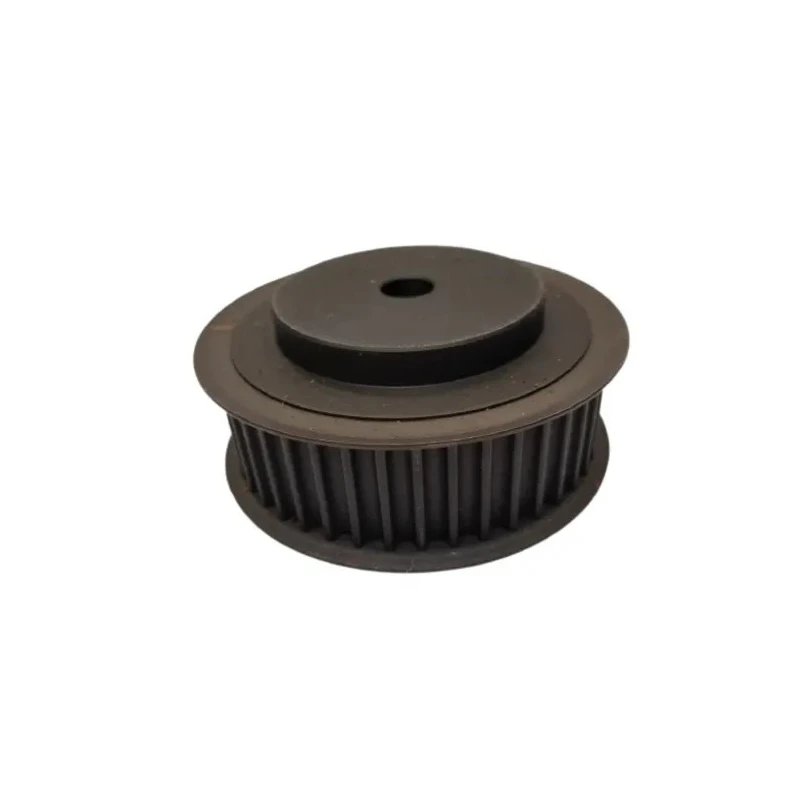

OPTIBELT Timing Belt Pulley Steel 85 mm Belt Width 14 mm Pitch 36 Teeth 3614M85
Specifications
| Country of Origin | India |
|---|---|
| Brand | OPTIBELT |
| Material | Steel |
| Model | 3614M85 |
| Outside diameter | 157.58mm |
| Number of Teeth | 36 |
| Bore Diameter | 70mm |
| Flange Diameter | 168mm |
| Pitch | 14mm |
| Bore Type | Pilot Bore |
| Pitch Circle Diameter | 160.43mm |
| Acceptable Belt Width | 85mm |
Key Features
- Manufactured from high strength steel for durability.
- Designed for use with HTD timing belts of 14 mm pitch.
- Features 36 teeth to ensure positive synchronous power transmission.
- Flanged design to securely hold the belt in place.
- Acceptable belt width of 85 mm suitable for various industrial setups.
- Finished bore diameter maximum 70 mm for plain boring applications.
- Outside diameter measures approximately 157.58 mm for compatibility.
- Pitch circle diameter is 160.43 mm to match belt profile.
Product Description
OPTIBELT 3614M85 timing belt pulley is a precision-engineered component constructed from high strength steel designed to meet the demanding requirements of industrial mechanical power transmission applications. This timing belt pulley has a robust flanged design, providing secure alignment and efficient power transfer in machinery that utilizes HTD profile belts with a 14 mm pitch.
The pulley features 36 teeth, ensuring accurate synchronous drive performance and reducing the risk of belt slippage. It supports an acceptable belt width of 85 mm, making it compatible with a range of HTD belts of the same profile and pitch. The pitch circle diameter measures 160.43 mm, aligning precisely with belt specifications to optimize mechanical efficiency.
The finished bore diameter has a maximum of 70 mm, suitable for plain boring metric profile 14M applications with a pilot bore type for enhanced mounting stability. The outside diameter of 157.58 mm complements the pitch circle diameter to maintain balanced operation within power transmission systems.
This timing belt pulley is engineered for reliability and durability, suitable for use in industrial, manufacturing, mechanical, and fluid power applications where precise belt engagement is critical. It enables the efficient transmission of mechanical power between rotating shafts, reducing wear and increasing equipment lifespan.
Manufactured from high strength steel to withstand industrial loads. Flanged design enhances belt retention during operation. Supports 14 mm pitch HTD belts with 36 teeth for synchronized motion. Acceptable belt width of 85 mm provides versatility in belt selection.
Finished bore diameter of up to 70 mm with pilot bore for secure mounting. Pitch circle diameter of 160.43 mm aligns with belt profile standards. Outside diameter of 157.58 mm balances rotational dynamics. Ideal for applications in Mechanical Power Transmission and industrial machinery.
Enables efficient and reliable operation in synchronous belt drive systems. Explore the full range of timing belt pulleys on EnvMart to find compatible components designed for diverse industrial power transmission needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The outside diameter of this timing belt pulley is approximately 157.58 mm.
This model features 36 teeth, ensuring accurate synchronous drive performance.
It is designed for use with HTD timing belts that have a pitch of 14 mm.
The maximum finished bore diameter for this pulley is 70 mm, suitable for plain boring applications.
The pitch circle diameter measures 160.43 mm, aligning with belt profile specifications.
It features a pilot bore type for enhanced mounting stability.
This pulley is manufactured from high strength steel, designed for durability in industrial applications.
The flange diameter of this pulley is 168 mm.
The country of origin for this product is India.
It is suitable for use in mechanical power transmission and industrial machinery applications where precise belt engagement is critical.
The flanged design enhances belt retention during operation, ensuring secure alignment and efficient power transfer.
