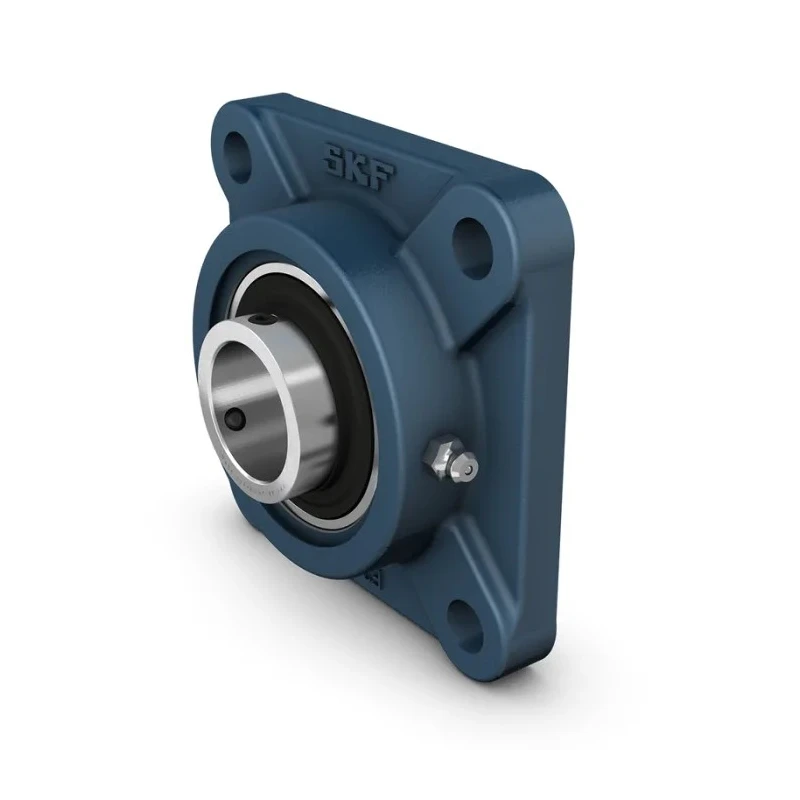

SKF Flanged Bearing Unit, 4 Hole Cylindrical Bore 35 mm ID, Steel Housing, 3200 rpm Limiting Speed FY 35 TR
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | SKF |
| Material | Steel |
| Length | 118mm |
| Model | FY 35 TR |
| Depth | 46.4mm |
| Width | 46.4mm |
| Series | FY |
| Inside Diameter | 35mm |
| Limiting Speed | 3200rpm |
| End Type | Open |
| Bore Type | Cylindrical |
| Static Load Rating | 15.3kN |
| Dynamic Load Rating | 25.5kN |
| Mount Hole Size | 14 mm |
| Mount Hole Centre-to-Centre | 92mm |
| Number of Mount Holes | 4 |
| Locking Type | Set Screw |
Key Features
- Constructed from durable steel with a square housing shape.
- Features 4 mounting holes with 14 mm diameter for secure attachment.
- Includes a set screw locking type for firm shaft fixation.
- Supports rotational speeds up to 3200 rpm for fast-moving applications.
- Static and dynamic load ratings of 15.3 kN and 25.5 kN respectively for high load capacity.
- Includes NBR seals to protect against dust and moisture intrusion.
- Pre-lubricated with a relubrication hole for easy maintenance.
- Open end type with 92 mm center-to-center mount hole spacing.
Product Description
SKF FY 35 TR flanged bearing unit with 35 mm inside diameter, made of steel, rated for up to 3200 rpm limiting speed. This bearing unit is engineered for industrial applications requiring reliable rotational support and ease of installation.
The square housing features four mounting holes each 14 mm in diameter, spaced 92 mm center-to-center, providing robust and secure attachment to machinery. The cylindrical bore design and set screw locking mechanism ensure a firm and precise grip on shafts, minimizing slippage during operation.
This product includes NBR seals on all sides to protect the bearing from dust and moisture, thereby enhancing durability and reducing corrosion risks. Pre-lubricated from the factory, this bearing unit includes a relubrication hole to simplify future maintenance and minimize downtime.
With static and dynamic load ratings of 15.3 kN and 25.5 kN, respectively, it is suitable for supporting substantial loads in demanding environments such as small parts manufacturing, construction industry processes, and material handling systems.
Durable steel construction with square housing. Four mounting holes for strong fixture. Set screw locking type for secure shaft holding. 3200 rpm maximum rotational speed. Effective sealing with NBR seals. Factory pre-lubricated with relubrication capability.
Open end design for versatility. Mount hole center spacing of 92 mm. Suitable for industrial manufacturing and construction.
SKF bearing units are trusted in industrial, manufacturing, construction, and material processing contexts for their quality and reliability. Explore our wide range of SKF bearings and housing units to find the ideal component for your machinery on EnvMart.
Explore more products in our Mechanical, Fluid Power & Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inside diameter of this bearing unit is 35 mm.
It supports a maximum rotational speed of 3200 rpm.
The static load rating is 15.3 kN and the dynamic load rating is 25.5 kN.
This model features a set screw locking type for secure shaft fixation.
The dimensions are 118 mm in length, 46.4 mm in depth, and 46.4 mm in width.
It has four mounting holes, each with a diameter of 14 mm.
The center-to-center mount hole spacing is 92 mm.
The SKF FY 35 TR is constructed from steel.
Yes, it includes NBR seals to protect against dust and moisture intrusion.
Yes, it is pre-lubricated from the factory and includes a relubrication hole for maintenance.
This model features a cylindrical bore type.
It is manufactured in Italy.
