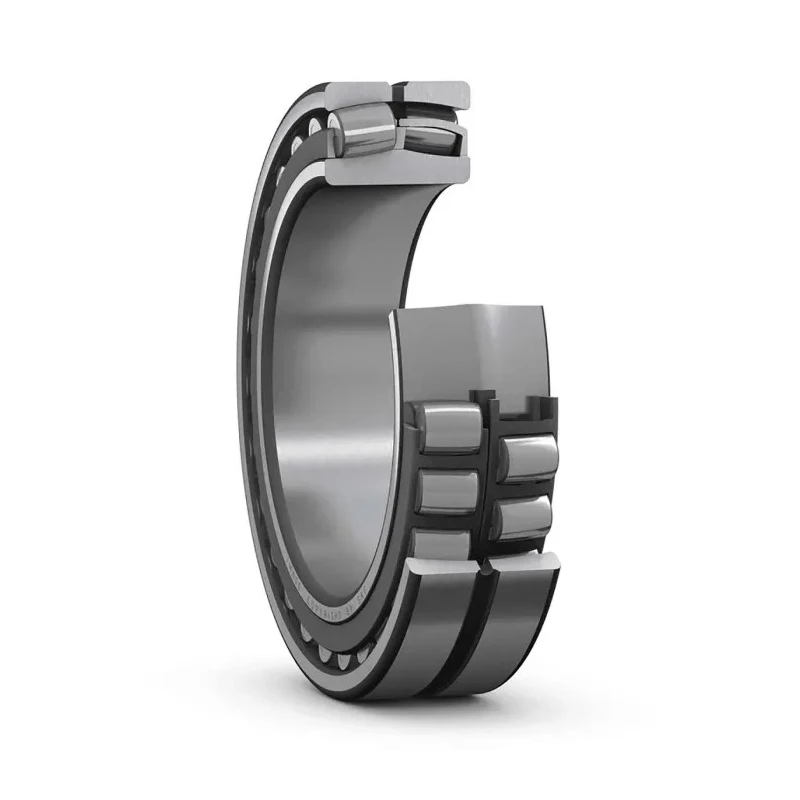

SKF Spherical Roller Bearing 200 mm Inside Diameter 280 mm Outside Diameter Steel Cage Open End Type Series 23940 CC/W33

SKF 23940 CC/W33 Spherical Roller Bearing features a 200 mm inside diameter and 280 mm outside diameter with a 60 mm race width, constructed with a steel cage and an open end type design. This bearing is engineered to support challenging radial and axial loads in demanding industrial environments.

The two rows of symmetrical rollers run on a common sphered outer ring raceway, allowing the bearing to accommodate high radial stresses. The inner ring features twin tapered bores aligned at an angle to withstand axial shocks and misalignment effectively. Crafted from high-quality steel, the bearing ensures durability, oxidation resistance, and a long service lifespan.

This bearing supports a dynamic load rating of 651 kN and a static load rating of 1040 kN, capable of handling heavy loads at limiting speeds up to 2400 rpm. Manufactured in Sweden, it complies with international ANSI/ESD S20.20:2014 and European BS EN 61340-5-1:2007 electrostatic standards, ensuring suitability around sensitive electronic machinery. Additionally, it holds RoHS certification for minimal hazardous substances.

The design enables self-alignment over time, easing installation and reducing maintenance overhead for industrial users. Common applications include heavy-duty gearboxes, agricultural machinery, and assembly lines where robust and reliable bearing performance is essential.

This bearing features a tapered bore and steel cage construction for durability. It has an open end design with a race width of 60 mm and two rows of symmetrical rollers. The bearing supports a dynamic load rating of 651 kN and a static load rating of 1040 kN.

It operates reliably at limiting speeds up to 2400 rpm. Manufactured in Sweden, the bearing meets international electrostatic control and RoHS standards. Twin tapered bore helps manage misalignment and axial shock loads effectively.

Ideal for use in heavy-duty gearboxes, agricultural machinery, and assembly line equipment. Designed to self-align over time, reducing installation and maintenance requirements. Explore EnvMart's selection of SKF bearings and find high-quality components for demanding industrial applications.
