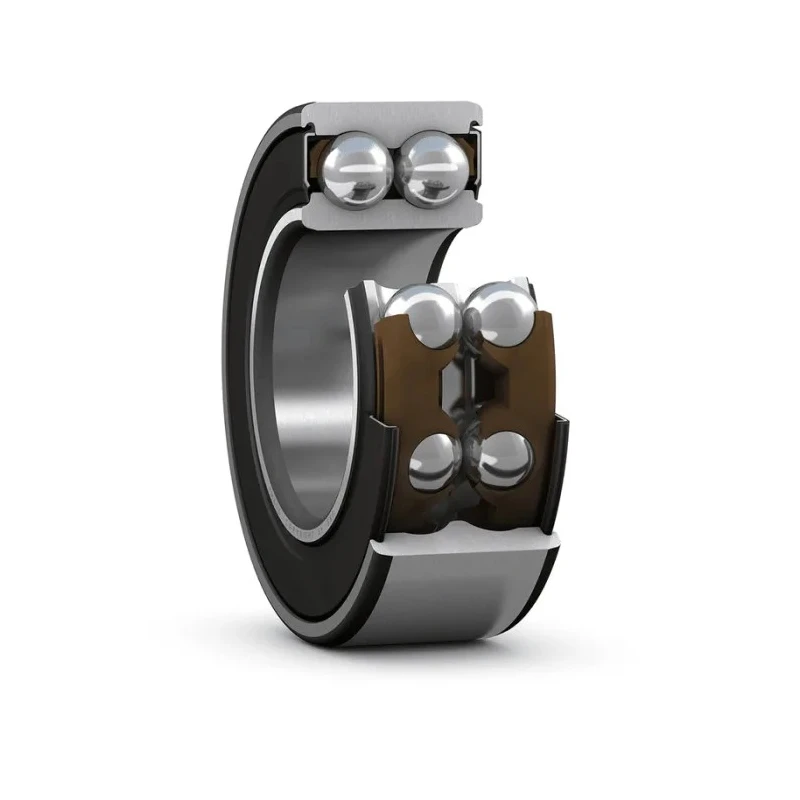

SKF 2 Row Angular Contact Ball Bearing 60 mm ID, 130 mm OD, 54 mm Race Width 3312 A-2Z/C3MT33

SKF 3312 A-2Z/C3MT33 is a double row angular contact Ball Bearing featuring a precise 60 mm inside diameter, 130 mm outside diameter, and a 54 mm race width. This bearing is engineered for applications demanding combined radial and axial load capabilities with high reliability and endurance.

Its double row design, with inner and outer ring raceways displaced along the bearing axis, enables simultaneous support of radial and axial forces, making it suitable for complex load scenarios in industrial machinery and fluid power systems. The 30° contact angle enhances axial load capacity, which is crucial for applications involving thrust and radial loading.

The bearing's steel balls operate within sheet metal cages, while shielded ends protect the internal components from dust and debris, extending service life. Its internal clearance rating of C3 accounts for thermal expansions and load variations.

With static and dynamic load ratings of 95 kN and 127 kN respectively, and a limiting speed of 4500 rpm, this bearing ensures robust performance in high-speed rotating machinery. The bore type is parallel, facilitating straightforward installation and stable operation.

Manufactured in Germany, this SKF bearing is ideal for use in mechanical, construction, manufacturing, and fluid power equipment where reliable, high-performance rotary bearings are essential.

Double row angular contact design accommodates combined radial and axial loads effectively. Manufactured with steel balls and sheet metal cage for durability. Features shielded ends to protect against contaminants. 30° contact angle increases axial load carrying capacity.

Internal clearance classified as C3 for enhanced tolerance. Limiting rotational speed of 4500 rpm suitable for high-speed applications. Static and dynamic load ratings provide strong load support. Parallel bore design for easy mounting and alignment.

Suitable for industrial, manufacturing, and fluid power sectors. Explore a wide range of rotary bearings and housing units at EnvMart for your mechanical and industrial requirements.
