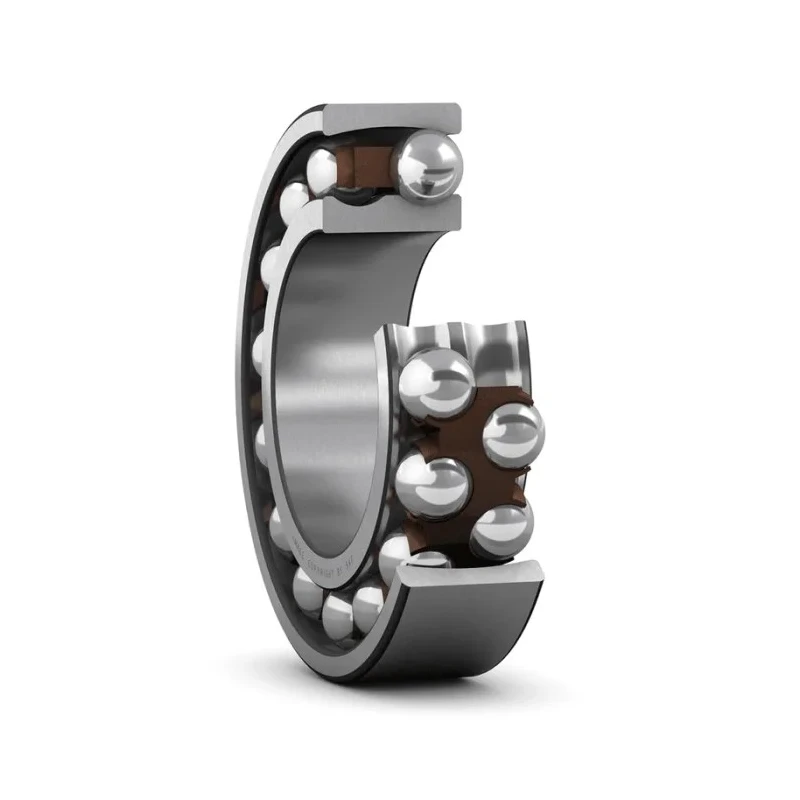

SKF Self-Aligning 2 Row Ball Bearing 65 mm Inside Diameter 140 mm Outside Diameter Sheet Metal Cage Steel Balls Open 2313/C3

SKF 2313/C3 is a self-aligning 2 row ball bearing featuring a 65 mm inside diameter (ID), 140 mm outside diameter (OD), and a 48 mm race width. It utilizes steel balls and a sheet metal cage that provides excellent durability and performance in demanding industrial applications. The open-end design allows for easy lubrication and maintenance.

This bearing is designed to tolerate angular misalignment caused by shaft deflection due to its common sphered raceway in the outer ring and two uninterrupted raceway grooves in the inner ring. The internal clearance is C3, providing optimal performance under varying operational conditions. It supports a limiting speed of 7000 rpm, suitable for many industrial machinery uses.

The bearing's static load rating is 32.5 kN and its dynamic load rating is 95.6 kN, allowing it to handle significant radial loads with two rows of balls enhancing the load capacity. The bore type is parallel, which facilitates straightforward installation on the shaft. This product is manufactured in Malaysia, assuring quality standards from SKF, a renowned bearing brand.

Typical industrial applications include use in machinery requiring high reliability under shaft misalignments such as agricultural equipment, conveyors, HVAC systems, and manufacturing machinery. The SKF 2313/C3 bearing ensures smooth operation, extended bearing life, and reduced maintenance cycles.

Features a sheet metal cage and steel balls for durability. Open end type bearing suitable for self-aligning applications. Designed for limiting speed of up to 7000 rpm. Provides an internal clearance of C3 for optimal bearing performance.

Has a static load rating of 32.5 kN and dynamic load rating of 95.6 kN. Includes two rows of balls for enhanced load capacity. Boasts a parallel bore type for easy mounting. Manufactured with a common sphered outer raceway for angular misalignment tolerance.
