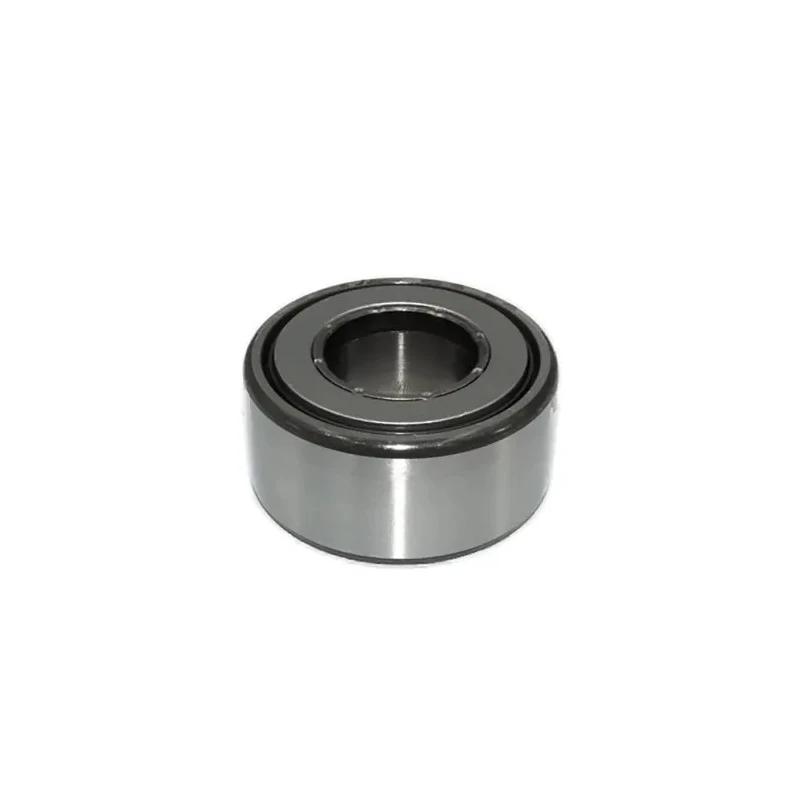

INA Yoke Cam Follower, 15mm Bore Diameter, 35mm Roller Diameter, Static Load 14.3kN, Dynamic Load 9.7kN NATR15-X-PP-A

INA NATR15-X-PP-A Yoke Cam Follower is engineered for demanding mechanical environments requiring reliable and robust cam follower components. This model features a 15mm bore diameter and a 35mm roller diameter, providing excellent compatibility with standard shafts and mating surfaces.

The yoke and stud-type roller design includes thick-walled outer rings with crowned external surfaces that increase durability and lifespan under high radial loads. The cam follower supports a static load rating of 14.3kN and a dynamic load rating of 9.7kN, making it suitable for various industrial machinery operations.

Designed to tolerate axial loads arising from minor misalignments, skewed running, or temporary impacts, the NATR15-X-PP-A provides versatility in challenging operating conditions. It comes sealed on both sides to prevent contamination and ensure smooth rotation over extended periods.

Unlike bearing units mounted in housing bores, this cam follower is supported on flat mating tracks and can be adjusted using an eccentric collar. This adjustment feature accommodates larger manufacturing tolerances in associated constructions.

Industries such as manufacturing, material handling, automation, and mechanical assembly benefit from the reliability and performance of this INA cam follower. Its robust construction and high load ratings make it a dependable choice for rotary bearing applications requiring long service life and operational stability.

Constructed with a yoke type roller bearing track design. Features thick-walled outer rings with crowned outside surfaces for durability. Supports static load rating of 14.3kN and dynamic load rating of 9.7kN. Tolerates axial loads caused by misalignment and impact running.

Available sealed on both sides to prevent contamination. Not mounted in housing bore but supported on flat mating tracks. Adjustment via eccentric collar allows for larger manufacturing tolerances. Ideal for industrial mechanical, manufacturing, and automation applications.
