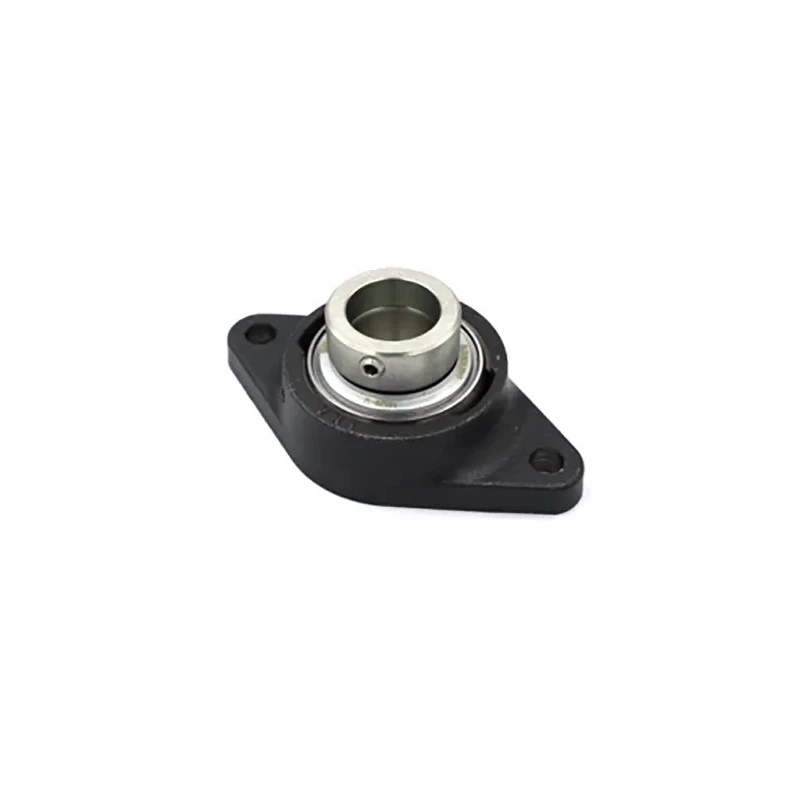

INA Bearing Unit Cast Iron Housing 40 mm ID TCJT40-XL-N

Free Delivery in India | Lowest Global Shipping Charges

INA Bearing Unit Cast Iron Housing 40 mm ID TCJT40-XL-N



Category Mechanical Bearings Brand INA Condition New

Specifications

Country of Origin	India
Brand	INA
Material	Cast Iron
Length	105mm
Model	TCJT40-XL-N
Depth	172mm
Width	59.1mm
Inside Diameter	40mm
Better World Claim	Extended Product Life, Saves Energy
Mount Hole Size	14 mm
Mount Hole Centre-to-Centre	143.5mm

Key Features

The bearing unit has a length of 105 mm, width of 59.1 mm, and depth of 172 mm.
The mount hole size is 14 mm with centre-to-centre spacing of 143.5 mm for secure installation.
The cast iron housing ensures robustness and extended product life.
The spherical outside surface of the bearing outer ring compensates for shaft misalignment.
The unit is suitable as a locating bearing and for non-locating applications under low load and speed.
Easy screw-mounting on adjacent constructions allows flexible use.
Complies with no specific standards but offers energy-saving benefits as a Better World product.

Product Description

INA TCJT40-XL-N Bearing Unit with a 40 mm inside diameter is manufactured using cast iron for durable housing. This product combines INA radial insert ball bearings fitted into cast iron housings, designed for ready-to-fit applications in machinery and mechanical systems.

The bearing unit measures 105 mm length, 59.1 mm width, and 172 mm depth, making it suitable for various industrial and manufacturing environments requiring steady rotary support. Mount hole size is 14 mm with center-to-center hole spacing of 143.5 mm, enabling secure and reliable screw mounting on adjacent constructions.

Due to the spherical outside surface of the bearing outer ring and a concave housing bore, the unit compensates for static angular misalignment of the shaft, enhancing operational reliability in demanding applications. It is typically used as a locating bearing but can also serve as a non-locating bearing under low load and speed conditions.

The cast iron material ensures high robustness and longevity, supporting extended product life and energy savings, aligning with sustainability goals under the Better World claim. This bearing unit is not certified under specific standards but is engineered for superior mechanical performance in industrial, manufacturing, HVAC, and fluid power systems.

The bearing unit features a robust cast iron housing. Dimensions: 105 mm length, 59.1 mm width, 172 mm depth. Mount hole size of 14 mm with 143.5 mm centre-to-centre spacing. Compensates for static angular shaft misalignment for reliable operation.

Suitable for locating and low-load non-locating bearing applications. Ready-to-fit, screw-mounted design for flexible installation. Supports sustainability through extended life and energy savings.

This INA bearing unit is excellent for applications in mechanical systems, industrial machinery, fluid power, construction, and general manufacturing where robust and reliable rotary bearing support is essential. The cast iron housing provides strength and durability for a variety of environments.
