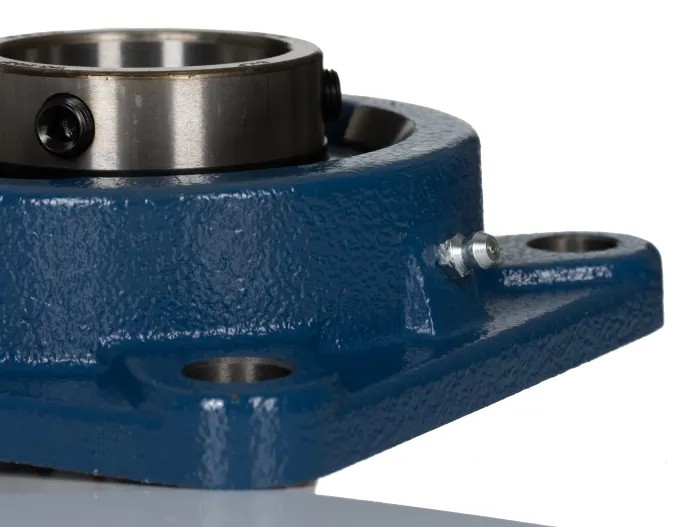

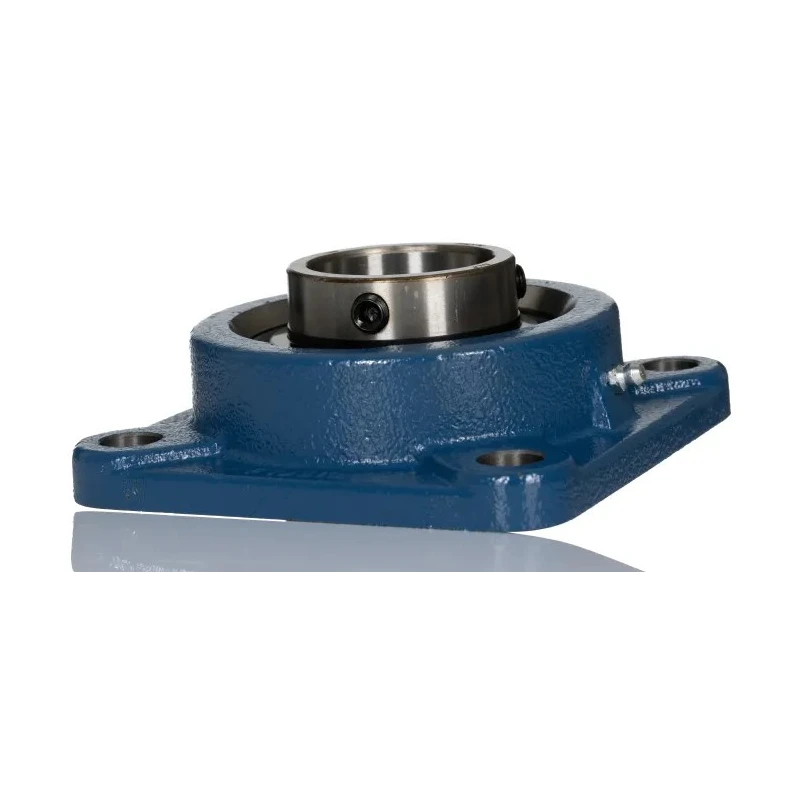

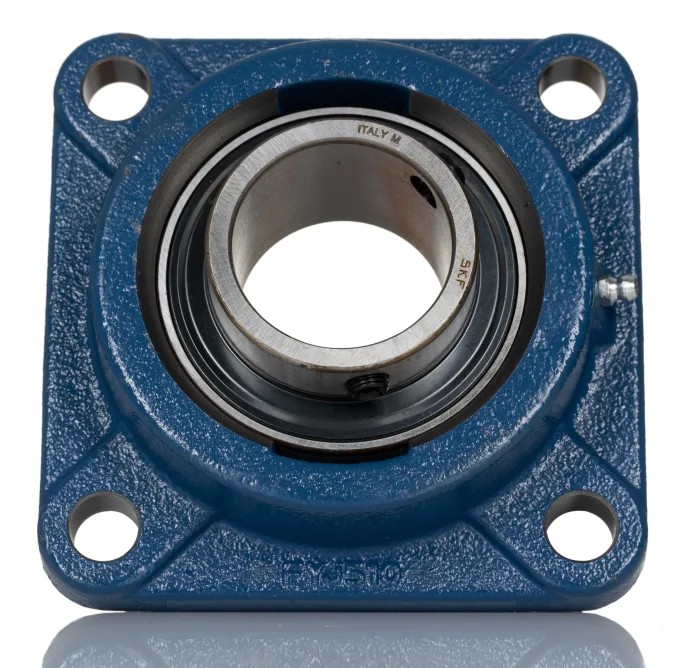

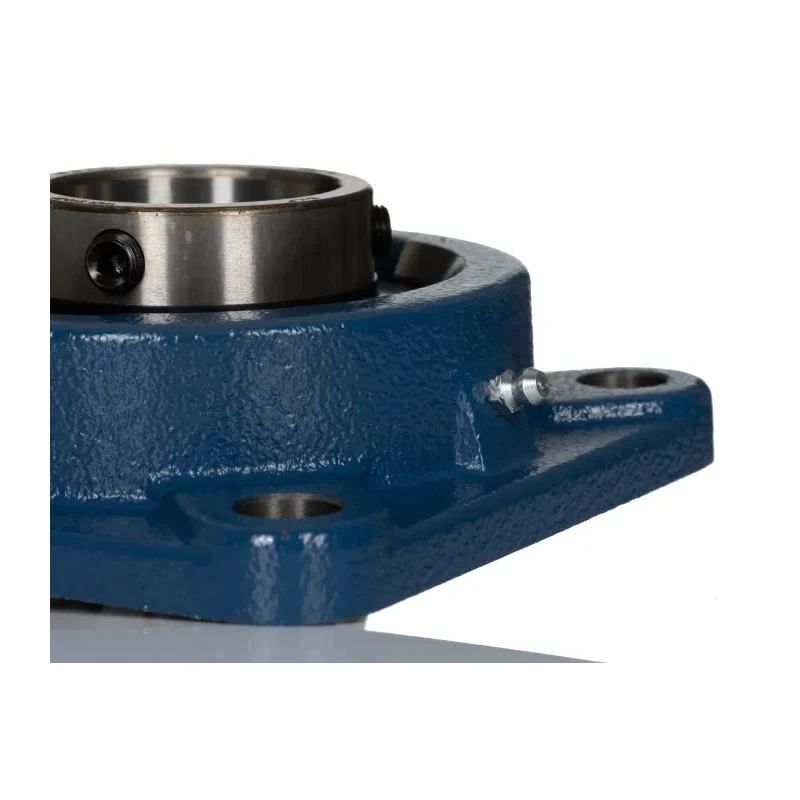

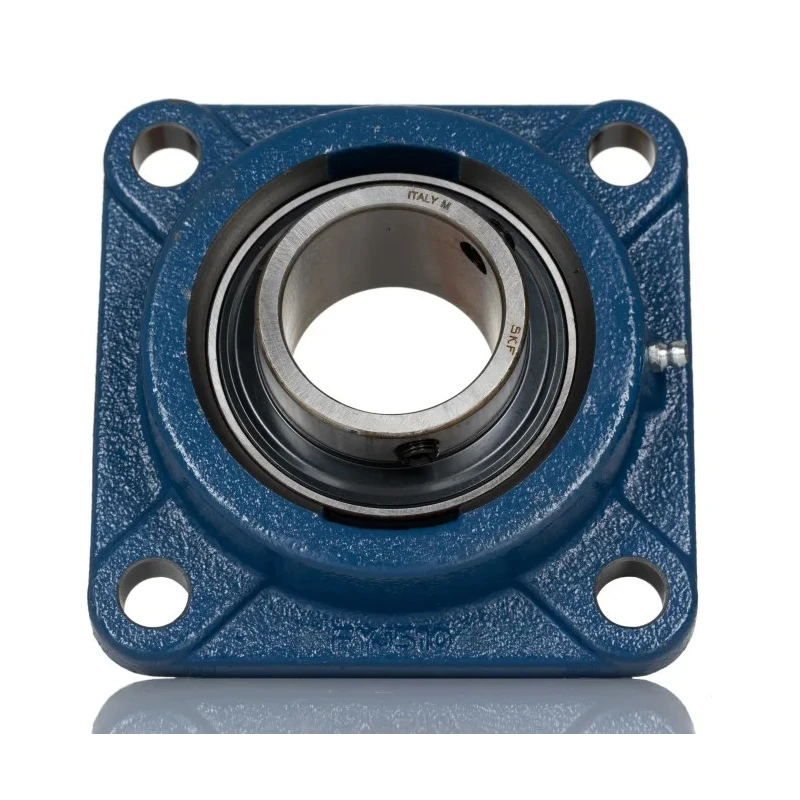

SKF Flanged Bearing Unit Square Housing 50 mm Inside Diameter Cast Iron Housing FY 50 FM

Free Delivery in India | Lowest Global Shipping Charges

SKF Flanged Bearing Unit Square Housing 50 mm Inside Diameter Cast Iron Housing FY 50 FM



Category Mechanical, Fluid Power & Tools Brand SKF Condition New

Specifications

Country of Origin	Italy
Brand	SKF
Material	Cast Iron
Length	143mm
Model	FY 50 FM
Depth	60.7mm
Width	60.7mm
Series	FY
Inside Diameter	50mm
Limiting Speed	4000rpm
End Type	Open
Bore Type	Cylindrical
Static Load Rating	23.2kN
Dynamic Load Rating	35.1kN
Mount Hole Size	18.01 mm
Mount Hole Centre-to-Centre	111mm
Number of Mount Holes	4
Locking Type	Eccentric Locking Collar

Key Features

The unit features a square housing type for stable mounting.
Four mounting holes with 18.01 mm diameter provide secure attachment.
Eccentric locking collar ensures a tight and reliable fit on the shaft.
The flange bearing supports a limiting speed up to 4000 rpm for fast rotating equipment.
Static load rating of 23.2 kN and dynamic load rating of 35.1 kN ensure durability under load.
Open end type allows easy installation and maintenance of the bearing.
Made in Italy, this bearing unit is suitable for industrial, construction, and automated assembly applications.
Compact dimensions of 143 mm length, 60.7 mm width, and 60.7 mm depth optimize installation space.

Product Description

The SKF FY 50 FM flanged bearing unit features a 50 mm inside diameter cylindrical bore with a durable cast iron square housing. This flange bearing unit is constructed to withstand harsh industrial environments, providing reliable operation in material handling systems, automated assembly lines, warehouses, and lifting equipment.

The bearing unit includes an eccentric locking collar that enables secure mounting for extended periods without loosening. Its factory lubrication ensures convenience and reduces maintenance frequency. With a maximum limiting speed of 4000 rpm, this bearing unit accommodates fast rotating shafts efficiently and maintains operational stability.

Dimensions measure 143 mm in length, 60.7 mm width and depth, with four mounting holes sized 18.01 mm diameter spaced 111 mm center-to-center, allowing firm installation on machine frames or walls. The open end design simplifies bearing access for inspection or replacement.

Its static load rating of 23.2 kN and dynamic load rating of 35.1 kN confirm suitability for handling moderate to heavy radial and axial loads encountered in industrial machinery. Crafted in Italy, the product assures quality and reliability.

The square housing provides an excellent mounting foundation for diverse applications. Cast iron construction enhances resistance to vibration and impact. Eccentric locking collar secures the bearing firmly on the shaft.

High limiting speed rating supports modern high-speed machinery. Open end facilitates easier maintenance cycles. Four bolt holes ensure versatile and stable attachment options. Factory lubricated insert bearing reduces upkeep and downtime.

Compact size optimizes space within mechanical assemblies.

SKF flanged bearing units are widely used in mechanical machinery spares for industrial tools and equipment, including material handling, conveyor systems, and heavy-duty machinery requiring dependable rotary bearing solutions.
