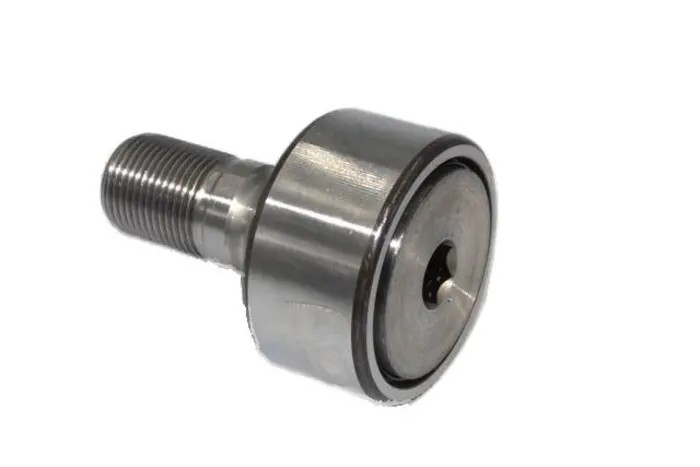

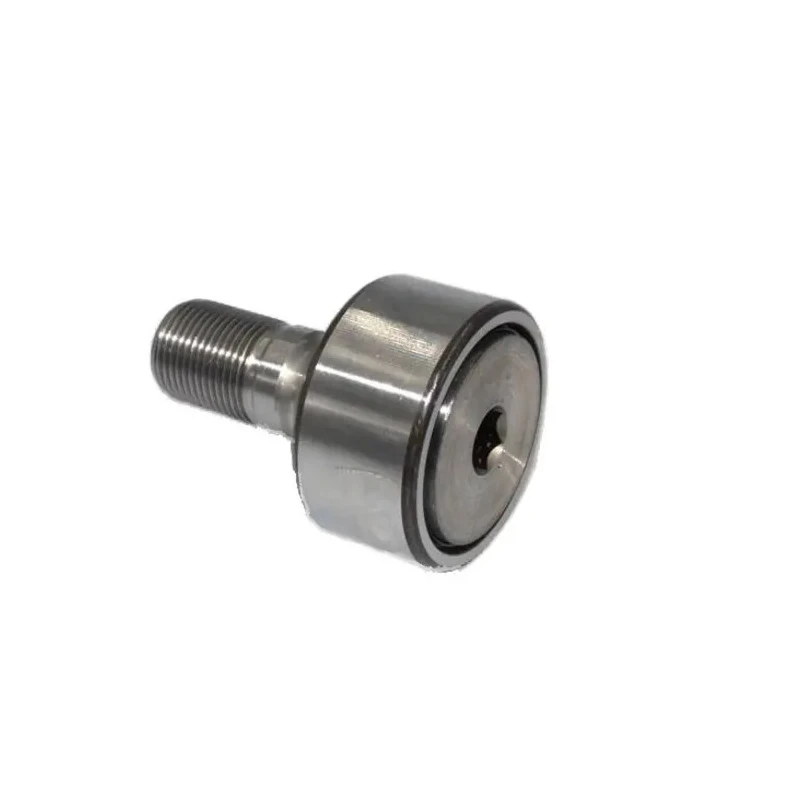

INA Stud Cam Follower Bore Diameter 18mm, Roller Diameter 40mm, Static Load 15.8kN, Dynamic Load 10.9kN KR40-X-PP-A

INA KR40-X-PP-A Stud Cam Follower with 18mm bore diameter and 40mm roller diameter is designed for demanding industrial and mechanical applications requiring reliable rotary bearing support.

This stud type cam follower features thick-walled outer rings with a crowned outside surface, enhancing durability under heavy radial and axial loads. The bearing supports static loads up to 15.8kN and dynamic loads up to 10.9kN, making it suitable for machinery exposed to high mechanical stresses.

The cam follower is constructed with axial guidance on the outer ring and is sealed on both sides to resist contamination and reduce maintenance needs. It is mounted on a stud with fixing thread and a mounting aid facilitating easy installation on flat mating tracks, without the need for housing bores.

This bearing type is ideal for applications in industrial manufacturing, mechanical machinery, conveyor systems, and automation equipment where precision and robustness are critical. It tolerates small misalignments, skewed running, and temporary impact loads effectively, ensuring operational reliability.

Stud type roller bearing for shaft or stud mounting. Thick-walled, crowned outer rings for load distribution. Static load rating 15.8kN, dynamic load rating 10.9kN. Sealed configuration providing protection from contaminants.

Supports axial and radial loads with axial guidance. Enables adjustment to mating tracks via eccentric collar design. Suitable for industrial, manufacturing, and mechanical applications. Corrosion-resistant and maintenance-friendly design.

Not mounted in housing bore; supported on flat mating tracks. Robust solution for cam follower and track roller needs. Explore comprehensive ranges of bearings and mechanical components in the Industrial Tools & Equipment category on EnvMart for optimized machinery performance.
