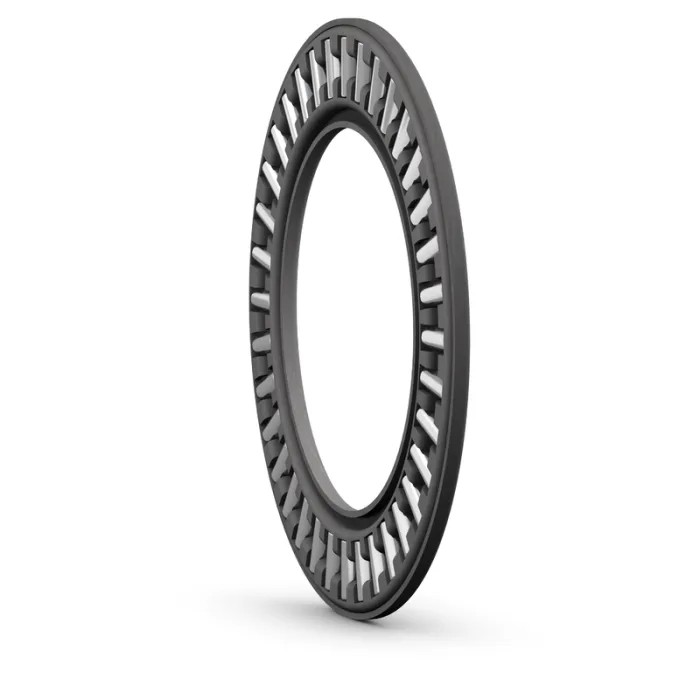

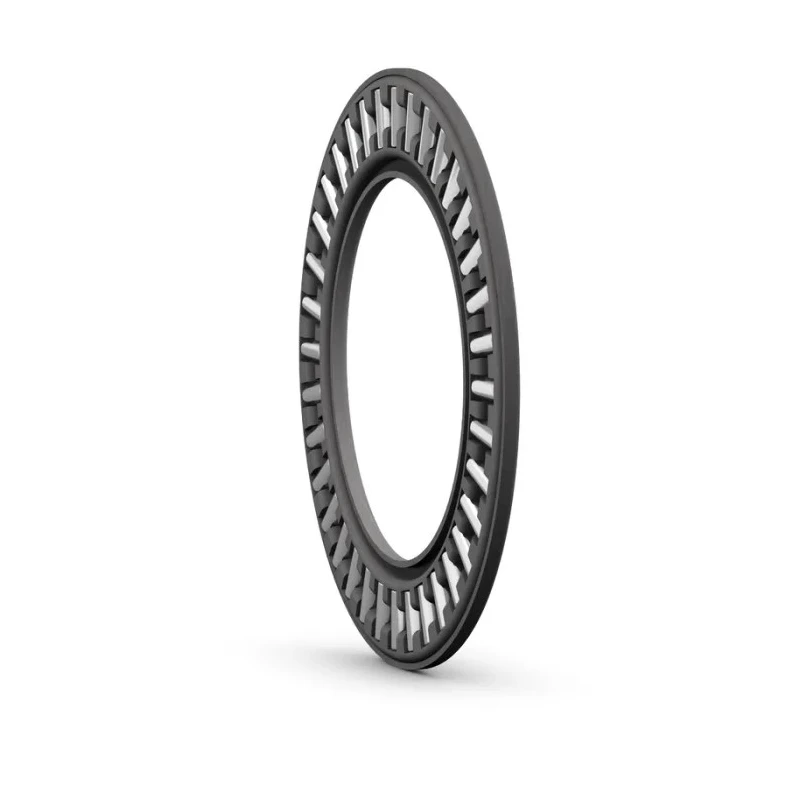

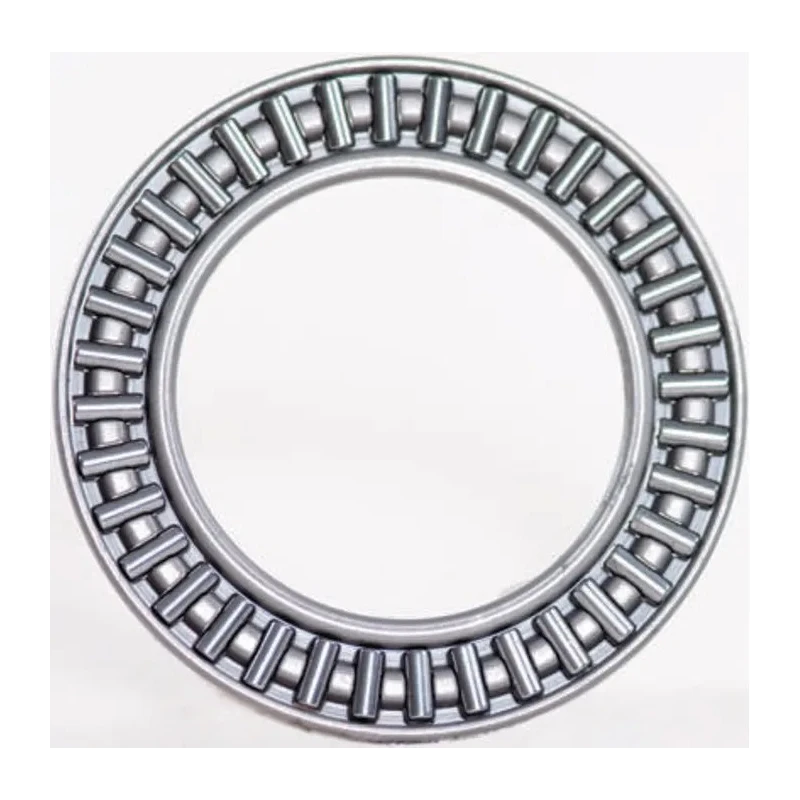

SKF Needle Roller Bearing, 75 mm Inside Diameter, 100 mm Outside Diameter, 4 mm Race Width, Sheet Steel Cage AXK 75100

SKF AXK 75100 is a high-quality needle roller bearing distinguished by its 75 mm inside diameter, 100 mm outside diameter, and 4 mm race width. It features a parallel bore and an open end type configuration, allowing it to be mounted directly onto a shaft without requiring an adapter sleeve. The bearing cage is constructed from sheet steel, combining strength with a lightweight form factor suitable for compact installations.

This single-row needle roller bearing provides exceptional stiffness and support for heavy axial and shock loads. Its rollers are oriented perpendicular to the shaft bore, ensuring efficient handling of thrust loads in applications with limited axial space.

With limiting speeds up to 3400 rpm, and maximum operational speeds of 1100 rpm (grease) and 1600 rpm (oil), this bearing accommodates fairly high rotational speeds while maintaining stability and performance.

Commonly used in demanding industrial sectors such as automatic transmissions and pulp and paper processing, the AXK 75100 bearing excels in environments where compact, robust, and precise axial load bearing components are essential.

This needle roller bearing is manufactured in Germany, reflecting SKF's world-renowned quality standards. It cannot support radial loads and should be employed exclusively for axial thrust applications where adjacent machine faces serve as raceways.

The bearing’s parallel bore design allows easy installation without adapter sleeves. Sheet steel cage offers a durable, lightweight structure. Single row bearing type is optimized for axial loads. Open end bearing supports lubrication access and maintenance.

Rated for max speeds of 1100 rpm with grease and 1600 rpm with oil. Compact size saves installation space in axial directions. Manufactured in Germany ensuring premium quality. Typical uses include transmissions and pulp-paper machinery.

Not designed for any radial load support applications. Explore more precision Roller Bearings and mechanical spares at EnvMart to optimize your industrial and mechanical machinery performance.
