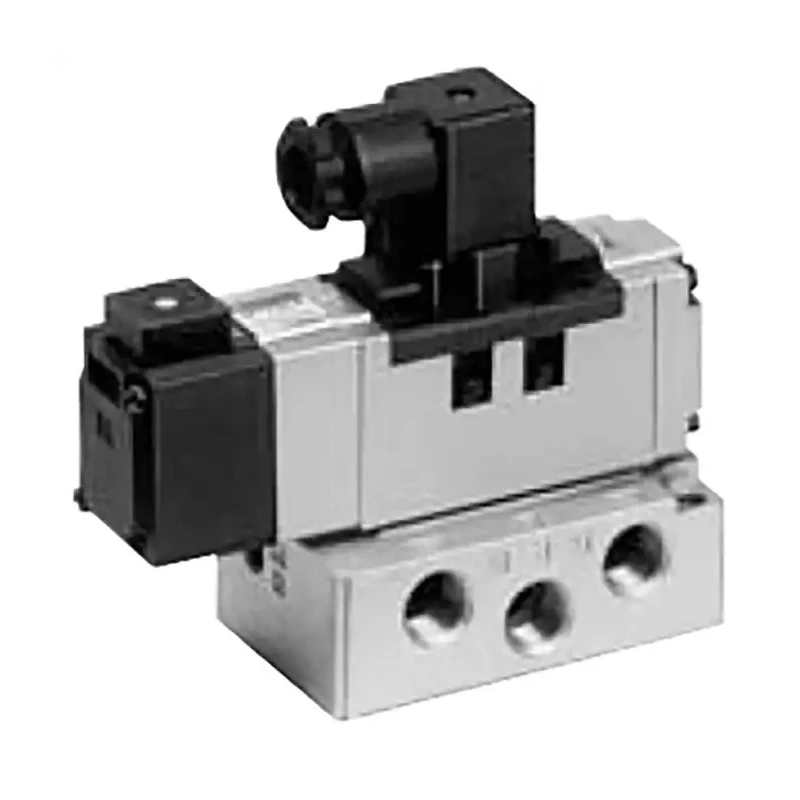

SMC Pneumatic Solenoid Valve Reverse Pressure Pressure Centre Exhaust Double Pilot Check Closed 3 EVS7-6-FG-S-8CVO-Q

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve Reverse Pressure Pressure Centre Exhaust Double Pilot Check Closed 3 EVS7-6-FG-S-8CVO-Q



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Maximum Operating Pressure	1 Mpa
Height	95.5mm
Length	128.5mm
Model	EVS7-6-FG-S-8CVO-Q
Width	38mm
Mount Type	Manifold
Series	EVS
Number Of Ports	5
Maximum Operating Temperature	60°C
Number of Positions	2
Port Size	M5
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid/Spring
Maximum Flow Rate	1200L/min
Standards/Approvals	JIS B8375-1975
Minimum Pilot Pressure	0.1MPa
Valve Function	Reverse Pressure, Pressure Centre, Exhaust, Double Pilot Check, Closed, 3 Position, 2 Position
Electrical Connection Type	DIN Connector
Maximum Pilot Pressure	0.83MPa
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	1.8W

Key Features

The valve features a manifolable mount and uses nitrile rubber (NBR) seals.
It supports a maximum operating pressure of 1 MPa and a maximum pilot pressure of 0.83 MPa.
Designed for air and inert gases, it operates between -10°C and 60°C ambient temperatures.
The valve has five ports with female gender and a port size of M5.
It features a solenoid/spring actuation type with a single solenoid consuming 1.8W power.
Electrical connection is via DIN connector, enabling reliable control.
Valve dimensions are 128.5 mm length, 38 mm width, and 95.5 mm height.
This ISO standard conforming valve offers fast response time with low energy consumption.

Product Description

SMC EVS7-6-FG-S-8CVO-Q Pneumatic Solenoid Valve is engineered for industrial pneumatic systems requiring precise control with features such as reverse pressure and pressure centre functions. This valve combines exhaust, double pilot check, and closed valve functionality in a robust 3-position, 2-port layout. It is designed with a manifold mount interface compliant with ISO standards.

Constructed with nitrile rubber (NBR) seals, the valve offers high resistance to wear and leakage, ensuring reliability in pressured applications up to 1 MPa. Its operating temperature range of -10°C to 60°C makes it suitable for various industrial environments, including manufacturing and automation setups.

The solenoid/spring actuation employs a single solenoid coil that consumes only 1.8 watts of power, contributing to energy efficiency with a quick response time. The valve supports five ports sized M5 with female threads for versatile connectivity. Its electrical connection uses a DIN connector for standardized installation.

With dimensions of 128.5 mm length, 38 mm width, and 95.5 mm height, this compact valve integrates easily into manifold assemblies or pneumatic systems. Standard compliance is assured with JIS B8375-1975 certification, supporting industrial quality and safety needs.

The valve's manifold mounting facilitates straightforward installation in fluid power systems. Nitrile rubber seals provide excellent durability and chemical resistance. Max operating pressure of 1 MPa supports a range of pneumatic applications.

Low solenoid power consumption enhances overall system efficiency. Five ports and DIN electrical connector enable flexible, reliable connectivity. Operating temperature range accommodates diverse industrial environments.

ISO design ensures compatibility with international pneumatic standards.

This product is suitable for pneumatic control in industrial automation, fluid power systems, manufacturing plants, and other technical fields requiring effective valve operation and control. For more pneumatic valve and solenoid valve options, explore the Pneumatic Solenoid Valves category at EnvMart.
