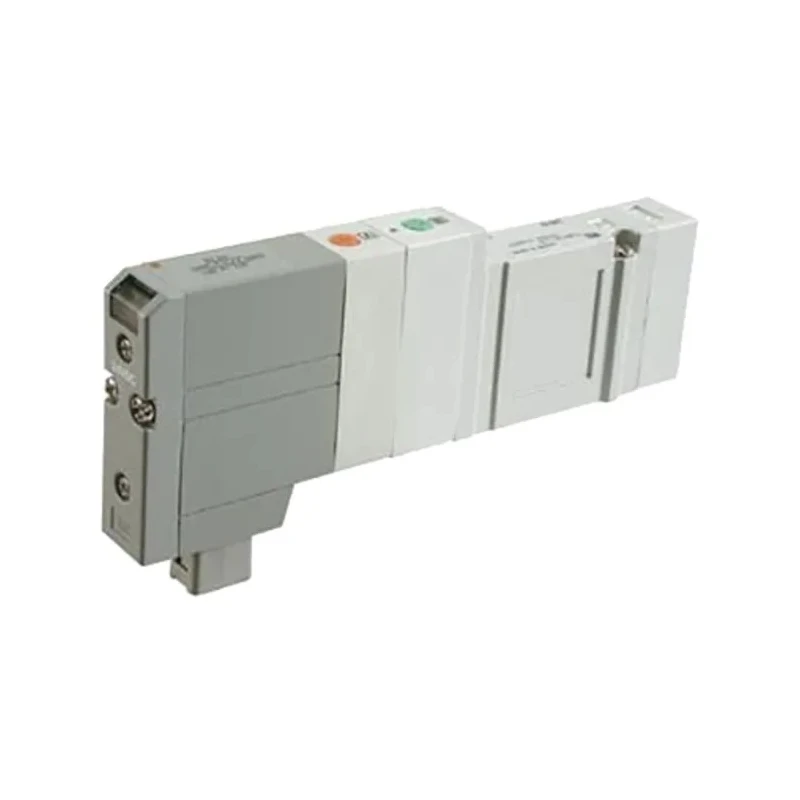

SMC Pneumatic Solenoid Valve 5 Port Plug-in Mount 4/3 NC Double Solenoid 24V dc Die Cast Aluminium SV1000
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 24V dc |
| Brand | SMC |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 0.7 Mpa |
| Height | 92.2mm |
| Length | 135.5mm |
| Model | SV1000 |
| Enclosure | IP67 (based on IEC529) |
| Width | 68.2mm |
| Mount Type | Plug-in |
| Series | SV1000 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 4 |
| Seal Material | Rubber |
| Minimum Operating Temperature | -10°C |
| Operating pressure range | -100kPa to 0.7MPa |
| Actuation Type | Solenoid |
| Fluid | air |
| Standards/Approvals | cULus, CE |
| Minimum Pilot Pressure | 0.15MPa |
| Valve Function | 4/3 NC |
| Electrical Connection Type | D-Sub Connector |
| Solenoid Type | Double |
| Port Gender | Female |
| Solenoid Power Consumption | 0.6W |
| Ambient and fluid temperature | -10 to +50 °C |
| Response time (at 0.5MPa) | 18ms or less |
Key Features
- Compact design with plug-in mount for easy installation.
- Five ports for multi-directional control and flexibility.
- Valve function is 4/3 normally closed for controlled fluid power applications.
- Double solenoid actuation enables versatile operational control.
- Die cast aluminium body ensures durability and lightweight construction.
- Operates within -10°C to 50°C ambient and fluid temperature range.
- Maximum operating pressure up to 0.7 MPa suitable for industrial pneumatic systems.
- Low solenoid power consumption of 0.6 W for energy efficiency.
Product Description
The SMC SV1000 Pneumatic Solenoid Valve SV1A00-5FU-C-C6 is designed for precise fluid power control in industrial automation and pneumatic applications. Featuring a robust die cast aluminium body with rubber seals, this valve offers reliable operation with five female ports and plug-in mount type for streamlined installation.
Operating voltage is 24V dc with double solenoid actuation providing enhanced control. The valve function is 4/3 normally closed (NC) with four positions, suitable for redirecting airflow in complex pneumatic circuits.
Designed to operate efficiently within an ambient and fluid temperature range of -10°C to 50°C and a maximum operating pressure of 0.7 MPa, this valve is ideal for manufacturing plants, laboratory pneumatic systems, HVAC, and industrial machinery.
The multi-connector design allows easy manifold installation, and the IP67 rated enclosure ensures protection from dust and water, enhancing the valve's lifespan and reducing maintenance needs.
Compact plug-in mount and multi-connector style ease installation and servicing. Five ports with 4/3 NC valve function support complex pneumatic control strategies. Double solenoid actuation for flexible and precise operation.
Die cast aluminium body provides durability with lightweight handling. Low power solenoid coil of 0.6 W reduces energy consumption. Designed for air as fluid medium with response time of 18 ms or less at 0.5 MPa. Certified to cULus and CE standards for quality and safety compliance.
This valve suits industrial, manufacturing, laboratory, HVAC, and pneumatic automation applications where reliable and rapid control of air flow is essential. Browse our extensive Pneumatic Solenoid Valves category and SMC brand offerings for more high-quality valve solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 0.7 MPa, suitable for industrial pneumatic systems.
This unit features a 4/3 normally closed (NC) valve function, allowing for controlled fluid power applications.
The dimensions of this model are 135.5 mm in length, 68.2 mm in width, and 92.2 mm in height.
It is designed to control air as the fluid medium.
The operating temperature range is from -10°C to 50°C for both ambient and fluid temperatures.
This model uses a D-Sub connector for its electrical connection.
The solenoid power consumption is 0.6 W, contributing to energy efficiency.
This valve features five female ports for multi-directional control.
The response time at 0.5 MPa is 18 ms or less, allowing for rapid control.
It utilizes double solenoid actuation for enhanced operational control.
This valve is certified to cULus and CE standards for quality and safety compliance.
The body of this valve is made from die cast aluminium, ensuring a lightweight construction.
