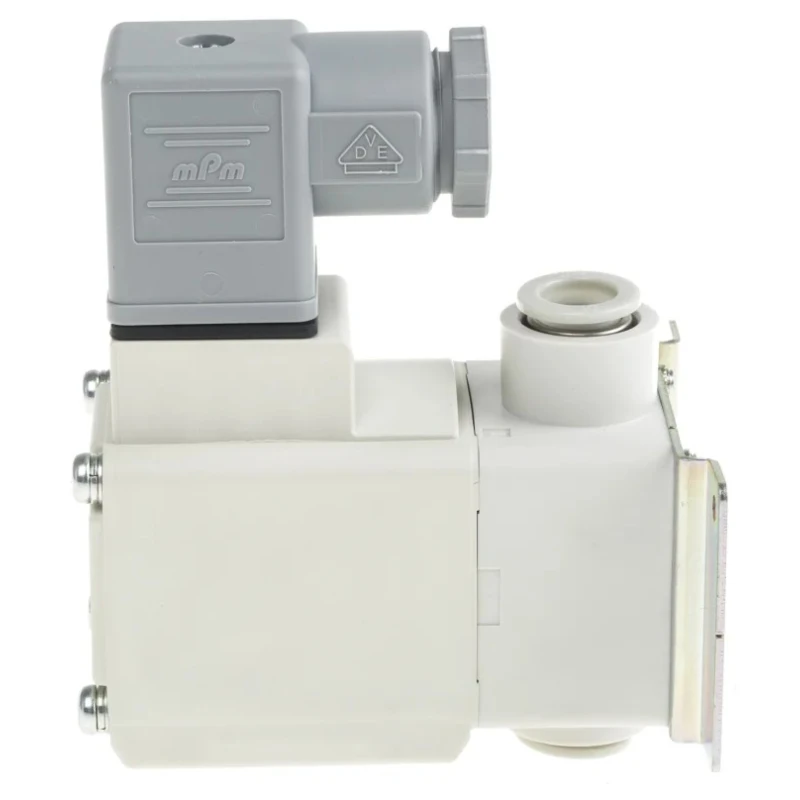

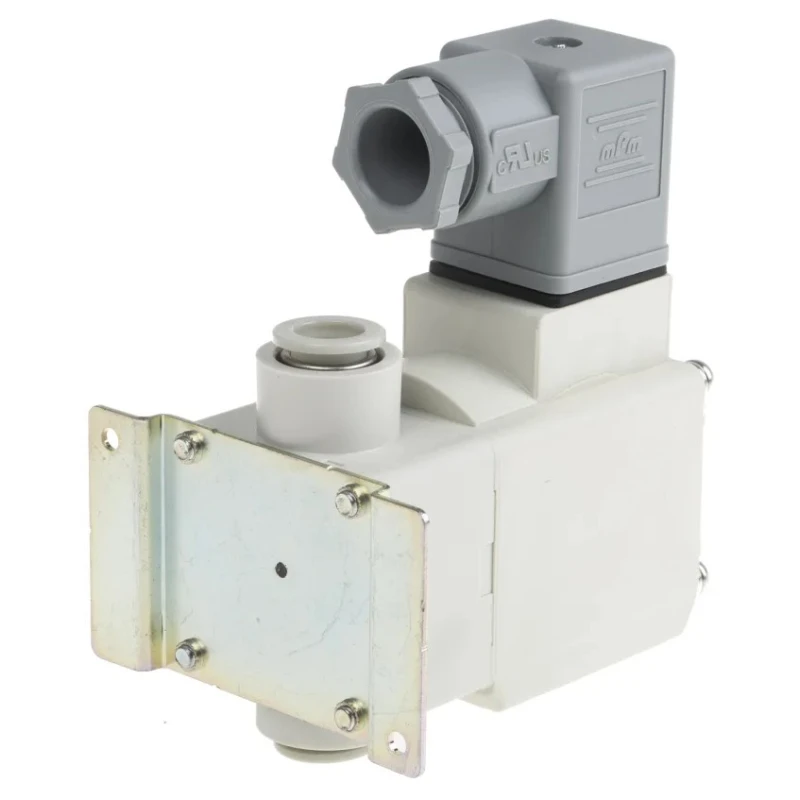

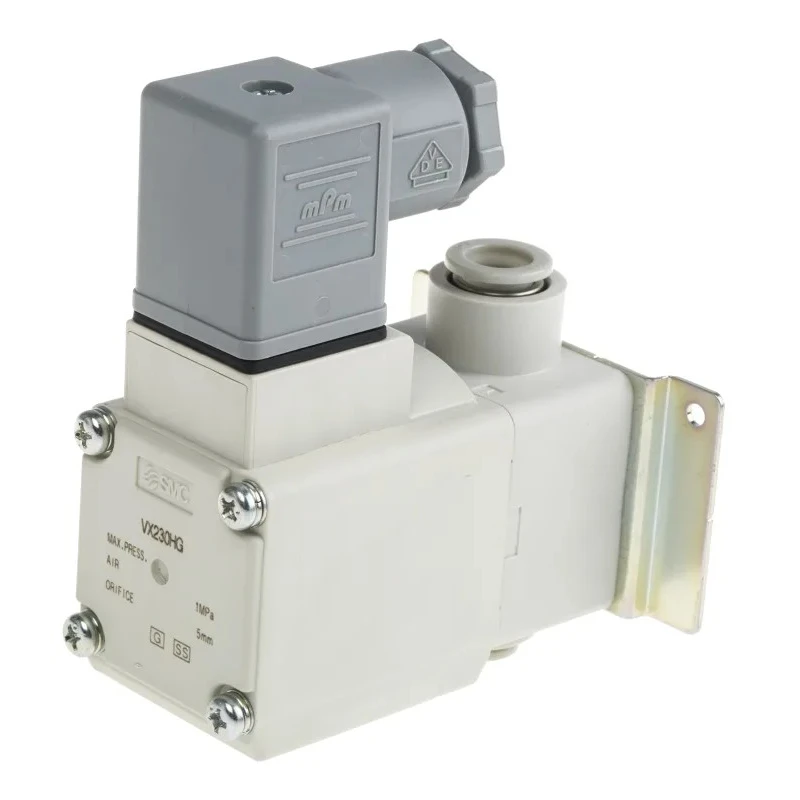

SMC Pneumatic Solenoid Valve 2/2 Solenoid/Spring Rc VX Series 24V DC Resin Body VX230HG

The SMC VX230HG Pneumatic Solenoid Valve 2/2 Solenoid/Spring Rc VX Series 24V DC is engineered for efficient pneumatic control in industrial and manufacturing processes. Designed with a resin body, this valve balances performance with a lightweight structure, making it 30% lighter than previous versions, while maintaining high durability.

This valve provides 20% more flow than typical 2-port solenoid valves due to its advanced internal design. It operates using a direct operated poppet mechanism which ensures quieter operation with reduced metal noise, aided by a built-in rubber bumper.

The valve features a dust-tight and water-jet proof casing making it robust enough for challenging industrial environments. The Nitrile Rubber (NBR) seal material ensures effective sealing and resistance against wear and tear.

Operating voltage is 24V DC via a single solenoid with solenoid power consumption of 10.5W. This valve supports a maximum pressure rating of 1 MPa and maximum operating temperature of 60°C, with a valve function of 2/2 suitable for controlling fluid or gas flow.

Electrical connection is through a DIN connector, and the valve mounts securely via a sturdy bracket. Dimensions are 94 mm length, 56 mm width, and 81 mm height, designed for compact industrial installations.

Applications ideal for pneumatic and fluid power setups include manufacturing automation, HVAC controls, water treatment, and various laboratory and construction process controls where reliable solenoid valve operation is critical.

The product holds RoHS, CE, and cULus approvals assuring compliance with international safety and environmental standards. Made in Vietnam under strict quality assurance protocols, the VX230HG is a dependable pneumatic valve solution for industrial automation and control systems.

Browse EnvMart’s extensive collection of Pneumatic Solenoid Valves for comprehensive solutions tailored to diverse industrial needs. Offers 20% higher flow rate compared to conventional 2-port solenoid valves. Constructed with a lightweight resin body reducing overall valve weight by 30%.

Compact design that is 10% smaller than previous models for space saving installations. Equipped with a dust-tight and water-jet proof casing ensuring durability in harsh environments. Direct operated poppet type mechanism promotes quieter and reliable operation.

Fitted with Nitrile Rubber (NBR) seals for effective leak prevention and long service life. Operates at 24V DC voltage with a single solenoid actuation type. Supports a maximum operating pressure of 1 MPa and maximum operating temperature of 60°C.

Includes a DIN connector for secure electrical connection and bracket mount for stable installation. Manufactured in Vietnam maintaining rigorous quality and standards compliance including RoHS, CE, and cULus.
