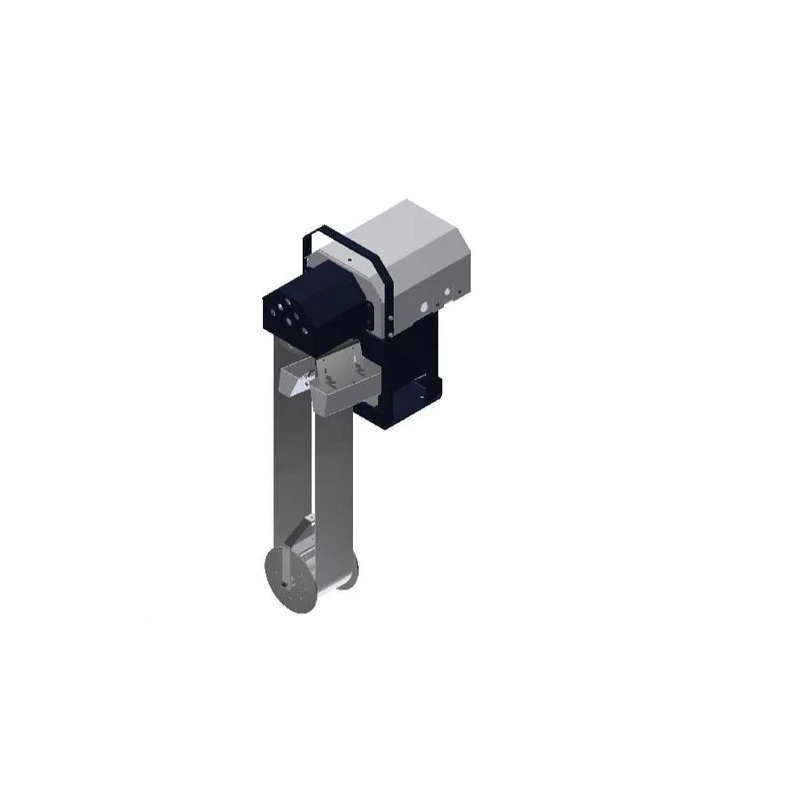

Belt Type Oil Skimmer Remove Floating Oil from Water Surface
Specifications
| Brand | Hydro Treat |
|---|---|
| Type | Industrial oil skimmers |
| Model | SS-101 |
| Depth | 10 |
| Use | Remove Floating oil from Water surface |
| Length Of Belt | 1000 mm| 1400 mm| 1200 mm |
| Oil Recycle Rate | 10 (l/hr) |
| Width Of Belt | 80 mm| 90 mm |
| Belt | PU |
| Can Remove Oil | YES |
| No of Pulley | 2 |
| Feet Material | SS304 |
Key Features
- A single unit elevates and separates oil
- Lifts oil any distance without the need of expensive pumps
- Maintains skimming efficiency with fluctuating fluid level
- Can be used in depths as shallow as one foot, or as deep as 100 feet
Product Description
The Belt Type Oil Skimmer utilizes a continuous belt and wiper to remove up to 40 gallons of oil per hour from the fluid surface. The belt, operating on a motor and pulley system, runs through the contaminated liquid to pick up oil from the surface. After traveling over the head pulley, the belt passes through tandem wiper blades where oil is scraped off both sides of the belt and discharged. The tail pulley has flanges that allow it to roll freely on the inside of the belt without becoming dislodged. It requires no bearings and does not need to be fastened to the tank. If turbulent conditions exist, an optional tether and cage assembly prevent the tail pulley from being dislodged.Oil skimming makes use of the differences in specific gravity and surface tension between oil and water. These physical characteristics allow the belt to attract oil and other hydrocarbon liquids from the surface of the fluid. The Model 8 can be used in tanks with depths as shallow as one foot, or as deep as 100 feet.
- Requires no tank modifications in most applications
- Operates in turbulent liquid using optional tail pulley cage and tether assembly
- Easy mounting and fast cleaning, with minimal maintenance
