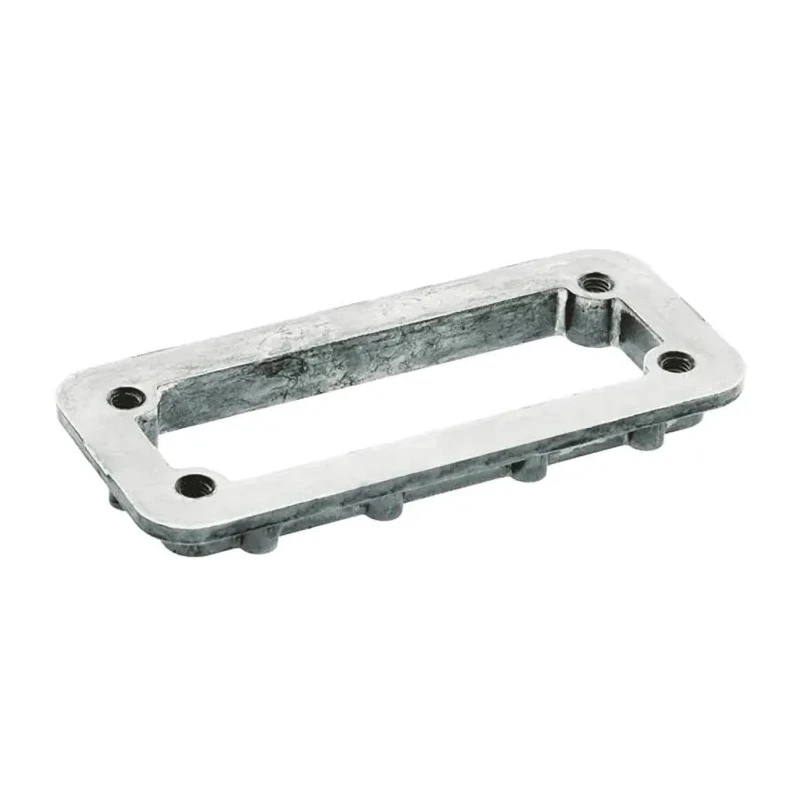

HARTING Mounting Frame HAN HPR Series Thread Size M6 4 Way Female Die Cast Aluminium 250V 09400009902

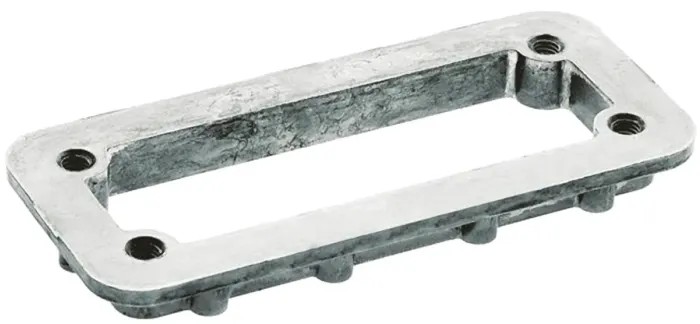

HARTING 09400009902 Mounting Frame for the HAN HPR Series offers a versatile and durable solution for power connector assemblies. This mounting frame accommodates four contacts and features a female gender design. It is engineered from die cast aluminium with a white finish, ensuring robustness in demanding industrial environments.

Designed for use with hood or housing components, it integrates seamlessly into connector assemblies requiring secure and reliable electrical connections. The frame supports wire sizes ranging from 0.5mm² to 2.08mm² and is fitted with an M6 thread size to provide compatibility with standard mounting requirements.

The cable entry angle is positioned on the top, facilitating ease of installation and cable management. This mounting frame is part of the Han Modular series, which allows for varied insert module configurations to meet customized connection needs for signal, power, or pneumatic lines.

Its die cast aluminium body is protected with a black epoxy powder coating, contributing to its resistance to environmental factors. The product is rated for a voltage of 250V and performs reliably within a wide temperature range from -40°C to +125°C, making it appropriate for usage in railway vehicles, industrial machinery, and other applications where durable, IP68 rated connections are required once mated.

Durable die cast aluminium construction with black epoxy coating for enhanced protection. Designed for harsh environments and provides IP68 rated connection when assembled. Compatible with Han Modular system for flexible insert options.

Supports a range of wire sizes and includes 4 contacts in 2 rows. Voltage rating of 250V suitable for a variety of power connections. Thread size M6 enables secure mounting with hood or housing components. Temperature range of -40°C to +125°C ensures operational reliability under harsh conditions.

Manufactured in Germany, assuring high quality and performance standards.

This HARTING mounting frame is an essential component for electronic and electrical power connector applications in industries such as railway, heavy machinery, manufacturing, and transportation. Its robust design, flexibility, and compatibility with modular inserts simplify connector assembly and maintenance tasks.
