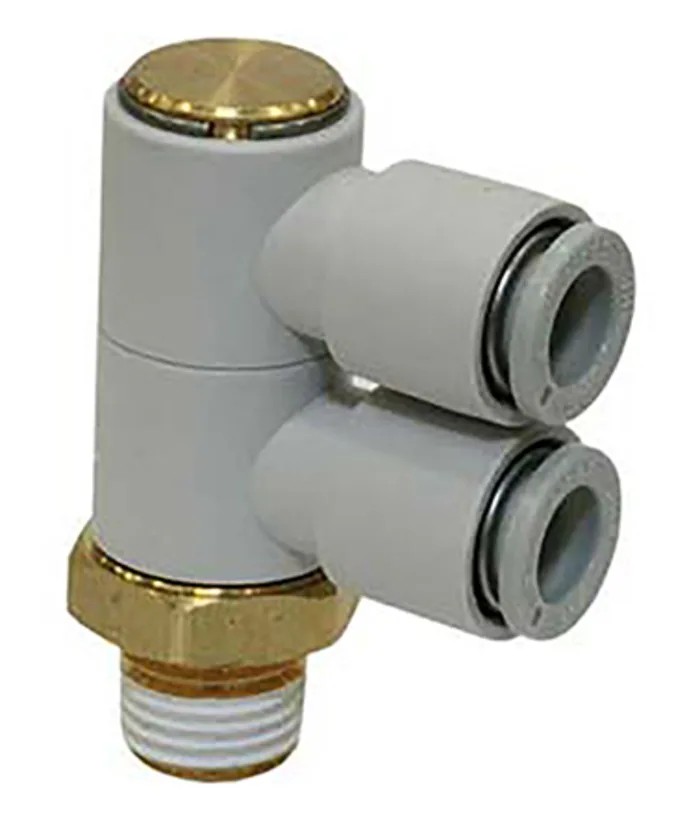

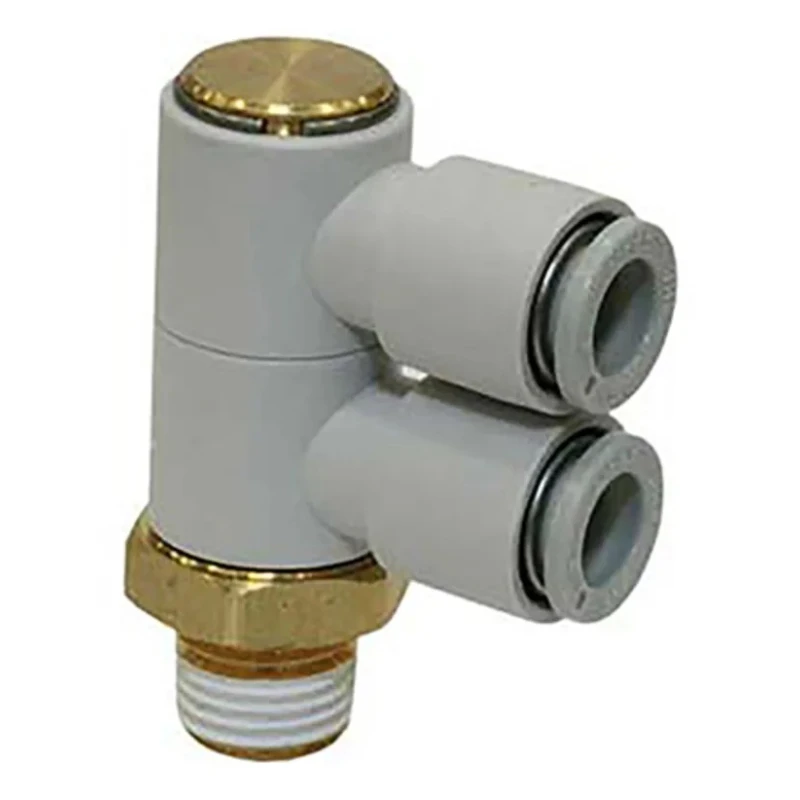

SMC KQ2 Series Pneumatic Fitting Male R 3/8 in Threaded-to-Tube Push-in 3mm 90° Elbow KQ2VD08-03AS

Free Delivery in India | Lowest Global Shipping Charges

SMC KQ2 Series Pneumatic Fitting Male R 3/8 in Threaded-to-Tube Push-in 3mm 90° Elbow KQ2VD08-03AS



Category Pneumatic Fittings Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Maximum Operating Pressure	1 MPa, 3 MPa
Model	KQ2VD08-03AS
Connection Type	Threaded-to-Tube
Finish	Electroless Nickel Plated
Series	KQ2
Maximum Operating Temperature	60°C
Angle	90°
Standards/Approvals	RoHS
Connection Size A	R 3/8 Male
Connection Thread Standard	R
Connection Thread Size	R 3/8 in
Connection Gender	Male
Connection Size B	Push In 8 mm
Tube Connection Type	Push-in
Tube Connection Size	3mm

Key Features

Provides a threaded-to-tube connection for pneumatic applications.
Constructed with electroless nickel plated finish for corrosion resistance.
Compatible with nylon and urethane tubes through the 3mm push-in connection.
Supports maximum operating temperature of 60°C and pressure up to 3 MPa.
Designed with double universal male elbow allowing 360° rotation for ease of installation.
Copper free and suitable for vacuum and positive pressure uses.
Includes release collar for easy tubing removal without damage.
Conforms to RoHS standards and manufactured in Japan.

Product Description

SMC KQ2VD08-03AS is a precision-engineered pneumatic fitting designed for industrial pneumatic systems requiring reliable and efficient fluid power connections. This male elbow fitting is part of the KQ2 series and features an R 3/8 inch threaded male connection combined with a 3mm push-in tube connection, providing threaded-to-tube adaptability with a 90° angle.

The fitting's electroless nickel plated finish ensures durability against corrosion and extends service life in demanding industrial environments. It accepts both nylon and urethane tubing types, making it versatile for various pneumatic applications such as branch piping where right-angle connections are needed.

Engineered with a double universal male elbow design, the two-part fitting allows 360° rotation of both sections, facilitating installation flexibility and alignment in complex piping assemblies. It operates under maximum temperatures up to 60°C and maximum pressures reaching 3 MPa, making it suitable for both vacuum and positive pressure pneumatic circuits.

This copper-free fitting complies with RoHS environmental standards, providing assurance for chemical safety despite not being specifically chemical resistant. The release collar mechanism simplifies tube removal, minimizing damage risks during maintenance or reconfiguration.

Manufactured in Japan with high precision, this pneumatic fitting suits industrial, manufacturing, laboratory, and automation settings where reliable, compact fluid connectors are necessary. Typical use cases include pneumatic control lines, compressed air systems, and automated machinery.

Provides a threaded-to-tube connection for pneumatic applications. Constructed with electroless nickel plated finish for corrosion resistance. Compatible with nylon and urethane tubes through the 3mm push-in connection. Supports maximum operating temperature of 60°C and pressure up to 3 MPa.

Designed with double universal male elbow allowing 360° rotation for ease of installation. Copper free and suitable for vacuum and positive pressure uses. Includes release collar for easy tubing removal without damage. Conforms to RoHS standards and manufactured in Japan.
