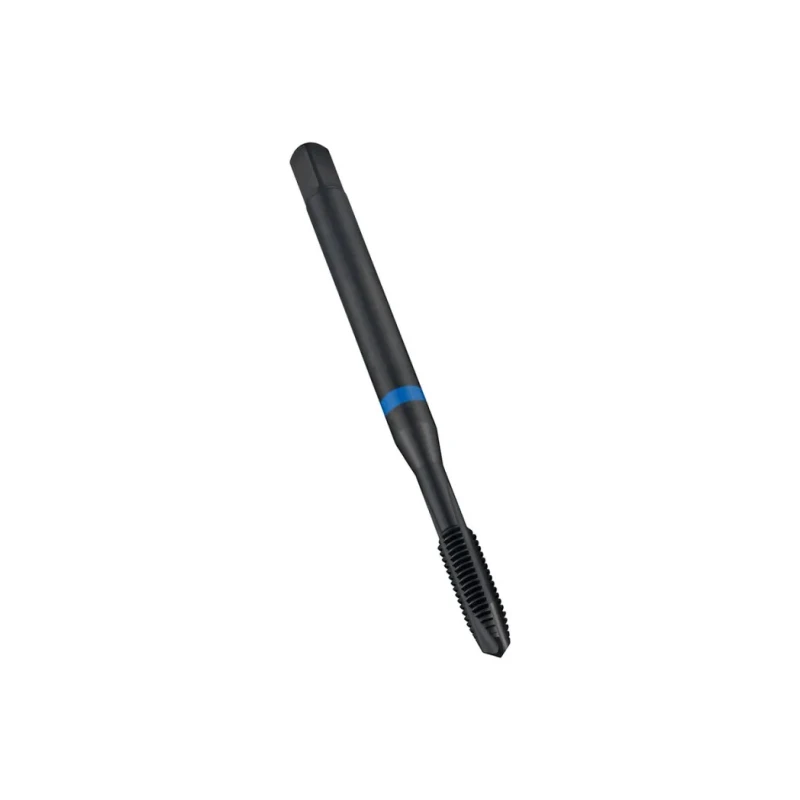

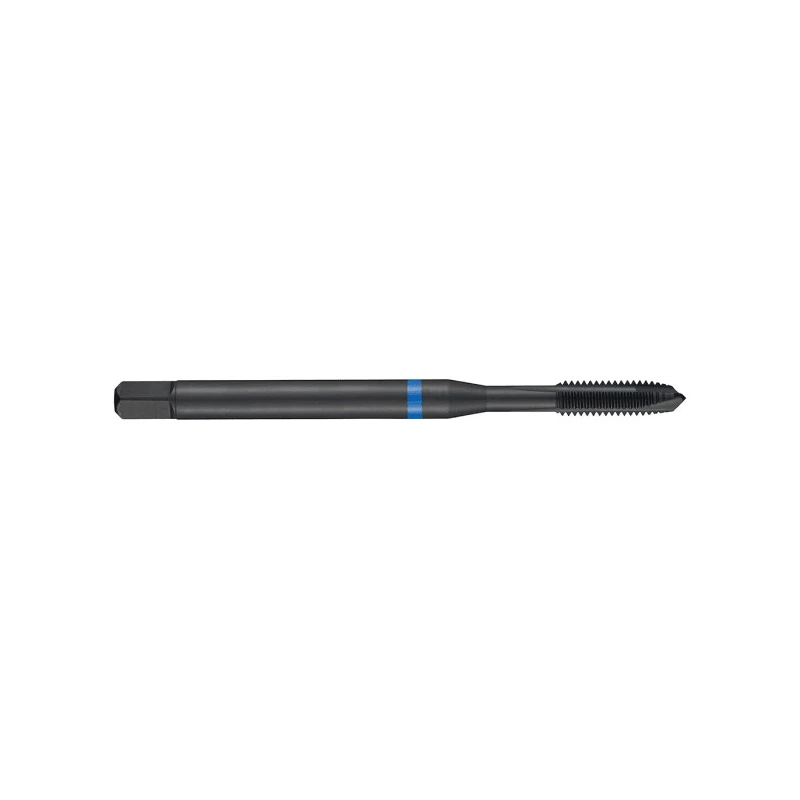

Dormer Spiral Point Machine Threading Tap M12 Metric Standard High Speed Steel-E-PM, Right Hand Thread, 110mm E240M12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Dormer |
| Material | High Speed Steel-E-PM |
| Model | E240M12 |
| Standard | DIN 371/376 |
| Overall Length | 110mm |
| Thread Size | M12 |
| Sub Type | Spiral Point |
| Shank Diameter | 9mm |
| Number of Pieces | 1 |
| Pitch | 1.75mm |
| Standards/Approvals | DIN 338, ISO 529 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Hand/Machine Tap | Machine Tap |
| Straight Flute Taps | most commonly used type of tap and suitable for blind or though hole thread production in most materials, mainly steel and cast iron. These collect chips in the straight flutes of the tool |
| Spiral Point Taps | suitable for threading through holes. They push chips through holes ahead of the tool |
| Spiral Flute Taps | intended primarily for threading blind holes. They pull chips back from the tip of the tool and up and out of the hole |
| Forming Taps | produce a thread by pressing the material rather than cutting and no chips are created |
| HSS | High Speed Steel |
| HSS-E | High Speed Cobalt |
| HSS HM | High Speed Steel/Carbide |
| HSS-E PM | HSS-E Powder Metallurgy Steel |
Key Features
- Manufactured from High Speed Steel-E-PM substrate for enhanced toughness and tool life.
- Designed with a spiral point to efficiently push chips through holes.
- Right handed thread direction suitable for tightening when rotated clockwise.
- Overall length of 110mm with a shank diameter of 9mm.
- Complies with DIN 338, ISO 529, and DIN 371/376 standards for quality and precision.
- Ideal for use in machine tapping applications for metric M12 threads with 1.75mm pitch.
- Steam tempered treated edge offers excellent performance in stainless steel.
Product Description
Dormer E240M12 Spiral Point Machine Threading Tap M12 Thread Metric Standard is a high-quality threading tap designed for industrial and manufacturing applications requiring precise M12 metric threads. Constructed from a high speed steel powder metallurgy substrate (HSS-E-PM), this tap provides superior hardness, edge strength, and durability for challenging materials including stainless steel.
The 110mm overall length and 9mm shank diameter deliver robust performance in machine tapping setups. The spiral point design efficiently clears chips ahead of the tap, minimizing swarf buildup and increasing productivity. Right hand threading direction is optimized for clockwise tightening motions on bolts and nuts.
This threading tap conforms to DIN 338, ISO 529, and DIN 371/376 standards ensuring consistent quality and dimensional accuracy with a tolerance class of 6H. The 1.75mm pitch matches standard M12 thread profiles required in engineering and fluid power tools.
Its specialized steam tempered treated edge enhances wear resistance and cutting efficiency, especially in tough stainless steel applications. Dormer's Shark Line series exemplifies advanced metallurgical technology suited for demanding mechanical, manufacturing, and metalworking tasks.
Manufactured from premium HSS-E-PM steel for enhanced toughness and longer tool life. Spiral point geometry designed to push chips through holes, improving cutting speed. Right hand thread direction for standard tightening operation.
Suitable for threading through holes in various metals and plastics. Meets DIN 338, ISO 529, and DIN 371/376 quality standards. Ideal for use in machine tap holders or drill presses. Applicable in industrial engineering, fluid power, and metal fabrication.
This tap is an essential component in toolkits for precision thread making, suitable for engineering, manufacturing, and general maintenance industries. Its robust construction and conformity to international standards make it a reliable choice for professionals.
Explore more high-performance Threading Taps and related threading tools in our Industrial Tools & Equipment category to enhance your machining operations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The overall length of this threading tap is 110mm, and it has a shank diameter of 9mm.
It is manufactured from High Speed Steel-E-PM, which enhances toughness and tool life.
The thread size is M12 with a pitch of 1.75mm, suitable for standard M12 thread profiles.
This tap features a right hand thread direction, optimized for tightening when rotated clockwise.
It complies with DIN 338, ISO 529, and DIN 371/376 standards, ensuring quality and precision.
The tap is designed with a spiral point that efficiently pushes chips through holes, minimizing swarf buildup.
It is ideal for machine tapping applications in industrial engineering, fluid power, and metal fabrication.
This product includes 1 piece of the threading tap.
It is classified as a machine tap, specifically designed for threading through holes.
The steam tempered treated edge enhances wear resistance and cutting efficiency, particularly in tough stainless steel applications.
The tap has a tolerance class of 6H, which is important for achieving consistent quality and dimensional accuracy.
It is suitable for threading through various metals and plastics, making it versatile for different applications.
