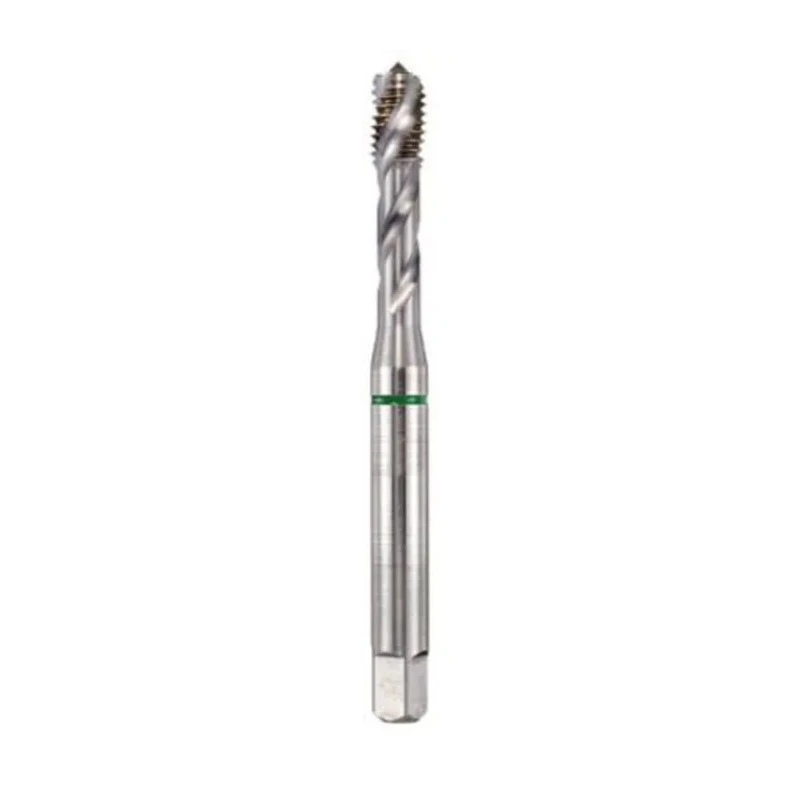

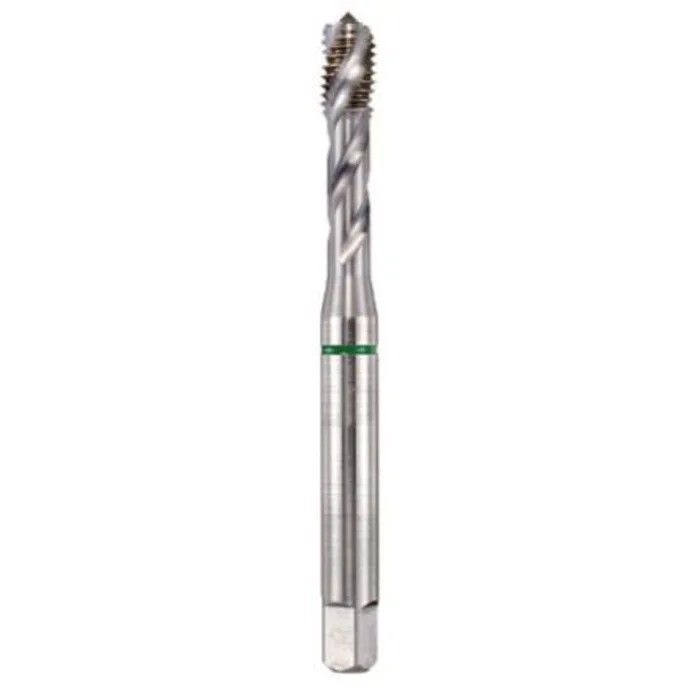

Dormer Metric Standard Machine Threading Tap M5 Thread Size High Speed Steel Spiral Flute 35° E473M5

Dormer E473M5 metric standard machine threading tap features an M5 thread size with a spiral flute angle of 35°. Constructed from premium High Speed Cobalt (HSS-E-PM), this tap offers increased hardness and superior edge strength suitable for demanding industrial-grade threading tasks.

The tap is coated with Super-B (TiAlN + WC/C) with a treated edge that provides outstanding performance across a wide range of non-ferrous materials, including brass and copper. This coating improves wear resistance and minimizes material adhesion, resulting in less swarf buildup and greater productivity during operation.

The back tapered design facilitates faster and easier chip evacuation, which enhances thread quality and reduces the likelihood of tool clogging. Designed to DIN 338 and ISO 529 standards, this Threading Tap ensures precise and repeatable tolerance threads, making it ideal for medium to high-rate production in engineering, manufacturing, and fluid power industries.

This machine tap has a right-hand thread direction with a 0.8mm pitch and an overall length of 70 mm with a 6 mm shank diameter. It is a single-piece tool created specifically for machine tapping applications, delivering reliability and consistent performance.

Common industrial applications include precision threading in metal fabrication, assembly lines, maintenance, and repair works across aerospace, automotive, electrical, and machinery manufacturing sectors.

Constructed from premium grade High Speed Cobalt (HSS-E-PM) for enhanced hardness and edge strength. Super-B (TiAlN + WC/C) coating reduces wear and prevents material adhesion. Excellent performance in brass and copper materials.

Back tapered for efficient chip evacuation and improved productivity. Complies with DIN 338 and ISO 529 standards. Right-hand thread direction with 0.8mm pitch. Overall length of 70 mm and 6 mm shank diameter. Single piece machine tap for precision threading applications.

Explore the wide range of Dormer threading tools and taps in the EnvMart catalog to find the best solutions for your manufacturing and maintenance needs.
