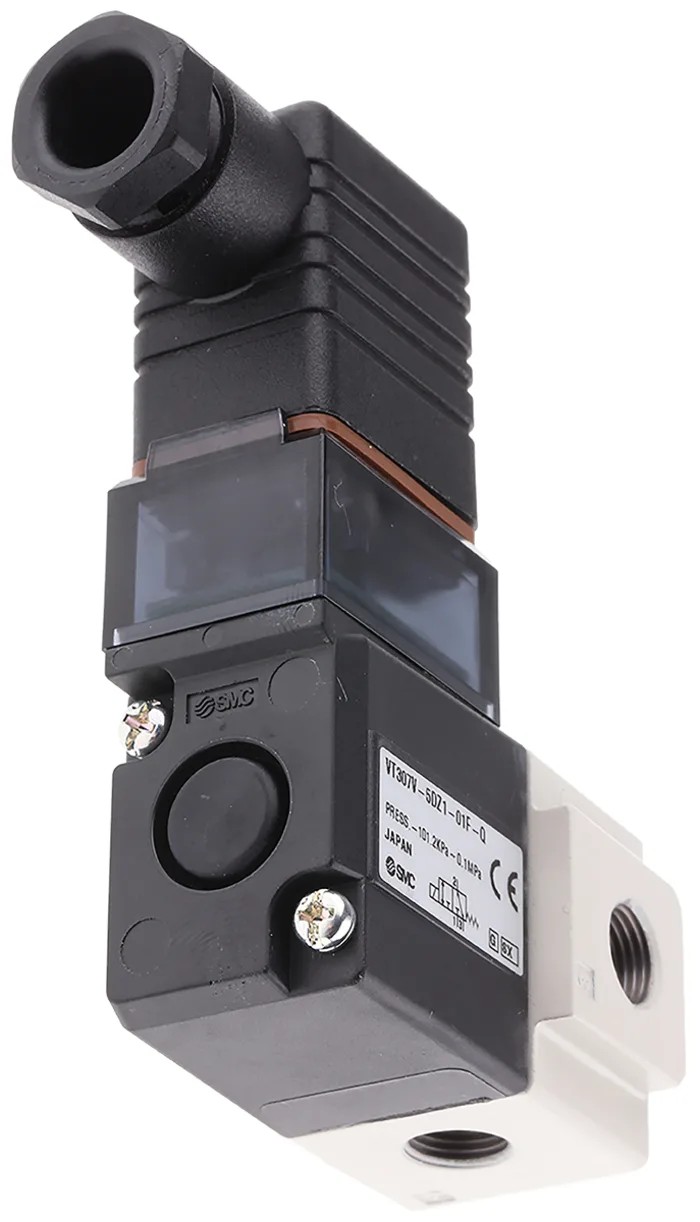

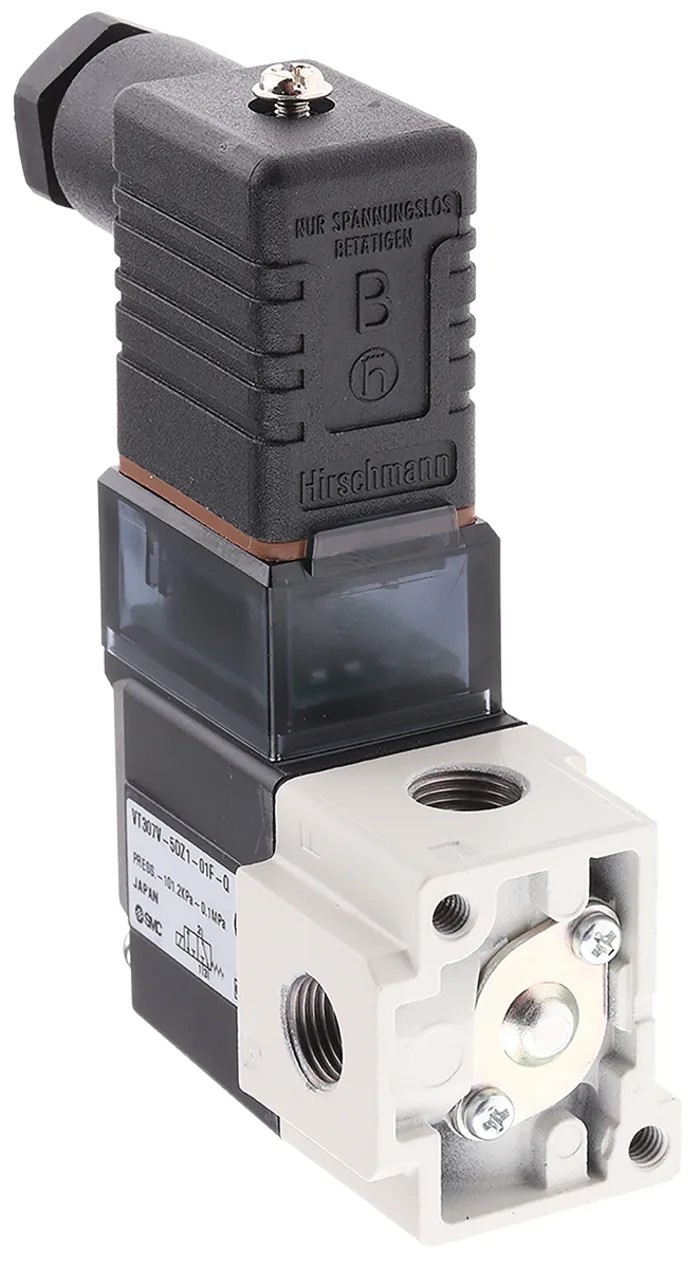

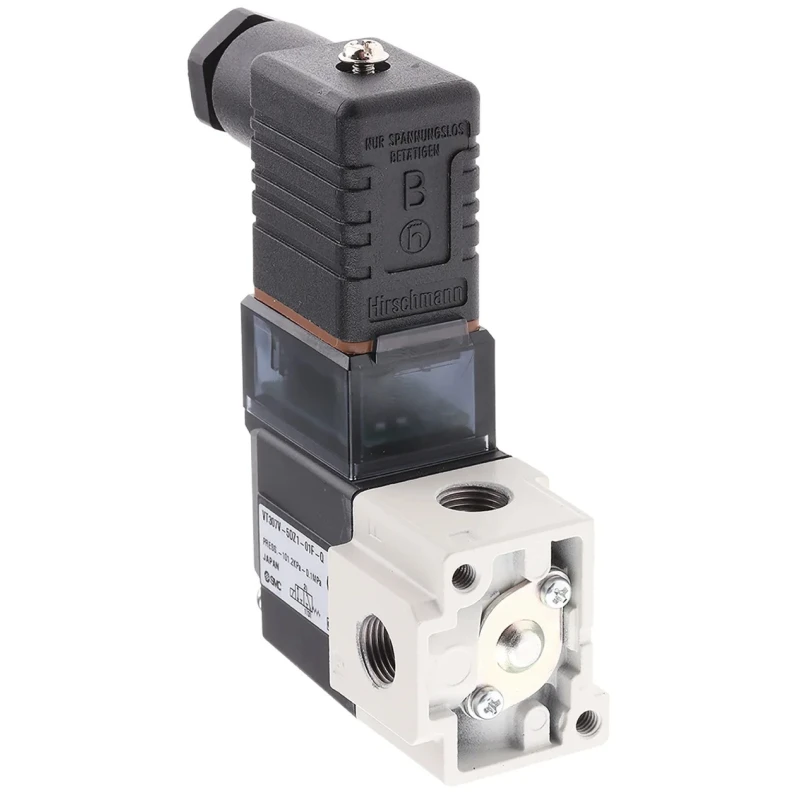

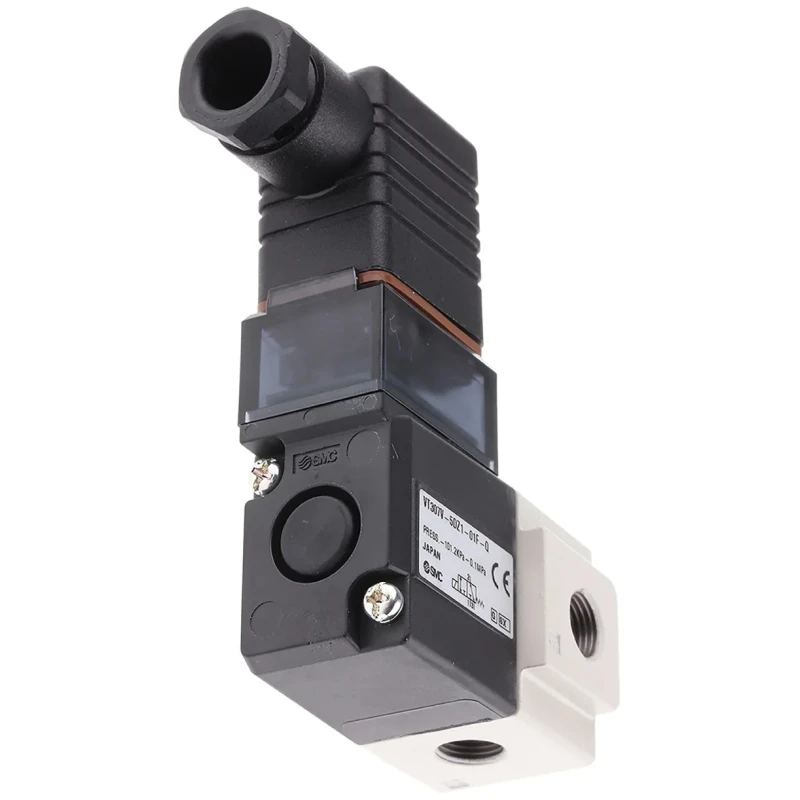

SMC Pneumatic Solenoid Valve 3/2 Solenoid G 1/8 Threaded Manifold Mount 24V dc VT307V-5DZ1-01F-Q



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	84mm
Length	77.6mm
Model	VT307V-5DZ1-01F-Q
Width	25.6mm
Mount Type	Manifold
Series	VT
Number Of Ports	3
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	1/8 in
Seal Material	Hydrogenated Nitrile Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	187L/min
Standards/Approvals	CE, RoHS
Connection Thread Standard	G 1/8
Mount Pattern	DIN
Minimum Pilot Pressure	0MPa
Valve Function	3/2
Electrical Connection Type	DIN Connector
Maximum Pilot Pressure	1MPa
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	4.2W
SMC 3/2 Pneumatic Control Valve - Spring/Solenoid G 1/8 VT307 Series 24V dcBrand	SMC
Various functions	N/O, N/C, Divider valve, Selector valve

Key Features

Valve features 3/2 function with three ports and three positions.
Single solenoid actuation operating at 24V dc and 4.2W power consumption.
Body is die cast aluminium with hydrogenated nitrile rubber seals.
Operates under max pressure of 0.7 MPa and temperature range -10°C to 50°C.
Manifold mount type with DIN mounting pattern and threaded G 1/8 ports.
Supports normally open, normally closed, divider valve and selector valve functions.
Compact dimensions of 84mm height, 77.6mm length, and 25.6mm width.
Electrical connection via DIN connector with IP65 protection.

Product Description

SMC VT307V-5DZ1-01F-Q Pneumatic Solenoid Valve 3/2 Solenoid G 1/8 Threaded Manifold Mount 24V dc is part of the VT series direct-acting valves designed to provide precise control in pneumatic circuits in industrial and manufacturing environments.

Constructed with a die cast aluminium body and hydrogenated nitrile rubber seals, this valve ensures durability and reliable sealing under operating pressures up to 0.7 MPa. It operates efficiently at 24V dc with a power consumption of only 4.2W, optimizing energy usage.

The valve features three ports and three positions, facilitating various pneumatic control applications such as blow-off valves, pressure release valves, and single or double acting cylinder drives. Its manifold mount type with DIN pattern and threaded G 1/8 ports simplifies integration into pneumatic control systems.

The compact dimensions (Height: 84mm, Length: 77.6mm, Width: 25.6mm) allow easy installation even in constrained spaces. It offers flexible functionality including normally open, normally closed, divider valve, selector valve, and includes a non-locking push type manual override for operational convenience.

Electrical connection is via a DIN connector, and the valve features IP65 protection with dust-proof enclosure and unrestricted mounting orientation. It also includes voltage surge suppression enhancing operational safety.

This valve is CE and RoHS compliant, ensuring quality and environmental standards. Manufactured in Japan, it is engineered for industrial, manufacturing, laboratory, and pneumatic automation applications. Choose SMC VT307V-5DZ1-01F-Q for a reliable pneumatic solenoid valve solution optimized for durability and energy efficiency.
