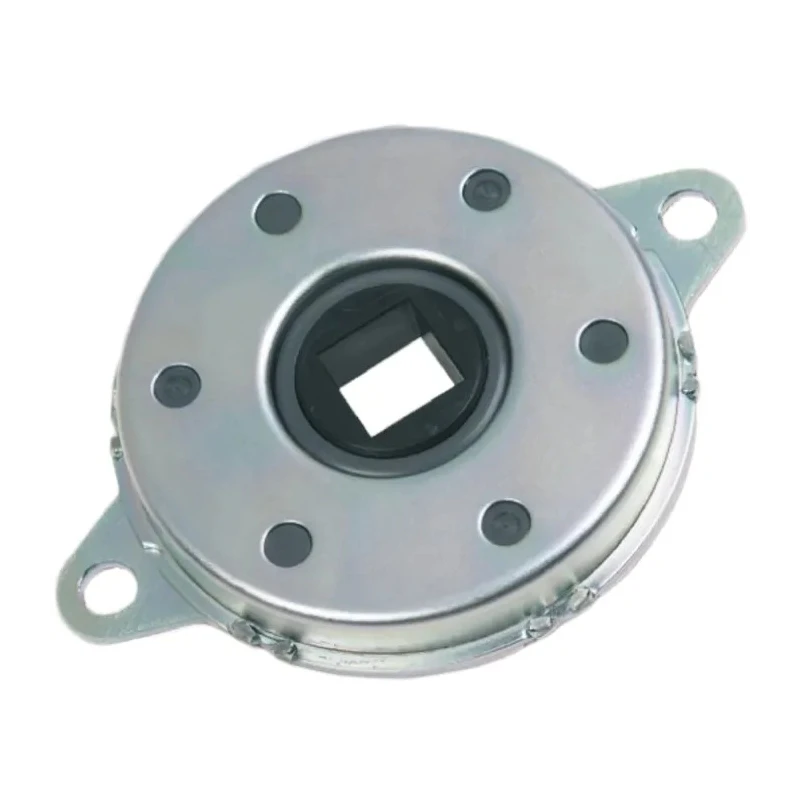

ACE Rotary Damper Torque Range 8.7 ± 0.8 Nm Operating Temp -10°C to 50°C FDT-70

ACE FDT-70 rotary damper is engineered for smooth mechanical motion damping using silicone fluid resistance, offering a torque range of 8.7 ± 0.8 Nm and an operating temperature range from -10°C to 50°C. This component plays a vital role in protecting delicate and expensive equipment or enclosures by reducing abrupt panel, door, or drawer closures.

This rotary damper is maintenance free and designed with a compact steel case along with a nylon sleeve on the output shaft, ensuring a high level of durability under demanding industrial conditions.

The damper provides damping in both rotational directions with a maximum rotational speed of 50 rpm and a maximum cycle rate of 12 cycles per minute, making it suitable for repetitive mechanical operations.

Its robust construction allows it to deliver consistent performance over more than 50,000 cycles, ideal for industrial, manufacturing, machinery assembly, and mechanical motion control applications.

Note that the output shaft requires external support for proper installation and stable operation. Silicone fluid resistance based smooth damping. Dual direction damping with maintenance-free operation. Steel case housing with nylon output shaft sleeve.

Maximum rotational speed of 50 rpm. Endurance over 50,000 operational cycles. Torque range of 8.7 ± 0.8 Nm. Operating temperature between -10°C and 50°C. Maximum 12 cycles per minute operational capability.

This rotary damper is suitable for use in a variety of industrial sectors including mechanical engineering, fluid power systems, equipment manufacturing, and HVAC controls. Browse EnvMart category for more Rotary Dampers and ACE brand products designed to improve mechanical motion control reliability and safety.
