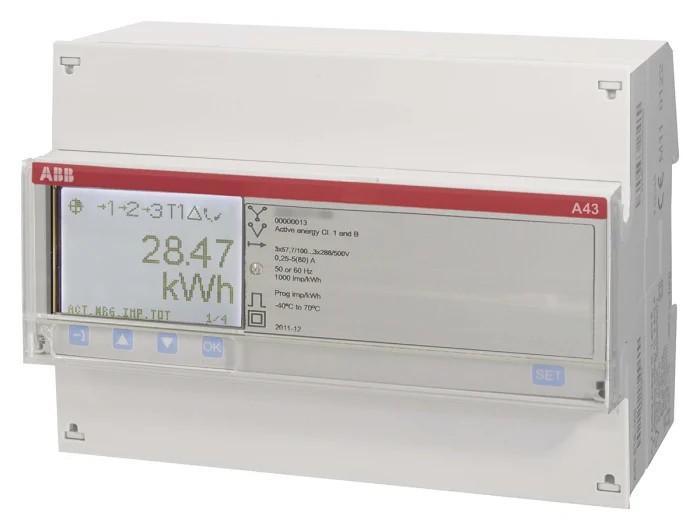

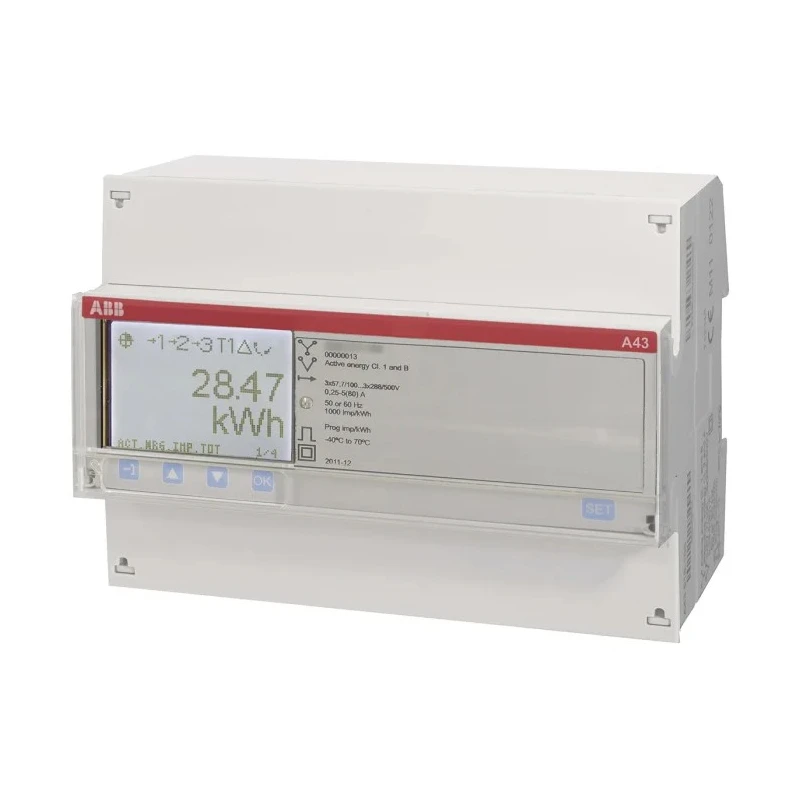

ABB 3 Phase LCD Energy Meter Series A43 with 80 A Direct Connected Measurement 2CMA170531R1000 A43 512-100

ABB 2CMA170531R1000 A43 512-100 is a high-precision 3 Phase LCD Energy Meter designed for direct connection or transformer connection up to 80 A. This meter from the A43 series offers reliable and comprehensive energy measurement for industrial, commercial, and utility applications.

The meter utilizes a pixel-oriented LCD display, providing clear visualization of up to four parameters concurrently. Navigation is user-friendly through push-buttons located below the display. Data collection is facilitated via pulse output or serial communication interfaces, enabling seamless integration with monitoring systems.

Built to perform accurately within a broad temperature range from -40°C to 70°C, it delivers 1% accuracy suitable for precise energy billing and load management. The instrument supports 2 and 3 element metering to suit various network configurations.

Communication capabilities include an infrared port compatible with external Serial Communication Adapters, such as the KNX adapter, enhancing data accessibility.

Advanced features incorporated in this platinum-level meter include active and reactive energy measurement, import/export analysis, tariff management supporting 4 tariffs controlled via inputs, harmonic and Total Harmonic Distortion (THD) evaluations, and alarm functions tailored for load demand and energy consumption.

The compact form factor with a cutout height of 97mm, width of 123mm, and depth of 65mm ensures compatibility with standard panel installations while occupying minimal space.

This meter is applicable across industrial manufacturing plants, commercial buildings, energy management installations, and process control environments requiring precise electrical energy monitoring and control.

The meter features a pixel-oriented LCD capable of displaying up to four quantities simultaneously. It includes pulse output and serial communication for data collection. Designed for operation in temperatures ranging from -40°C to 70°C with 1% meter accuracy.

Equipped with infrared port for external Serial Communication Adapter, supporting advanced communication options. Functions include active/reactive energy measurement, import/export, tariff control with 4 tariffs, and harmonic analysis.

Compact design with cutout dimensions 97mm height, 123mm width, and 65mm depth for easy panel mounting. Supports 2 or 3 element metering with alarm function and advanced load profiling. Explore more advanced Energy Meters and measuring instruments in the Industrial Machines & Instruments category at EnvMart for your energy monitoring and control needs.
