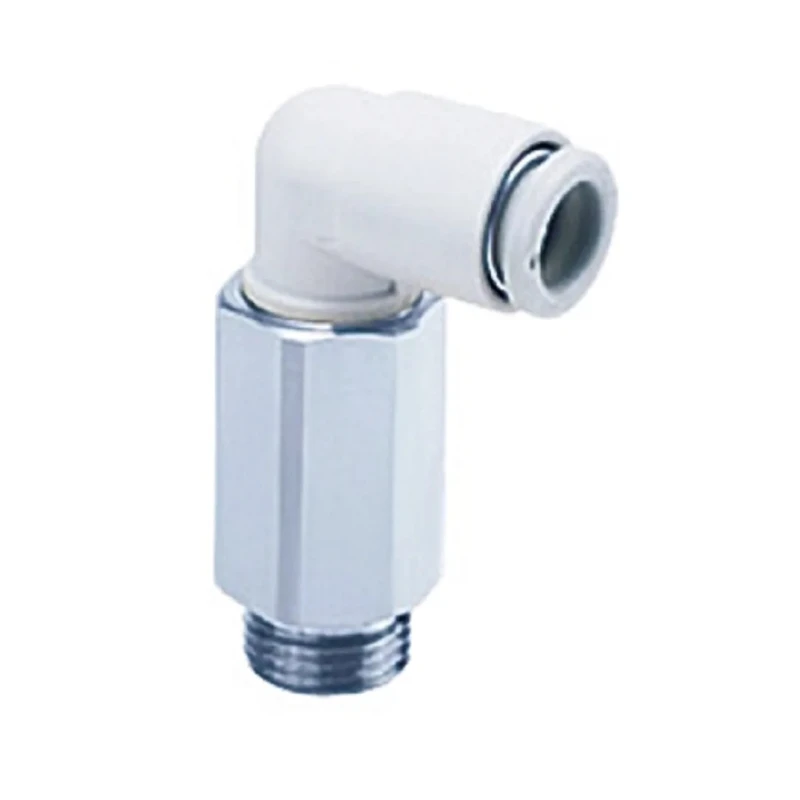

SMC Brass Pneumatic Male Elbow Fitting M5 Thread, 3.2mm Push-in Tube, Nickel Finish, 90° Angle KQ2L23-M5N
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Material | Brass |
| Model | KQ2L23-M5N |
| Connection Type | Threaded-to-Tube |
| Finish | Nickel |
| Series | KQ2 |
| Maximum Operating Temperature | 60°C |
| Angle | 90° |
| Standards/Approvals | RoHS |
| Connection Size A | M5 Male |
| Connection Thread Standard | Metric |
| Connection Thread Size | M5 |
| Connection Gender | Male |
| Connection Size B | Push In 3.2 mm |
| Tube Connection Type | Push-in |
| Tube Connection Size | 3.2mm |
Key Features
- Made from durable brass with a nickel finish for corrosion resistance.
- Designed for quick and easy installation in pneumatic systems.
- Operates reliably up to a maximum temperature of 60°C.
- Compact design allows use in confined spaces.
- Low force required for fitting and removal ensures ease of maintenance.
- Compatible with metric thread standards for precise connection.
- Suitable for thread-to-tube connections with 3.2mm push-in tube size.
- Part of the KQ2 series pneumatic fittings, known for lightweight design and improved insertion forces.
Product Description
SMC KQ2L23-M5N is a brass male elbow pneumatic fitting designed with a 90° angle, featuring an M5 male metric thread and a 3.2mm push-in tube connection. This fitting is finished with nickel to enhance resistance against corrosion and wear.
Constructed from high-quality brass material, this fitting is suitable for pneumatic applications in industrial settings such as manufacturing, automation, and fluid power systems where reliable and secure connections are essential.
The compact elbow design allows installation in areas with limited space, making it ideal for complex pneumatic assemblies. Operating temperature is rated up to 60°C, supporting various pneumatic system requirements.
This KQ2 series fitting requires low force for insertion and removal, enhancing ease of maintenance and system modification. It conforms to metric thread standards ensuring compatibility with other standard pneumatic components.
Durable brass material with nickel finish provides corrosion resistance. 90° male elbow design enables right angle piping with M5 thread. Push-in connection for 3.2mm tubing offers secure and quick attachment. Compact and lightweight for usage in confined and complex spaces.
Supports maximum operating temperature of 60°C. Low insertion and removal force facilitates maintenance. Meets RoHS standards indicating restricted hazardous substances compliance. Part of the reliable and lightweight KQ2 series pneumatic fittings.
This fitting is ideally suited for use in industrial pneumatic systems such as automation equipment, manufacturing machinery, air tools, and HVAC systems. It provides a reliable connection path in compressed air piping networks, contributing to efficient fluid power transmission.
Explore related pneumatic fittings and components in the Pneumatic Fittings category at EnvMart for comprehensive system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this fitting is 60°C.
It uses a threaded-to-tube connection type with an M5 male thread and a 3.2mm push-in tube connection.
This fitting is made of brass and finished with nickel to enhance corrosion resistance.
The fitting is designed with a 90° angle, allowing for right angle piping.
Yes, it meets RoHS standards indicating compliance with restricted hazardous substances.
It is part of the KQ2 series of pneumatic fittings, known for their lightweight design and ease of use.
The fitting requires low force for both insertion and removal, which enhances ease of maintenance and system modification.
The connection size for the push-in tube is 3.2mm.
It is suitable for use in pneumatic systems such as automation equipment, manufacturing machinery, air tools, and HVAC systems.
The country of origin for this fitting is India.
It conforms to metric thread standards, ensuring compatibility with other standard pneumatic components.
The compact design of this elbow fitting allows for installation in areas with limited space, making it ideal for complex pneumatic assemblies.
