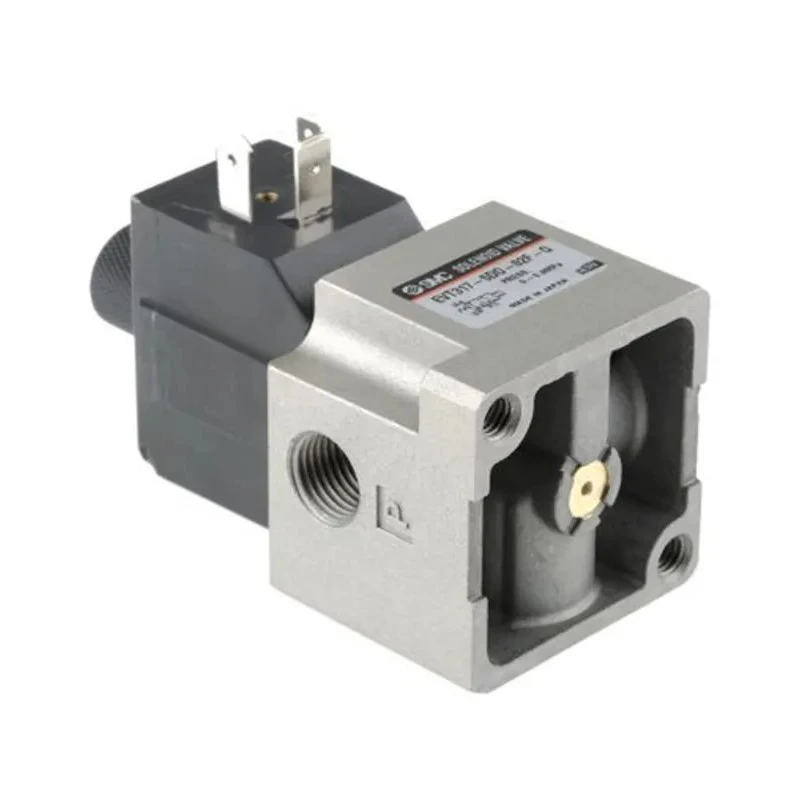

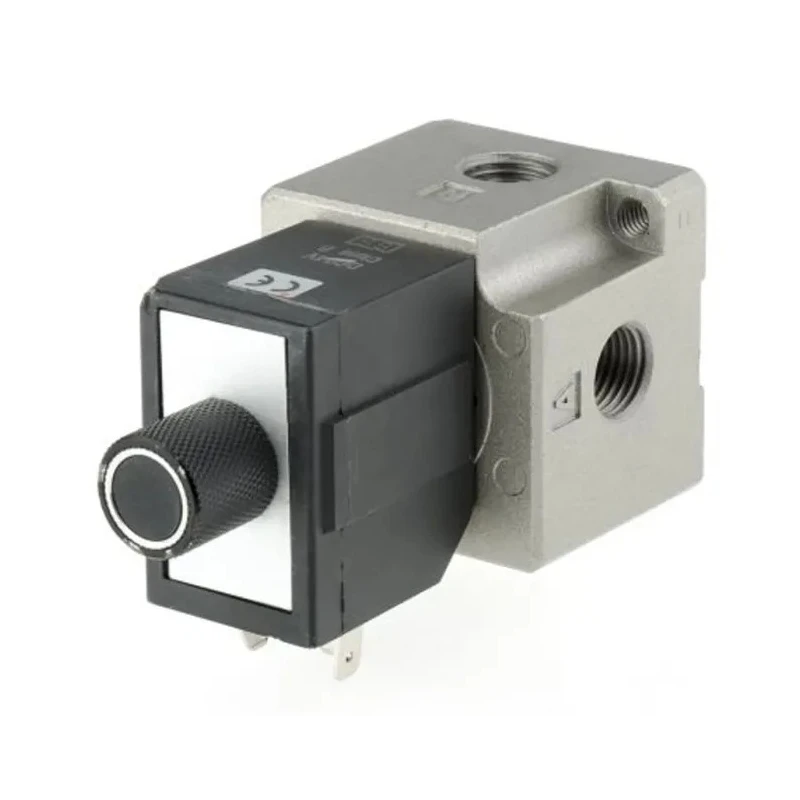

SMC Pneumatic Solenoid Pilot-Operated Control Valve 3/2 NC Solenoid Spring G VT300 Series 12V dc
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 12V dc |
| Brand | SMC |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 0.9 Mpa |
| Model | VT300 |
| Mount Type | Stand Alone |
| Series | VT300 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | 1/4 in |
| Seal Material | Rubber |
| Minimum Operating Temperature | 0°C |
| Actuation Type | Solenoid/Spring |
| Maximum Flow Rate | 687.05NL/min |
| Standards/Approvals | RoHS |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 0MPa |
| Valve Function | 3/2 NC |
| Electrical Connection Type | DIN Connector |
| Solenoid Type | Single |
| Solenoid Power Consumption | 6W |
Key Features
- Operates with 12V DC voltage and consumes 6W solenoid power.
- Constructed with die cast aluminium body and rubber sealing for durability and tight sealing.
- Provides maximum operating pressure of 0.9 MPa and withstands temperature range from 0°C to 50°C.
- Features single solenoid actuation with spring return and DIN connector electrical interface.
- Supports maximum flow rate of 687.05 NL/min suitable for efficient pneumatic control.
- Compact 1/4 inch G thread port size and 3 ports enable versatile application.
- Pilot-operated design enables selective porting with up to 6 valve function variants.
- Coils can be oriented at 90° increments to suit installation needs.
Product Description
The SMC EVT317-6DO-02F-Q Pneumatic Solenoid Pilot-Operated Control Valve from the VT300 Series is engineered for precise pneumatic fluid power applications requiring robust and reliable control. Operating at 12V DC with a solenoid power consumption of 6W, this valve features a 3-port direct operated poppet design with pilot operation and spring return functionality.
Its die cast aluminium body ensures strength and corrosion resistance, complemented by rubber seals that provide effective leak tightness, making it suitable for demanding industrial environments. The valve supports a maximum operating pressure of 0.9 MPa, a maximum operating temperature of 50°C, and a minimum operating temperature of 0°C, covering a broad operating range for various applications.
With a 1/4 inch G thread port size and three ports, the valve offers versatile connection options along with a DIN connector type electrical interface. The solenoid coil can be positioned at 90-degree increments to facilitate flexible installation orientations.
The valve also includes a push button manual override and surge voltage protection to enhance operational safety and control. It enables selective porting and multiple valve functions up to six variants, making it adaptable for diverse pneumatic control systems.
This valve adheres to RoHS standards and is manufactured in Japan, reflecting high quality and compliance assurances. 12V DC solenoid voltage with 6W power consumption for efficient operation. Robust die cast aluminium body with rubber seals for durability.
3 ports with 1/4 inch G thread standard connection for pneumatic systems. Maximum operating pressure of 0.9 MPa and flow rate of 687.05 NL/min. Operating temperature range from 0°C to 50°C suitable for various environments.
Spring return solenoid actuation and DIN connector electrical interface. Manual override and surge voltage protection for safety features. Compliant with RoHS standards and made in Japan.
This pneumatic solenoid valve is ideal for industrial, mechanical, and fluid power applications including manufacturing automation, pneumatic control systems, and HVAC equipment. Its reliable switching and modular design enable effective control in complex pneumatic circuits.
Explore more pneumatic valves and fluid power components at EnvMart to meet your precision automation needs.
Explore more products in our Pneumatic Solenoid Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 0.9 MPa.
It supports a maximum flow rate of 687.05 NL/min.
This model operates at a voltage of 12V DC.
The valve operates within a temperature range of 0°C to 50°C.
It features three ports with a 1/4 inch G thread size.
This valve uses solenoid actuation with a spring return mechanism.
The body is made of die cast aluminium, and it has rubber seals for effective sealing.
It uses a DIN connector for electrical connections.
The solenoid power consumption is 6W.
Yes, it includes a manual override and surge voltage protection for enhanced safety.
Yes, it adheres to RoHS standards.
This valve is manufactured in Japan.
