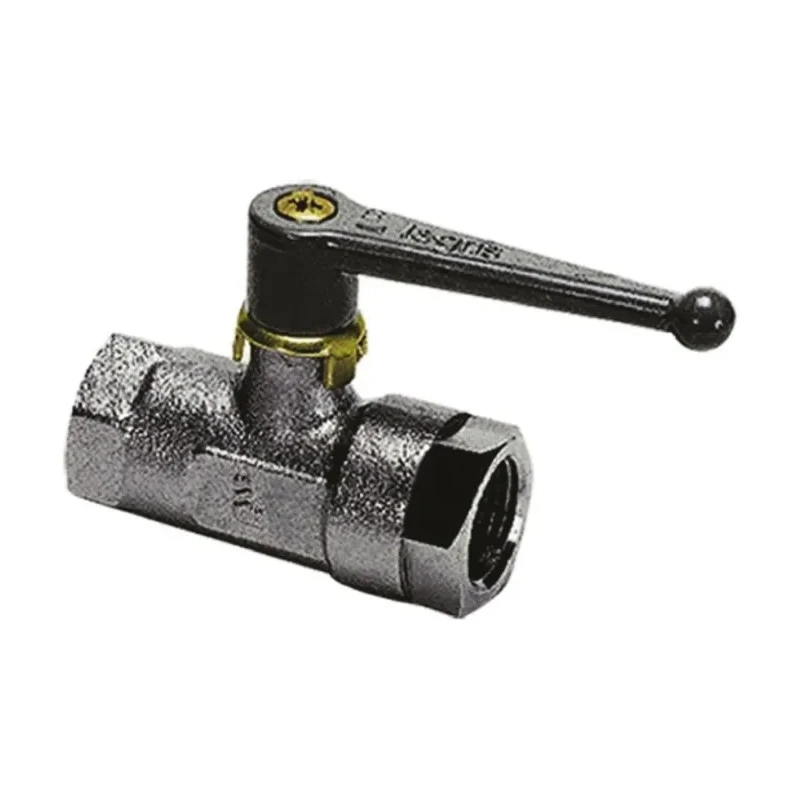

Legris Sand Blasted Nickel Plated Brass Threaded Ball Valve BSPP, 12.7 mm, Max 40 bar, 80°C 0402 13 21
Specifications
| Country of Origin | France |
|---|---|
| Brand | Legris |
| Body Material | Sand Blasted Nickel Plated Brass |
| Inlet Connection Type | Threaded |
| Working Temperature | -20 → 80 °C |
| Handle Material | Zinc Alloy |
| Maximum Operating Temperature | 80°C |
| Maximum Working Pressure | 40 bar |
| Seal Material | Graphite |
| Ball Material | Polished Brass |
| Standards/Approvals | CE |
| Inlet Thread Standard | BSPP |
| Outlet Port Size | 12.7 mm |
| Retaining nut | Nickel plated brass |
Key Features
- Features polished brass ball ensuring optimum sealing and resistance to scaling.
- Seal material is high-quality graphite for effective leak prevention.
- Suitable for maximum operating temperature up to 80°C and working pressure up to 40 bar.
- Includes zinc alloy handle with quarter turn operation for easy use.
- Actuator included for enhanced control of fluid flow.
- Compliant with CE standards, ensuring quality and safety.
- Compact inline design with 12.7 mm outlet port size.
- Body finished with sand blasted nickel plating for corrosion resistance.
Product Description
Legris 0402 13 21 Sand Blasted Nickel Plated Brass Threaded Ball Valve BSPP is engineered for industrial fluid power and plumbing pipeline applications. This in-line ball valve features a sand blasted nickel plated brass body with BSPP threaded inlet and outlet connections and a polished brass ball for optimal sealing and durability.
The valve operates with a simple quarter turn of the zinc alloy handle, providing full flow control in two-way systems. Its seal system combines graphite gaskets, nylon rings, and compensating nitrile "O" rings to ensure excellent leak prevention and resistance to scale deposits even after extended use.
Designed to withstand a maximum working pressure of 40 bar and operating temperatures from -20°C to 80°C, this valve is suitable for a wide range of industrial, laboratory, manufacturing, and HVAC applications. The actuator is included to offer enhanced manual or automated fluid flow regulation.
The robust nickel plated brass retaining nut maintains seal compression and allows easy disassembly for inspection and maintenance. The valve meets CE standards for quality assurance and originates from France, reflecting superior European manufacturing standards.
Features polished brass ball ensuring optimum sealing and resistance to scaling. Seal material is high-quality graphite for effective leak prevention. Suitable for maximum operating temperature up to 80°C and working pressure up to 40 bar.
Includes zinc alloy handle with quarter turn operation for easy use. Actuator included for enhanced control of fluid flow. Compliant with CE standards, ensuring quality and safety. Compact inline design with 12.7 mm outlet port size.
Body finished with sand blasted nickel plating for corrosion resistance. Designed for BSPP inlet and outlet threading standards. Retaining nut made of nickel plated brass to maintain seal integrity.
This Ball Valve is ideal for industrial supplies requiring reliable valve solutions, including mechanical systems, fluid power control, and plumbing pipelines. Enhance your installations with Legris high-quality components available through EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum working pressure of this ball valve is 40 bar.
This model can operate within a temperature range of -20°C to 80°C.
The inlet connection type for this valve is BSPP (British Standard Parallel Pipe).
The body is made of sand blasted nickel plated brass, and the ball is polished brass. The seal material is high-quality graphite.
The outlet port size of this valve is 12.7 mm.
Yes, it includes a zinc alloy handle for quarter turn operation and an actuator for enhanced control of fluid flow.
Yes, this ball valve is compliant with CE standards, ensuring quality and safety.
The retaining nut, made of nickel plated brass, maintains seal compression and allows for easy disassembly for inspection and maintenance.
This valve is suitable for a wide range of applications including industrial, laboratory, manufacturing, and HVAC systems.
The valve operates with a simple quarter turn of the zinc alloy handle, providing full flow control in two-way systems.
The polished brass ball ensures optimum sealing and resistance to scaling, enhancing the valve's performance.
This ball valve is manufactured in France, reflecting superior European manufacturing standards.
