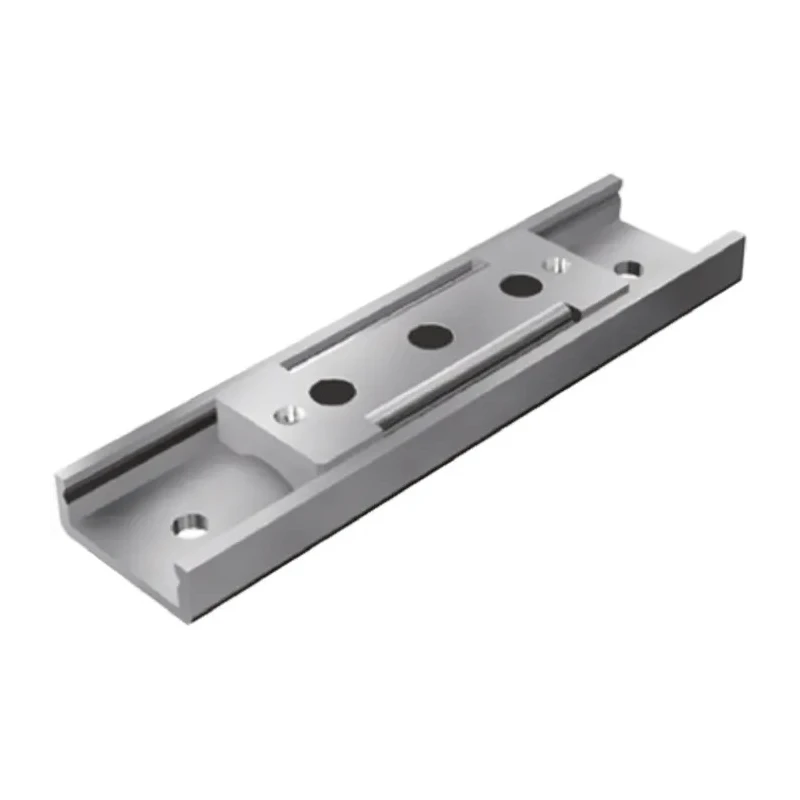

THK Precision Linear Slide ER616+70L Linear Slides 36 mm Stroke Length, Stainless Steel, Japan ER616+70L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | THK |
| Model | ER616+70L |
| Series | ER616 |
| Stroke Length | 36mm |
| Static Load Rating | 125N |
| Dynamic Load Rating | 71.6N |
| Rail Length | 70mm |
| Carriage Length | 36mm |
| Carriage Width | 15.6mm |
Key Features
- Constructed from heat-treated, ground stainless steel for corrosion resistance.
- Includes a carriage width of 15.6 mm and carriage length of 36 mm.
- Dynamic load rating of 71.6 N and static load rating of 125 N ensure stable operation.
- Rails measure 70 mm in length suitable for compact assemblies.
- Designed for use in electronics, semiconductor, medical, and measuring equipment.
- Ball circulation in V-shaped grooves provides smooth, accurate linear sliding.
- Made in Japan, ensuring quality manufacturing standards.
- Requires pan head screws size 0 for outer rail installation to avoid fouling inner block.
Product Description
THK ER616+70L precision linear slide belongs to the ER series, engineered for high accuracy linear motion applications with a stroke length of 36 mm and rail length of 70 mm. The slide pack uses corrosion-resistant heat-treated, ground stainless steel construction, with balls circulating in v-shaped grooves housed within the inner block to deliver smooth and stable linear movement over an extended service life.
The compact and lightweight design makes it ideal for integration within electronic equipment, magnetic disk devices, medical apparatus, semiconductor manufacturing tools, measuring instruments, plotting machines, and photocopiers. The carriage width is 15.6 mm with a carriage length of 36 mm, supporting dynamic and static loads of 71.6 N and 125 N respectively.
Complete linear assemblies include slide and outer rail, requiring pan head screws size 0 for installation to prevent the screw heads from fouling the inner block components. This ensures precise assembly and reliable operation.
Manufactured in Japan, this linear slide adheres to stringent quality standards, delivering durability and performance necessary for demanding industrial, laboratory, and commercial applications.
Heat-treated, ground stainless steel construction for corrosion resistance. Compact size with 36 mm stroke length and 70 mm rail length. Dynamic load rating of 71.6 N and static load rating of 125 N for stable operation.
Ball circulation in v-shaped grooves provides smooth linear motion. Suitable for electronics, medical, semiconductor and precision instruments. Requires pan head screws size 0 for secure outer rail installation. Manufactured in Japan with high quality assurance.
Explore more precision Linear Slides and related products in the Industrial Tools & Equipment category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this linear slide is 36 mm.
The dynamic load rating is 71.6 N, and the static load rating is 125 N.
The carriage length is 36 mm, and the carriage width is 15.6 mm.
The rails measure 70 mm in length, making them suitable for compact assemblies.
It is constructed from heat-treated, ground stainless steel for corrosion resistance.
The model features ball circulation in v-shaped grooves, providing smooth and accurate linear sliding.
This model is designed for use in electronics, semiconductor, medical, and measuring equipment.
Pan head screws size 0 are required for the installation to avoid fouling the inner block.
It is manufactured in Japan, adhering to stringent quality standards.
This model belongs to the ER series of precision linear slides.
The weight of this model is not specified in the provided information.
Key features include a 36 mm stroke length, dynamic load rating of 71.6 N, and a compact design for integration into various applications.
