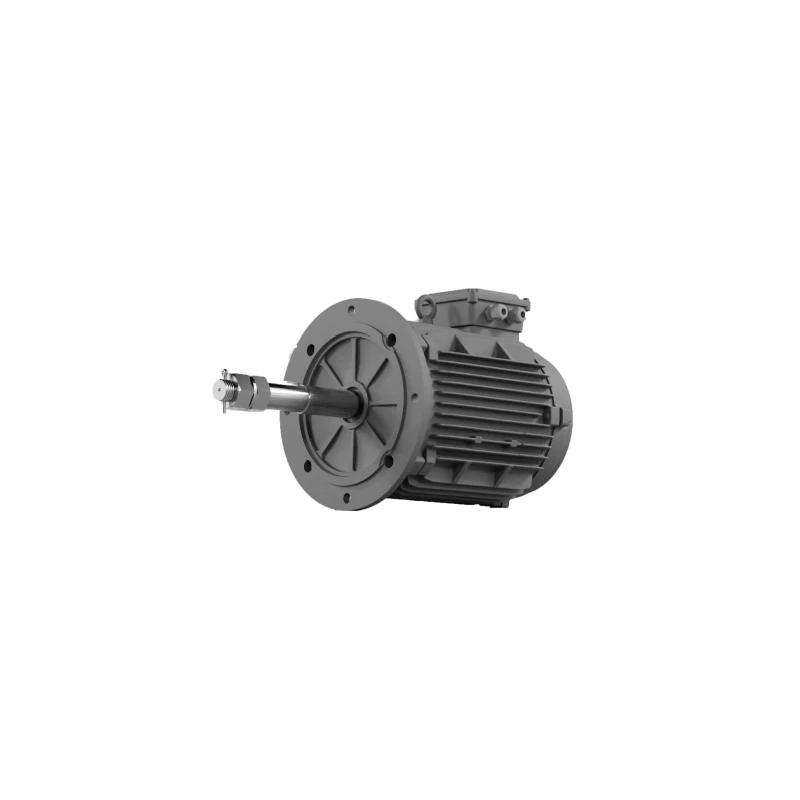

Impel 5HP 8 Pole AC Induction Cooling Tower Motor Frame Size 160M
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 1 years |
| Brand | Impel Motors |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Flange mounting (B5) |
| Protection Type | IP55 |
| Altitude | 1000M above sea level |
| Power Rating (kW) | 3.7 kW |
| Power (HP) | 5 HP |
| Motor Type | AC Induction Cooling Tower Motor |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 750 RPM |
| No. of Poles | 8 |
| Supply | 3 Phase AC |
| Duty Type | S1 |
| Shaft Dia (mm) | 42 mm |
| Class of insulation | F |
| Frame Size (ISI) | 160M |
| Temperature rise | Limited to class B |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 5HP 8 Pole AC Induction Cooling Tower Motor Frame Size 160M From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 5 HP, which is equivalent to 3.7 kW.
The rated speed of this motor is 750 RPM.
It operates at a voltage of 415 V with a tolerance of ±10%.
This model supports flange mounting (B5).
The frequency rating is 50 Hz with a tolerance of ±5%.
The maximum ambient temperature for this motor is 50 ºC.
It has a protection type rated at IP55.
This motor can operate at altitudes up to 1000 meters above sea level.
The shaft diameter is 42 mm.
The motor has a class F insulation rating.
The duty type is classified as S1, indicating continuous operation under rated load.
The temperature rise is limited to class B standards.
