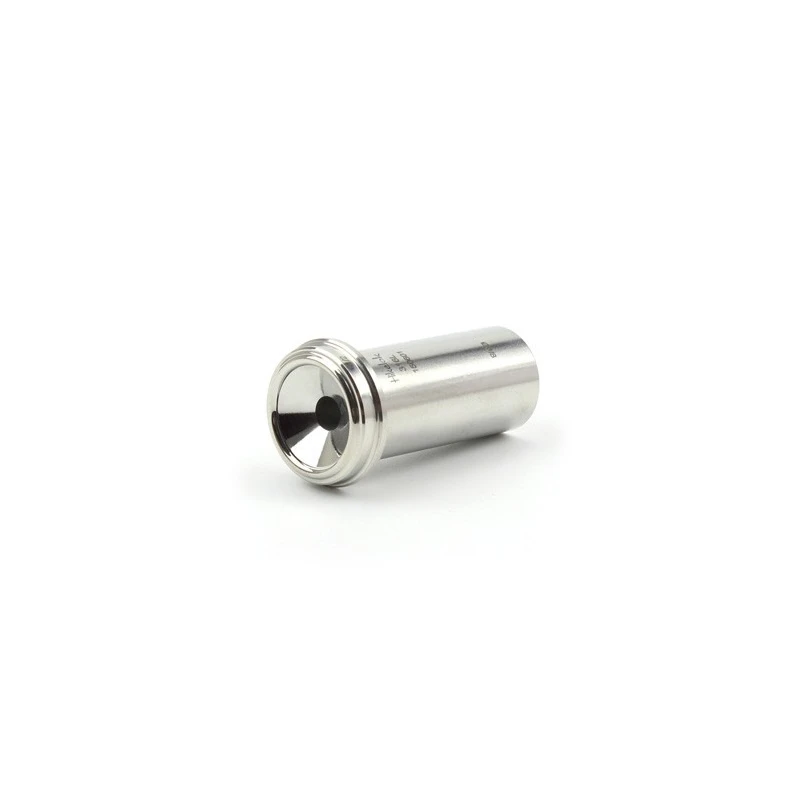

Metal Gasket Face Seal Fittings-Blind Gland Size 1/16 to 1 in. And 6 to 18mm (Set of 30)
Specifications
| Material | 316316L and 316L VAR (Vacuum Arc Remelt) stainless steel Materials are available |
|---|---|
| Applications | Industrial |
| Size Range | 1/16 to 1 in. and 6 to 18 mm |
| Type of Product | Metal Gasket Face Seal Fittings-Blind Gland Size 1/16 to 1 in.and 6 to 18 mm |
Key Features
- Standard surface finish on glands and bodies is a roughness averageof 10uin.(O.25um)Ra
- Non-rotational female nut to prevent transmission of torque
Product Description
Metal Gasket Face Seal Fittings-blind Gland Size 1/16 to 1 in. and 6 to 18 mm offer the high purity of a metal-to-metal seal, providing leak-tight service from vacuum to positive pressure. The seal on a VCR assembly is made when the gasket is compressed by two beads during the engagement of a male nut or body hex and a female nut. Available in sizes from 1/16 to 1 in.and 6 to 18 mm. Silver-plated female threads to prevent galling and ensure easy, consistent assembly. The materials include 316,316L, and 316L VAR (Vacuum Arc Remelt) stainless steel materials are available
- Female threads are silver plated to prevent gallingTwo test port for easy leak testing
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
These fittings are available in sizes from 1/16 to 1 inch and 6 to 18 mm.
The fittings are made from 316, 316L, and 316L VAR (Vacuum Arc Remelt) stainless steel materials.
These metal gasket face seal fittings are suitable for industrial applications.
The seal is created when the gasket is compressed by two beads during the engagement of a male nut or body hex and a female nut.
The female threads are silver plated to prevent galling and ensure easy, consistent assembly.
Yes, there are two test ports included for easy leak testing.
These fittings are classified as metal gasket face seal fittings, specifically designed as blind glands.
They provide leak-tight service from vacuum to positive pressure due to the high purity of a metal-to-metal seal.
The non-rotational female nut prevents the transmission of torque during assembly.
The structured data does not specify any combinations or variants available for these fittings.
The gasket plays a crucial role in creating a seal by being compressed during the engagement of the nuts in the assembly process.
