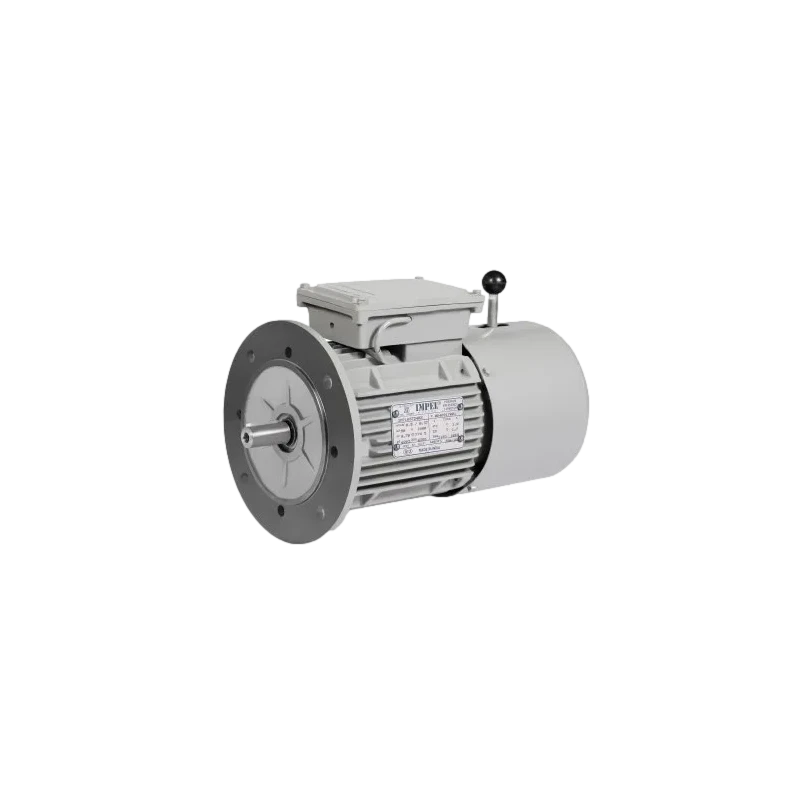

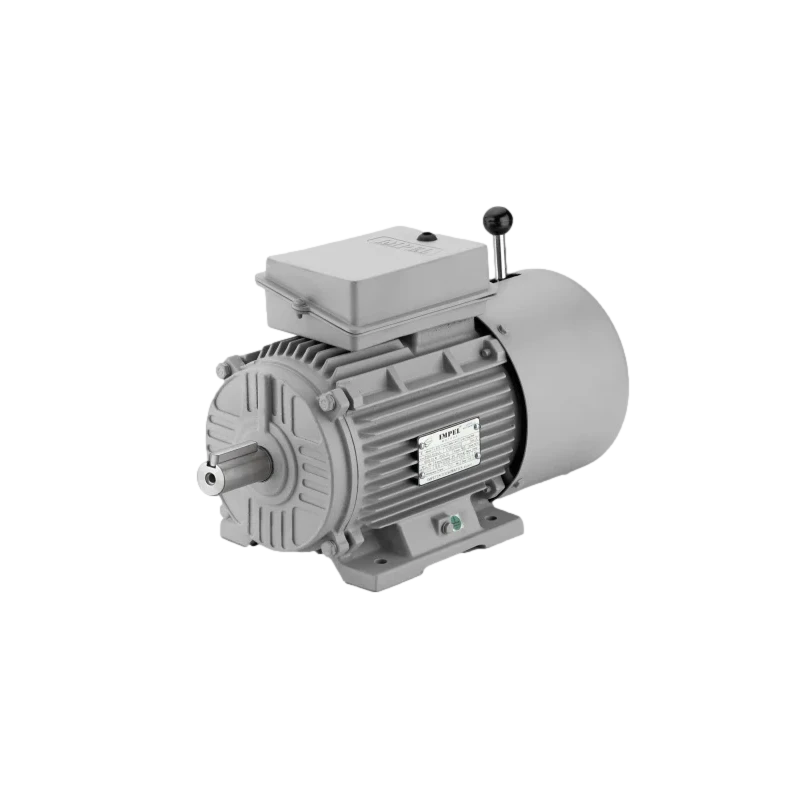

Impel 15HP 6 Pole Foot Mounting DC Break Motor Frame Size 160L
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Foot Mounting (B3) |
| Protection Type | IP55 |
| Altitude | 1000M above sea level |
| Power Rating (kW) | 11 kW |
| Power (HP) | 15 HP |
| Motor Type | AC Induction DC Brake Motor (with Emco make brake) |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 1000 RPM |
| No. of Poles | 6 |
| Supply | 3 Phase AC |
| Duty Type | S1 (Compatible to S4) |
| Class of insulation | F |
| Frame Size (ISI) | 160L |
| Temperature rise | Limited to class B |
| Break Size (No.) | 20 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 15HP 6 Pole Foot Mounting DC Break Motor Frame Size 160L From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 15 HP, which is equivalent to 11 kW.
The rated speed of this model is 1000 RPM.
This is an AC Induction DC Brake Motor with an Emco make brake.
The motor operates at a voltage of 415V with a tolerance of ±10%.
The frequency specification is 50Hz with a tolerance of ±5%.
This motor has a protection type of IP55.
The maximum ambient temperature for this motor is 50 ºC.
The frame size of this motor is 160L.
This model uses foot mounting (B3).
This motor has 6 poles.
The class of insulation for this model is F.
The motor is designed to operate at altitudes up to 1000 meters above sea level.
