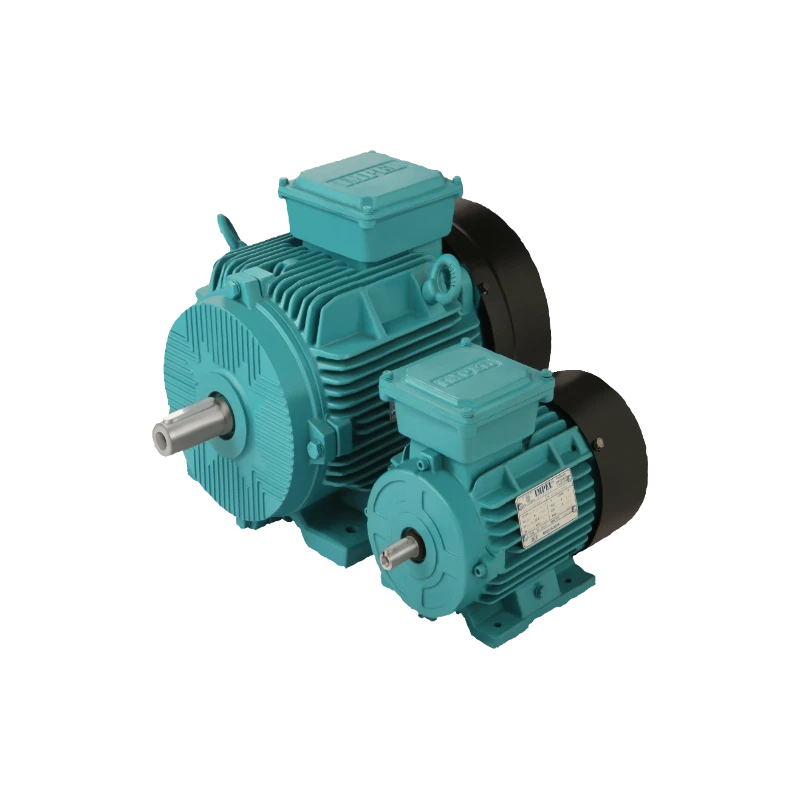

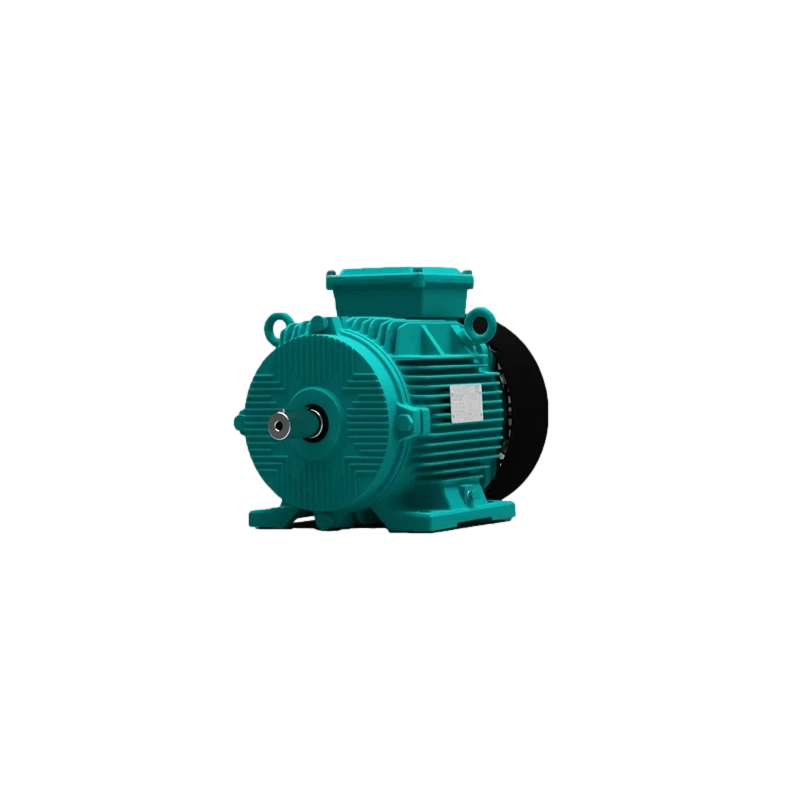

Impel 20HP 4 Pole Foot Mounting IE3 Induction Motor Frame Size 160M
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Phase | 3 Phase |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Foot Mounting (B3) |
| Protection Type | IP55 |
| Altitude | 1000M above sea level |
| Power Rating (kW) | 15 kW |
| Power (HP) | 20 HP |
| Motor Type | TEFC Squirrel Cage A C Induction Motor |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 1440 RPM |
| Series | IE3 Premium Efficiency |
| Power Factor | 0.81 |
| No. of Poles | 4 |
| Duty Type | S1 |
| Shaft Dia (mm) | 42 mm |
| Class of insulation | F |
| Frame Size (ISI) | 160M |
| Full Load Ampere At 415V | 27.85 |
| Rated Torque (Kgm) | 10.08 Kgm |
| STG Current % FLC | 750 |
| STG Torque % FLT | 215 |
| POT Torque % | 250 |
| Temperature rise | Limited to class B |
| FL Efficiency (%) IE3 | 0.921 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 20HP 4 Pole Foot Mounting IE3 Induction Motor Frame Size 160M From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 20 HP, which is equivalent to 15 kW.
This model has a frame size of 160M.
It features foot mounting (B3).
The rated speed of this induction motor is 1440 RPM.
The motor operates at a voltage of 415V with a tolerance of ±10%.
This model has a protection type of IP55.
The power factor is 0.81.
The maximum ambient temperature for this motor is 50 ºC.
It can operate at altitudes up to 1000M above sea level.
This is a TEFC Squirrel Cage A C Induction Motor.
The warranty period for this model is 2 years.
The rated torque is 10.08 Kgm.
