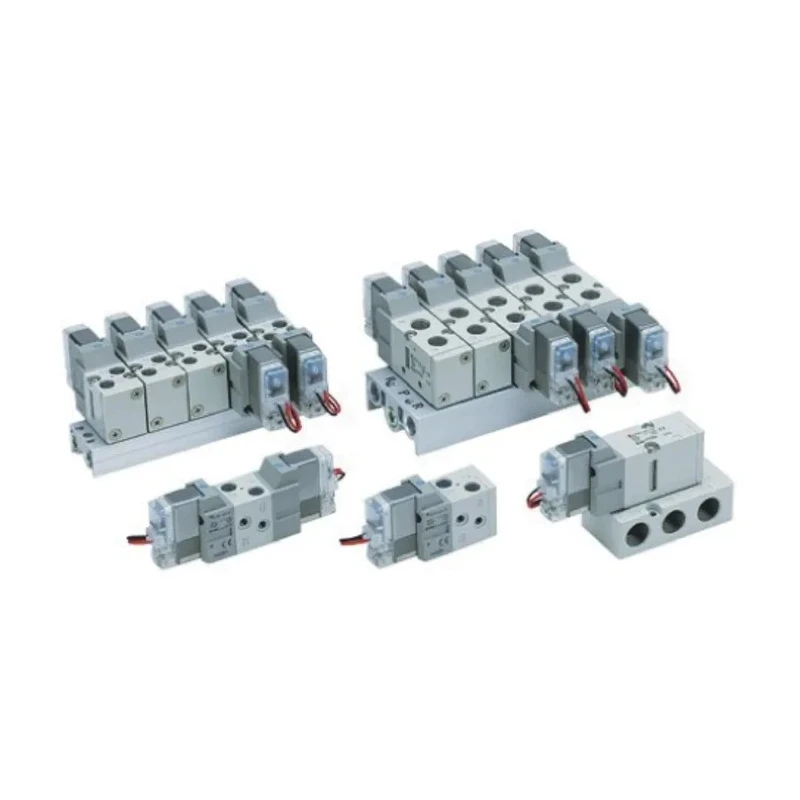

SMC Pneumatic Solenoid Valve Pilot G 1/4 Thread, 5 Port Die Cast Aluminium Body, 240V AC VF3000 Series
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 240V ac |
| Brand | SMC |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 0.9 Mpa |
| Model | VF3000 |
| Mount Type | Body Ported, Base |
| Series | VF3000 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Thread Size | 1/4 in |
| Port Size | G 1/4 |
| Seal Material | Fluorelastomer, Hydrogenated Nitrile Rubber |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Pilot |
| Maximum Flow Rate | 981NL/min |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 715-0795Brand: SMCManufacturers Part No.: VF3130-7DZ1-02F |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 0.15MPa |
| SMC Pneumatic Solenoid Valve - Pilot G VF3000 SeriesRS Stock No. | 715-0795Brand: SMCManufacturers Part No.: VF3130-7DZ1-02F |
| SMC Pneumatic Solenoid Valve - 5/2 Solenoid/Spring G VF3000 Series 120V acBrand | SMC |
Key Features
- Operates at 240V AC with low power consumption for cost-effective use.
- Features die cast aluminium body for durability and corrosion resistance.
- Includes integrated strainer in pilot valve to prolong service life.
- Functions within temperature range of -10°C to 50°C for varied industrial environments.
- Supports maximum operating pressure of 0.9 MPa and minimum pilot pressure of 0.15 MPa.
- Seal materials include fluorelastomer and hydrogenated nitrile rubber ensuring chemical resistance.
- Compact design offers a maximum flow rate of 981 NL/min.
- Non-locking manual override allows easy manual operation during testing or maintenance.
Product Description
SMC VF3130-7DZ1-02F Pneumatic Solenoid Valve from the VF3000 series is a high-performance 5 port valve designed for pilot operation using a 240V AC power supply. It offers a compact design with a die cast aluminium body that ensures durability in demanding industrial settings.
The valve features a built-in strainer within the pilot valve, contributing to extended operational reliability by preventing contamination. Its seals are made of fluorelastomer and hydrogenated nitrile rubber, providing resistance against chemical degradation and enhancing longevity.
Operating within the temperature range of -10°C to 50°C and a maximum pressure rating of 0.9 MPa, this valve is suitable for varied pneumatic applications including fluid power control, automation systems, and manufacturing processes.
With a maximum flow rate of 981 NL/min and a minimum pilot pressure of 0.15 MPa, the valve ensures efficient and precise control of pneumatic circuits. It includes a non-locking manual override for easy manual actuation during maintenance or testing, improving operational flexibility.
The VF series’s reduced power consumption supports cost-effective operation and compatibility with PLC direct operation, making it a reliable choice in industrial automation environments.
Certified RoHS compliant, the valve supports environmentally responsible practices and aligns with modern regulatory standards. Operates with low power consumption for cost efficiency. Die cast aluminium body offers robustness and corrosion resistance.
Built-in pilot valve strainer improves system reliability. Seal materials ensure chemical and temperature resilience. Wide operating temperature and pressure ranges for versatility. Non-locking manual override facilitates manual control.
High flow rate for superior pneumatic performance. RoHS compliant, supporting sustainable industrial practices.
Commonly used in industrial, manufacturing, HVAC, and automation pneumatic systems, the SMC VF3130-7DZ1-02F valve meets rigorous demands for reliability and performance. Available with a G 1/4 port size and G thread standard, it originates from Japan, reflecting high production standards.
Explore additional pneumatic valves and automation products from SMC on EnvMart for integrated industrial solutions.
Explore more products in our Pneumatic Solenoid Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 0.9 MPa.
This model operates at a voltage of 240V AC.
It has a maximum flow rate of 981 NL/min.
The seals are made of fluorelastomer and hydrogenated nitrile rubber, providing chemical resistance.
The operating temperature range is from -10°C to 50°C.
This valve features 5 ports.
It uses pilot actuation.
The connection thread size is G 1/4.
Yes, it includes a built-in strainer in the pilot valve to prevent contamination and prolong service life.
This solenoid valve is manufactured in Japan.
Yes, it is RoHS compliant, supporting environmentally responsible practices.
It supports body ported and base mounting types.
