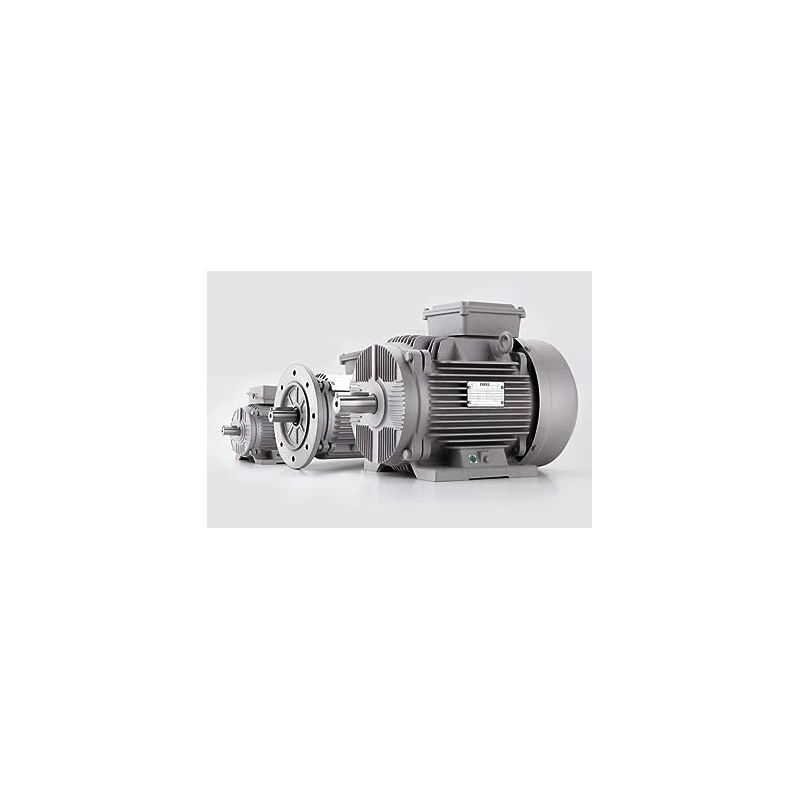

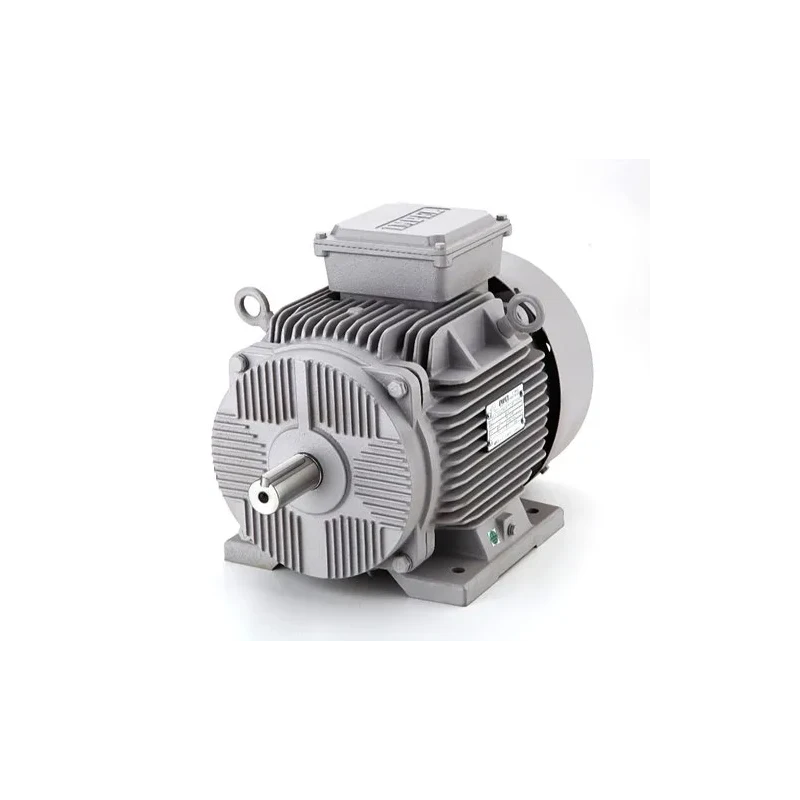

Impel 0.5HP 8 Pole Foot Mounting AC Induction Motor Frame Size 90S
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Phase | 3 Phase |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Foot Mounting (B3) |
| Protection Type | IP44/IP55 |
| Altitude | 1000M above sea level |
| Power Rating (kW) | 0.37 kW |
| Power (HP) | 0.5 HP |
| Motor Type | TEFC Squirrel Cage A C Induction Motor |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 750 RPM |
| Series | IE2 |
| No. of Poles | 8 |
| Duty Type | S1 |
| Shaft Dia (mm) | 24 mm |
| Class of insulation | F |
| Frame Size (ISI) | 90S |
| Temperature rise | Limited to class B |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 0.5HP 8 Pole Foot Mounting AC Induction Motor Frame Size 90S From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 0.37 kW, which is equivalent to 0.5 HP.
This model has a frame size of 90S.
The rated speed of this induction motor is 750 RPM.
It features foot mounting (B3) for installation.
The motor operates at a voltage of 415V with a tolerance of ±10%.
The frequency specification is 50Hz with a tolerance of ±5%.
This motor has a protection type rating of IP44/IP55.
The ambient temperature limit for operation is 50 ºC.
This induction motor has 8 poles.
The body of the motor is made from cast iron.
The motor has a class of insulation rated as F.
This motor can operate at altitudes up to 1000 meters above sea level.
