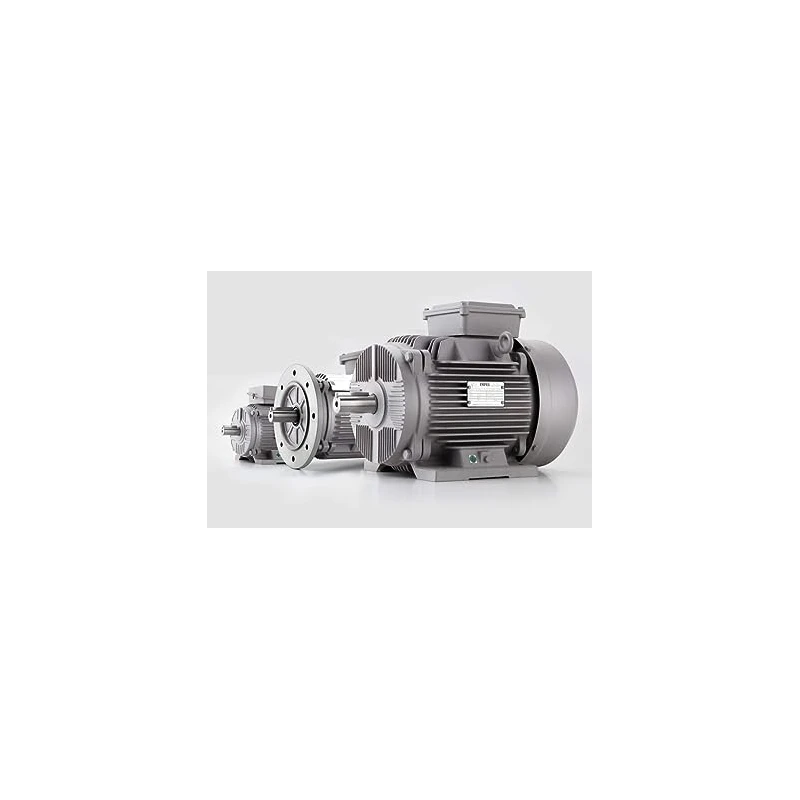

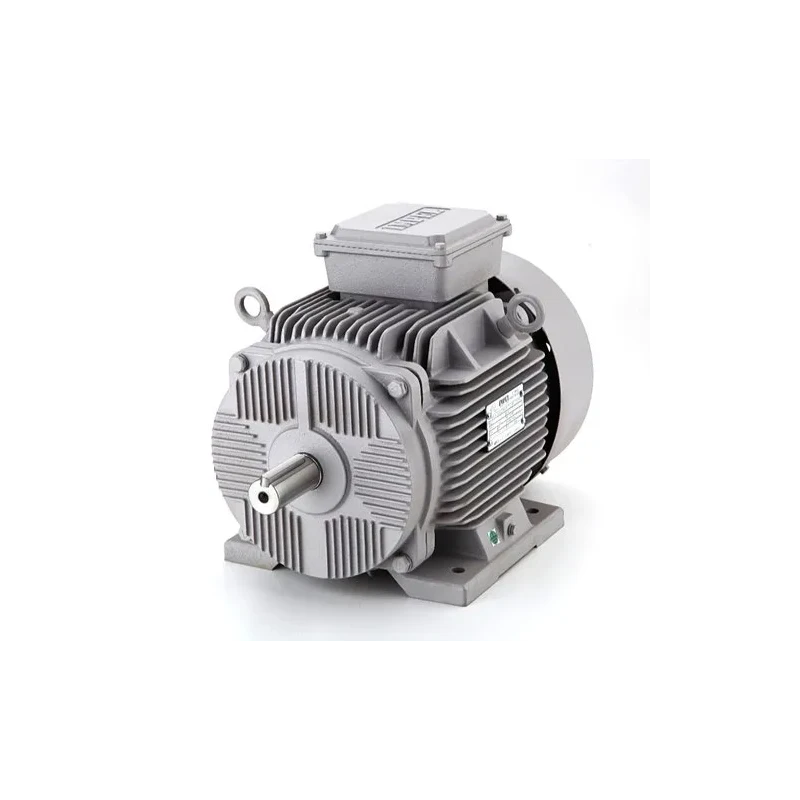

Impel 25HP 4 Pole Flange Mounting AC Induction Motor Frame Size 180M
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Phase | 3 Phase |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Flange mounting (B5) |
| Protection Type | IP44/IP55 |
| Power Rating (kW) | 18.5 kW |
| Power (HP) | 25 HP |
| Motor Type | TEFC Squirrel Cage A C Induction Motor |
| Availability | 1-2 Weeks |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 1440 RPM |
| Power Factor | 0.82 |
| No. of Poles | 4 |
| Duty Type | S1/Continuous |
| Shaft Dia (mm) | 48 mm |
| Class of insulation | F |
| Frame Size (ISI) | 180M |
| Full Load Ampere At 415V | 34.1 |
| Rated Torque (Kgm) | 12.14 Kgm |
| STG Current % FLC | 700 |
| STG Torque % FLT | 230 |
| POT Torque % | 250 |
| FL Efficiency (%) IE2 | 0.912 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 25HP 4 Pole Flange Mounting AC Induction Motor Frame Size 180M From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 25 HP, which is equivalent to 18.5 kW.
The rated speed of this model is 1440 RPM.
It features flange mounting, specifically designed as B5.
The motor operates within a voltage range of 415V ± 10%.
The motor is designed to operate at a frequency of 50Hz ± 5%.
This model has a protection type rating of IP44/IP55.
The motor can operate at ambient temperatures up to 50 ºC.
The full load current at 415V is 34.1 Amperes.
The rated torque for this motor is 12.14 Kgm.
This model has a class F insulation rating.
It is a TEFC (Totally Enclosed Fan Cooled) squirrel cage AC induction motor.
The motor comes with a warranty period of 2 years.
