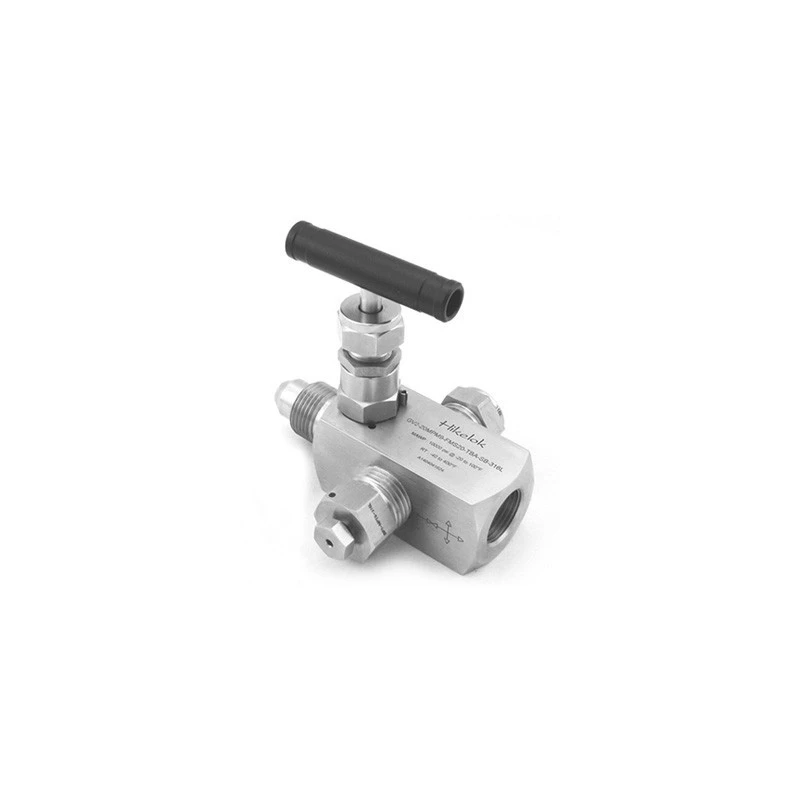

Gauge Valves Maximum Outlet Pressure Up to 10000 psig (689 bar) GV2 Series
Specifications
| Applications | Industrial |
|---|---|
| Working Temperature | PTFE packing from -65 Degree F to 450 Degree F (-54 to 232 ) Graphite packing from -65 Degree F to 1200 Degree F (-54 Degree C to 649 Degree C) |
| Orifice Size | 0.16 Inch (4.0 mm) |
| Maximum outlet pressure | Up to 10000 psig (689 bar) |
Key Features
- Handle of different colors available for option
- Safety back seating seals in fully open position
Product Description
Gauge Valves Maximum Outlet Pressure Up to 10000 psig (689 bar), GV2 Series is stainless steel structure, non rotating ball head and plug head stem design, rod-shaped through hole (plug head design), extend the valve body to obtain insulation distance, 1 / 2 and 3 / 4 in. External thread to 1 / 2 in. NPT internal thread termination, 1 / 2 in. Internal thread standard pressure gauge interface, 160 specification nominal pipe wall or thicker to enhance the strength of valve inlet joint, standard bonnet positioning plate
- Rolled spindle operating threads Lubricant for stem thread isolated from the media
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum outlet pressure of the GV2 Series gauge valves is up to 10000 psig (689 bar).
The gauge valves are constructed from stainless steel, ensuring strength and durability in industrial applications.
The working temperature range for PTFE packing is from -65°F to 450°F (-54°C to 232°C).
The orifice size of the GV2 Series gauge valves is 0.16 inch (4.0 mm).
The valves can be equipped with PTFE packing or graphite packing, with the latter suitable for temperatures up to 1200°F (649°C).
The standard pressure gauge interface for the GV2 Series is a 1/2 inch internal thread.
Yes, the gauge valves feature safety back seating seals that ensure the valve is secure in the fully open position.
The valve termination is available in external thread sizes of 1/2 inch and 3/4 inch to 1/2 inch NPT internal thread.
These gauge valves are suitable for industrial applications.
The valves are designed with a nominal pipe wall specification of 160 or thicker to enhance the strength of the valve inlet joint.
The gauge valves feature a non-rotating ball head and a plug head stem design, which includes a rod-shaped through hole.
Yes, the lubricant for the stem thread is isolated from the media to ensure proper functioning.
