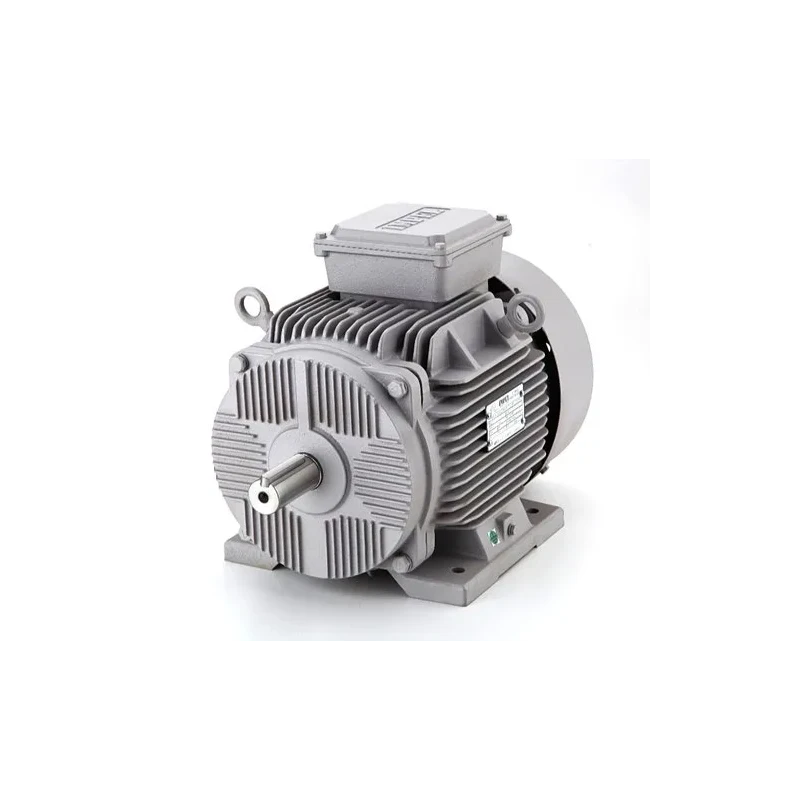

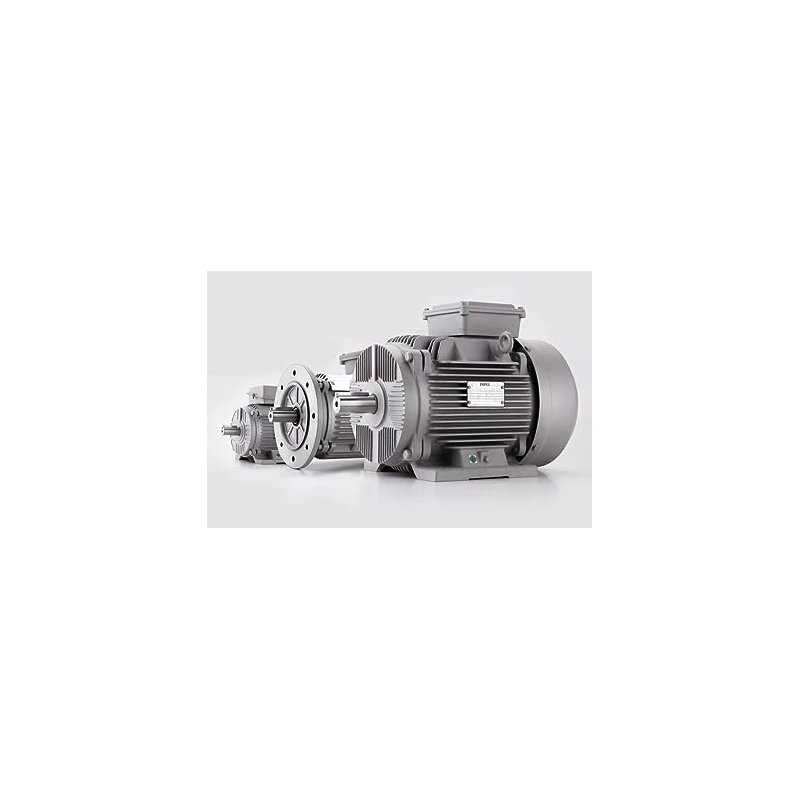

Impel 12.5HP 4 Pole Foot Mounting AC Induction Motor Frame Size 160M
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Phase | 3 Phase |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Foot Mounting (B3) |
| Protection Type | IP44/IP55 |
| Power Rating (kW) | 9.3 kW |
| Power (HP) | 12.5 HP |
| Motor Type | TEFC Squirrel Cage A C Induction Motor |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 1440 RPM |
| Power Factor | 0.84 |
| No. of Poles | 4 |
| Duty Type | S1/Continuous |
| Shaft Dia (mm) | 42 mm |
| Class of insulation | F |
| Frame Size (ISI) | 160M |
| Full Load Ampere At 415V | 13.8 |
| Rated Torque (Kgm) | 5.02 Kgm |
| STG Current % FLC | 700 |
| STG Torque % FLT | 200 |
| POT Torque % | 250 |
| FL Efficiency (%) IE2 | 0.887 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 12.5HP 4 Pole Foot Mounting AC Induction Motor Frame Size 160M From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 12.5 HP, which is equivalent to 9.3 kW.
It operates at a voltage of 415V with a tolerance of ±10%.
The rated speed of this induction motor is 1440 RPM.
This motor features foot mounting (B3).
The motor can operate at an ambient temperature of up to 50 ºC.
It has a protection rating of IP44/IP55.
This model is designed for 3-phase operation.
The full load current at 415V is 13.8 Amperes.
The rated torque of this motor is 5.02 Kgm.
The full load efficiency of this model is 88.7% (IE2).
The motor has a class F insulation rating.
The body of the motor is made from cast iron.
