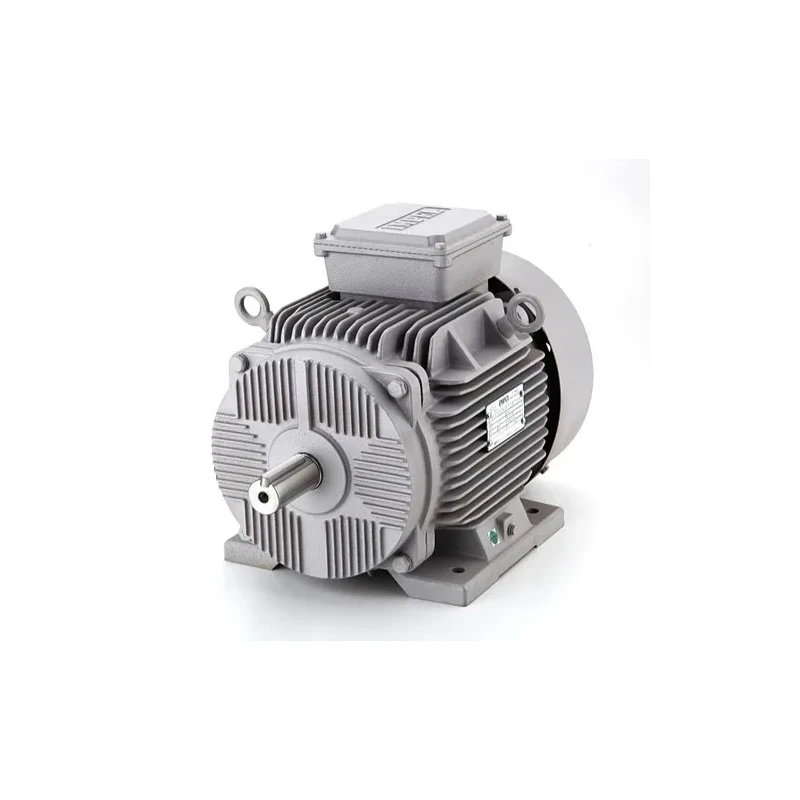

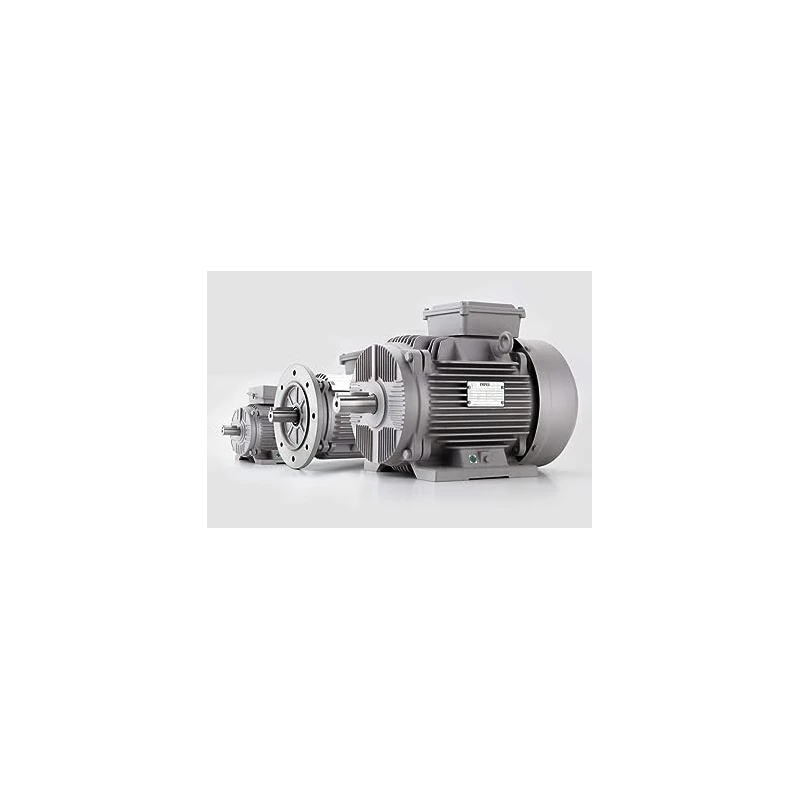

Impel 20HP 2 Pole Flange Mounting AC Induction Motor Frame Size 160M
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Phase | 3 Phase |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Flange mounting (B5) |
| Protection Type | IP44/IP55 |
| Power Rating (kW) | 15 kW |
| Power (HP) | 20 HP |
| Motor Type | TEFC Squirrel Cage A C Induction Motor |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 2880 RPM |
| Power Factor | 0.88 |
| No. of Poles | 2 Pole |
| Duty Type | S1/Continuous |
| Shaft Dia (mm) | 42 mm |
| Class of insulation | F |
| Frame Size (ISI) | 160M |
| Full Load Ampere At 415V | 27.2 |
| Rated Torque (Kgm) | 4.90 Kgm |
| STG Current % FLC | 700 |
| STG Torque % FLT | 200 |
| POT Torque % | 240 |
| FL Efficiency (%) IE2 | 0.903 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 20HP 2 Pole Flange Mounting AC Induction Motor Frame Size 160M From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 20 HP (15 kW).
The rated speed of this model is 2880 RPM.
It features a flange mounting (B5) design.
The motor operates at a voltage of 415V with a tolerance of ±10%.
This model can operate at an ambient temperature of up to 50 ºC.
The motor has a protection type rating of IP44/IP55.
It is a 3-phase motor.
The full load ampere rating at 415V is 27.2 A.
The rated torque for this model is 4.90 Kgm.
It has a class F insulation rating.
The full load efficiency of this motor is 90.3% (IE2).
The body of this motor is made of cast iron.
