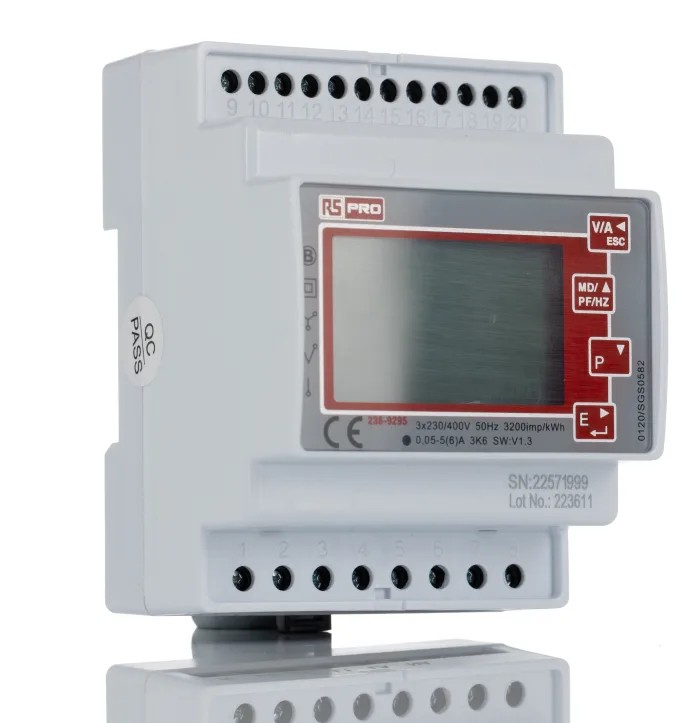

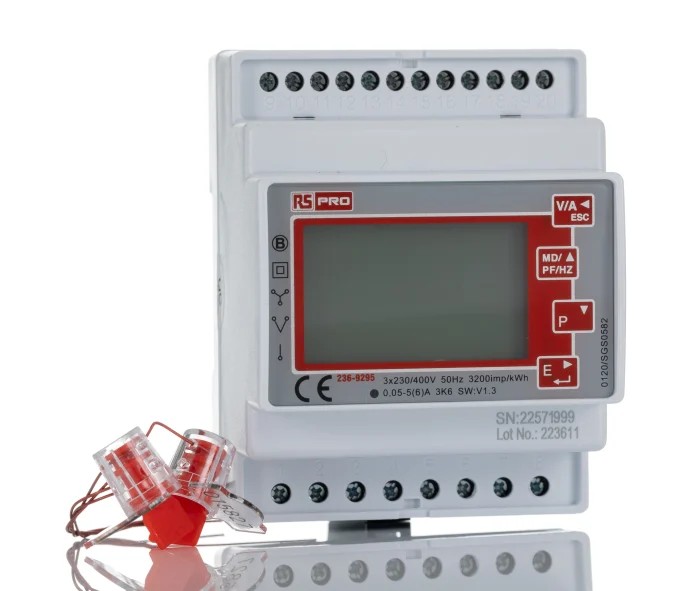

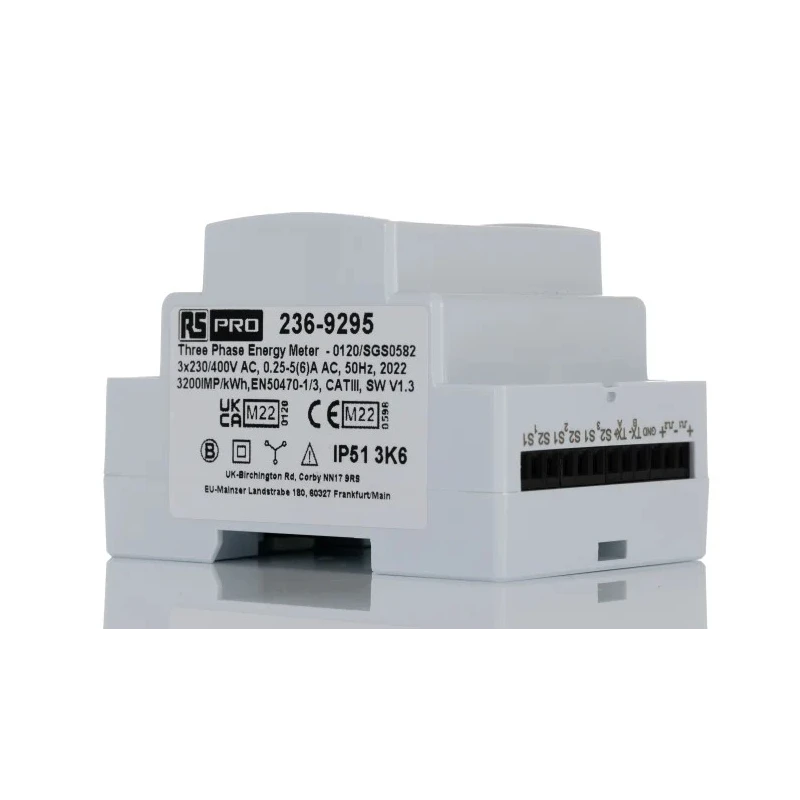

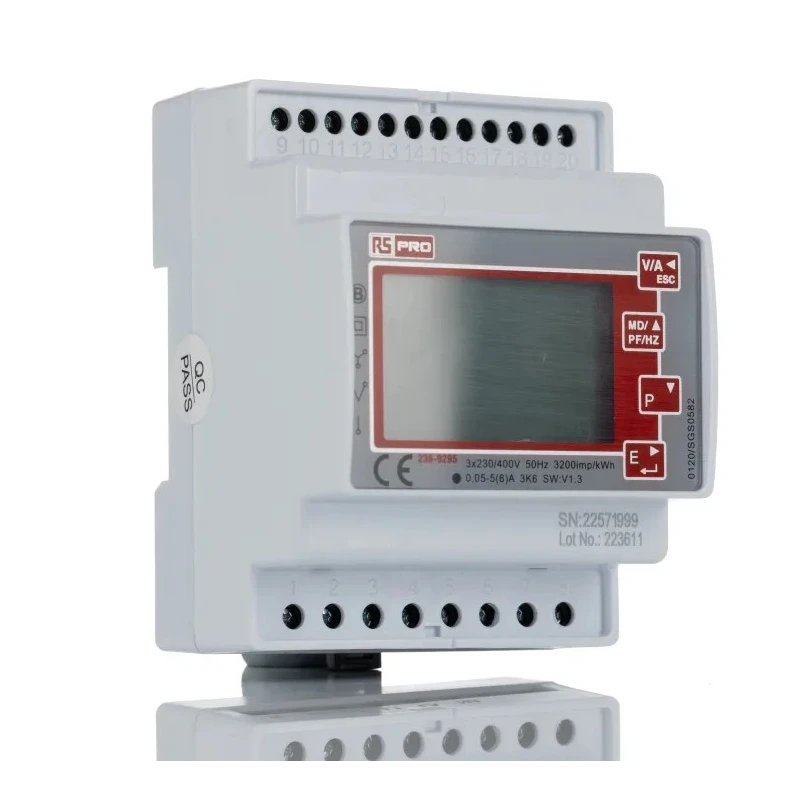

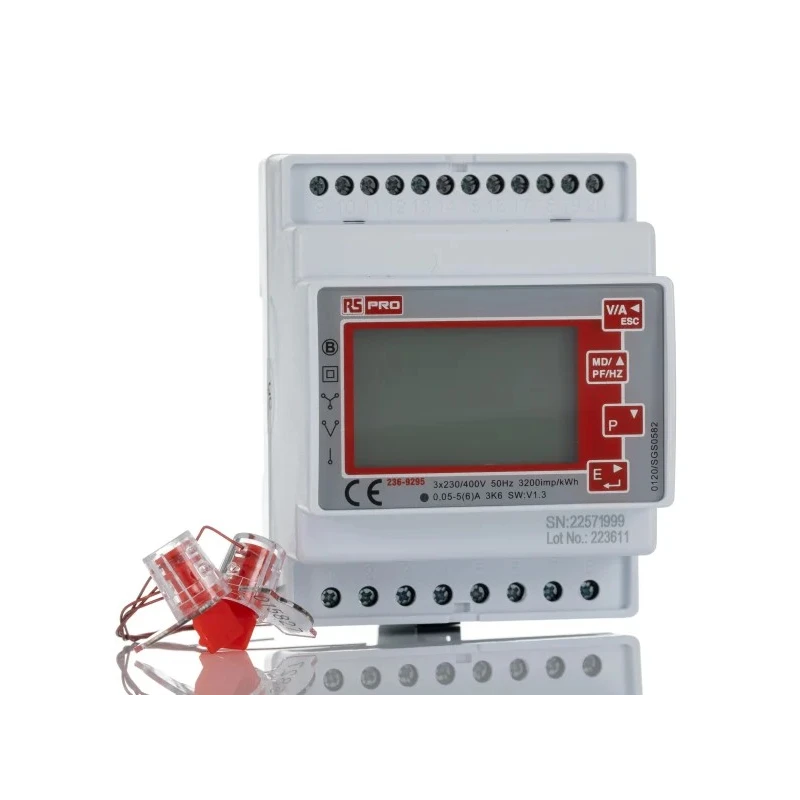

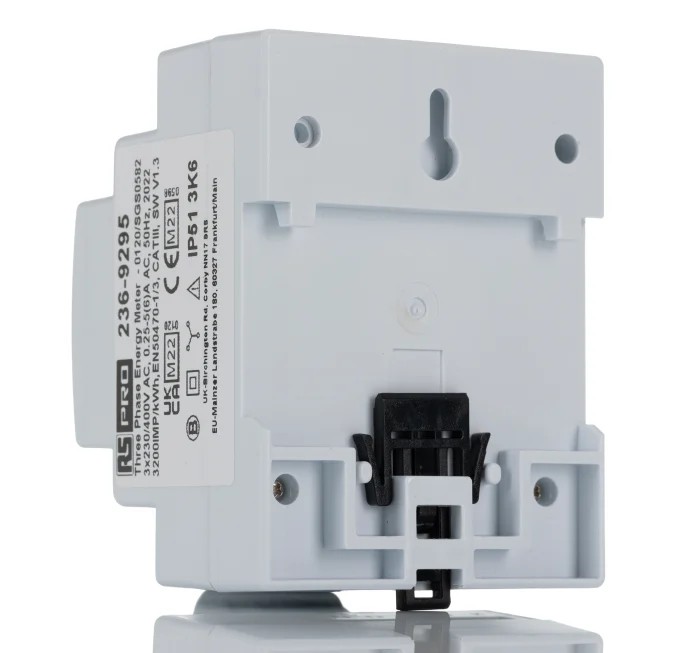

RS PRO 3 Phase Multifunction LCD Backlight Energy Meter with Pulse Output and RS485 Modbus 236-9295

RS PRO 236-9295 is a 3 Phase Multifunction Energy Meter equipped with a digital LCD backlight display, designed for precise electrical power quality measurement and monitoring in industrial and commercial environments.

This energy meter supports both single phase (1P2W) and three phase (3P3W, 3P4W) network types, accommodating voltage ranges from 100 to 289V AC (phase to neutral) and 173 to 500V AC (phase to phase). It measures multiple electrical parameters including voltage, current, power, active and reactive energy (kWh and kVarh), with the ability to track maximum demand current over configurable time intervals up to 60 minutes.

The meter uses current transformers (CT) either 1A or 5A secondary settable to interface with AC circuits, providing flexibility for various applications. The built-in RS485 Modbus RTU and pulse outputs enable seamless integration with Building Management Systems (BMS) and remote monitoring setups. Configuration is secured through password protection to ensure authorized access only.

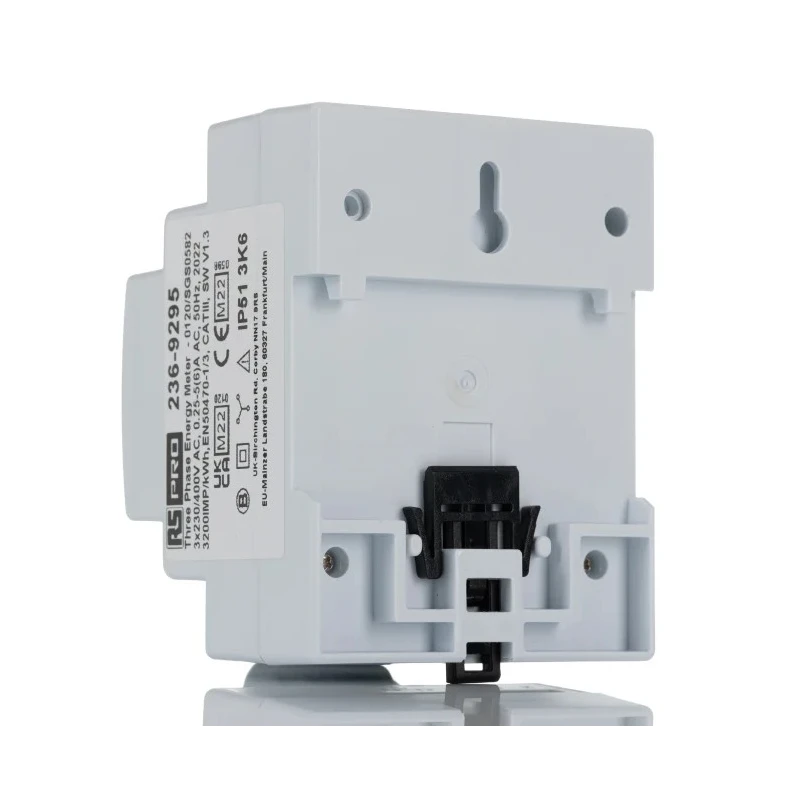

Certified with the MID B&D approval (EC Type Examination Certificate Number 0120/SGS0582), it confirms compliance with legal metrology requirements, making it suitable for sub billing, revenue, and tariff billing purposes. The meter is mounted on a DIN rail with a compact depth of 63mm and operates reliably in ambient temperatures ranging from -25°C to 55°C.

The device features a blue backlit digital display with touch screen buttons, showing 8 digits for clear readability of measured parameters. Its multifunctional capability spans 16 different electrical parameters, including power direction detection to warn of CT installation errors.

Multifunction meter compatible with 1P2W, 3P3W, and 3P4W supplies. Measures voltage, current, active/reactive energy, and max demand current. Built-in dual pulse outputs and RS485 Modbus RTU communication interface. Supports 1A or 5A current transformer inputs for accurate measurement.

Digital LCD backlight display with 8 digits and touch screen controls. Certified MID B&D approved for billing and tariff applications. Compact design with 63mm depth suitable for DIN rail installation. Operating temperature range from -25°C to 55°C ensuring wide applicability.

Password protected to secure meter configuration and data integrity. Compliant with CE, RoHS, RS-485, and MODBUS standards for quality and interoperability.

This RS PRO Energy Meter is ideal for industrial, commercial, laboratory, and electrical automation use cases where accurate energy measurement, advanced multifunction monitoring, and communication capability are required. Its integration readiness and reliability provide essential power quality insights for energy management and regulatory compliance.
