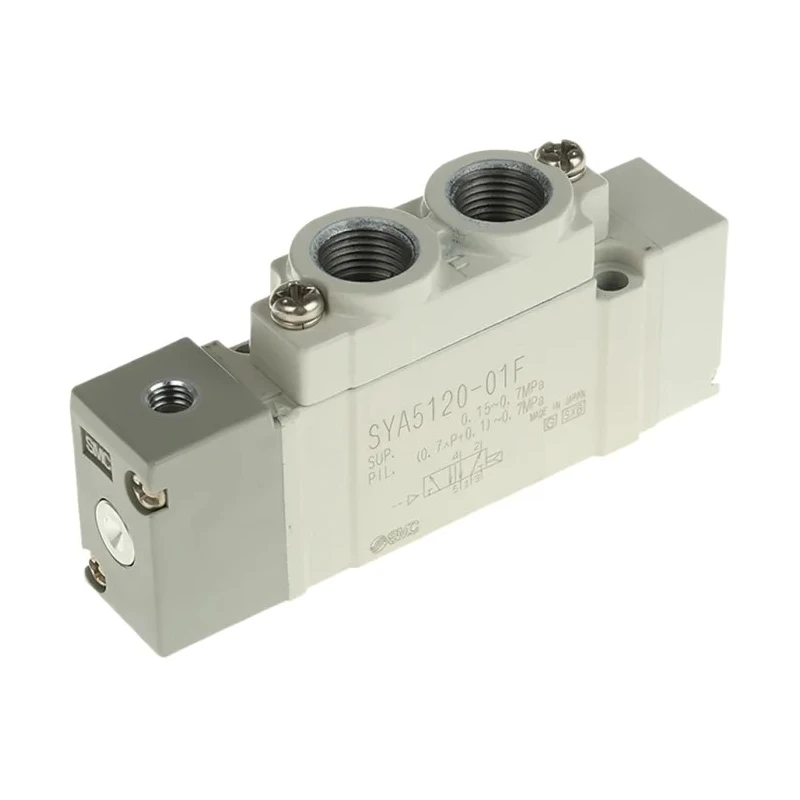

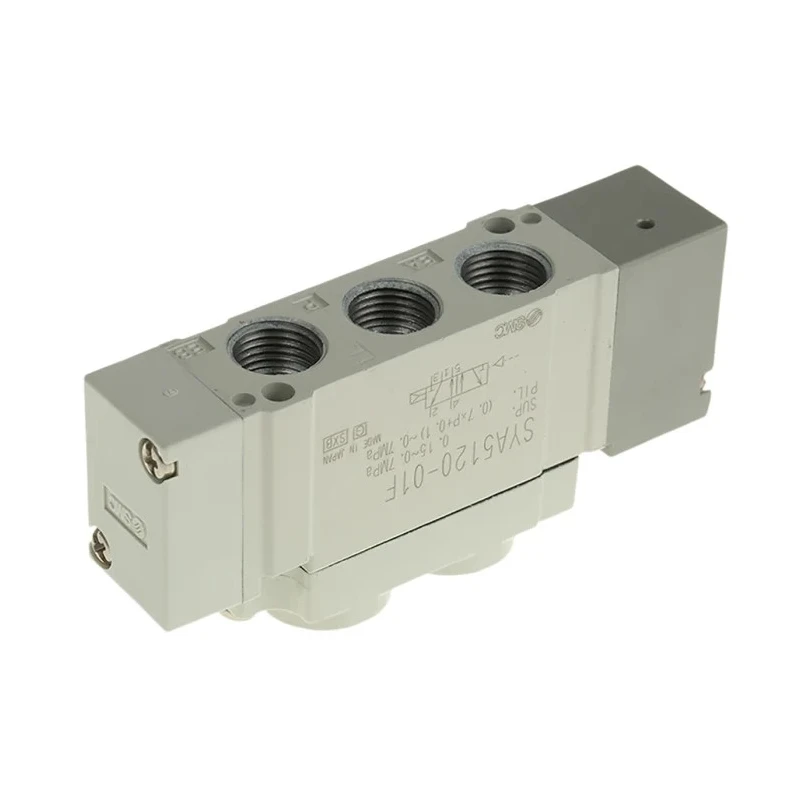

SMC Pneumatic Solenoid Valve Pilot G 1/8, 5-Port, 0.7 MPa, NC, Aluminium Body SY5000 Series

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve Pilot G 1/8, 5-Port, 0.7 MPa, NC, Aluminium Body SY5000 Series



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	80mm
Length	97mm
Model	SY5000
Width	40mm
Mount Type	Base
Series	SY5000
Number Of Ports	5
Maximum Operating Temperature	60°C
Thread Size	1/8 in
Number of Positions	2
Port Size	G 1/8
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-10°C
Actuation Type	Pilot
Maximum Flow Rate	578NL/min
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	701-3160Brand: SMCManufacturers Part No.: SYA5120-01FDistrelec Article No.: 154-22-930
Connection Thread Standard	G 1/8
Minimum Pilot Pressure	0.1MPa
Valve Function	NC
Port Gender	Female
SMC Pneumatic Solenoid Valve - Pilot G 1/8 SY5000 SeriesRS Stock No.	701-3160Brand: SMCManufacturers Part No.: SYA5120-01FDistrelec Article No.: 154-22-930

Key Features

Operates with a pilot actuation type for efficient control.
Constructed with an aluminium body for durability and lightweight use.
Features a nitrile rubber (NBR) seal material for reliable sealing.
Designed for operation within temperatures from -10°C to 60°C.
Compact dimensions measuring 97mm length, 80mm height, and 40mm width.
Supports a maximum flow rate of 578 NL/min with female G 1/8 port thread size.
Includes a base mount type for secure installation.
Offers a two-position valve function suitable for diverse pneumatic systems.

Product Description

SMC SYA5120-01F Pneumatic Solenoid Valve Pilot G 1/8 from the SY5000 series is engineered for precise pneumatic control with pilot actuation. The valve incorporates a robust aluminium body complemented by nitrile rubber seals, delivering enduring performance for industrial environments.

This 5-port valve features a normally closed function tailored for applications requiring secure shutoff under pneumatic pressure. It supports a maximum operating pressure of 0.7 MPa, with pilot pressures ranging from 0.1 MPa to 0.7 MPa, ensuring reliable actuation across varied system demands.

Designed for adaptability, the valve is base-mounted and equipped with female G 1/8 connection threads compatible with SY manifolds. Compact dimensions (97mm length, 80mm height, 40mm width) facilitate integration into constrained spaces typical in industrial automation, manufacturing process control, and fluid power systems.

Its operational temperature span (-10°C to 60°C) ensures dependable function in diverse environments. The valve enables a maximum flow rate of 578 NL/min, suitable for efficient pneumatic signaling and control.

This product reflects SMC’s commitment to quality, exhibiting a long service life and low power consumption, enabling direct operation by PLCs. The SYA series is noted for ease of use with a non-locking manual override function, supporting maintenance and operational flexibility.

Operates with a pilot actuation type for efficient control. Constructed with an aluminium body for durability and lightweight use. Features a nitrile rubber (NBR) seal material for reliable sealing. Designed for temperatures ranging from -10°C to 60°C.

Compact size facilitates versatile installation. Supports high flow rate of 578 NL/min. Includes a base mount type ensuring stable fitting. Equipped with 5 ports and 2 positions for operational flexibility. Enables use with SY manifolds for manifold system integration.

Manufactured in Japan, assuring premium quality standards.

This SMC Pneumatic Solenoid Valve SYA5120-01F is ideal for pneumatic system automation, fluid power management, HVAC control, and manufacturing applications. Explore EnvMart for more pneumatic valves and industrial automation components.
