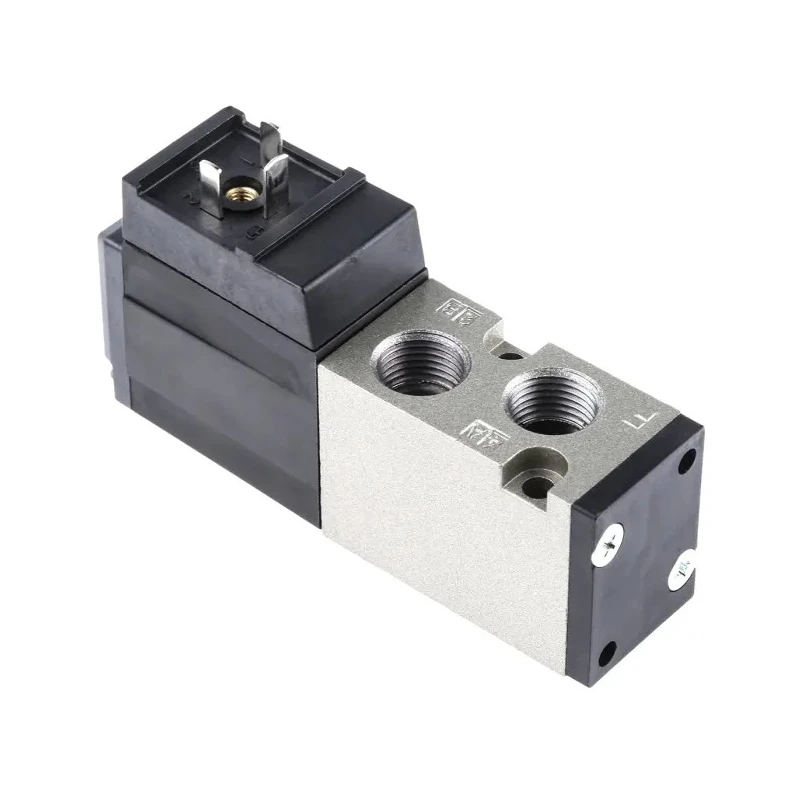

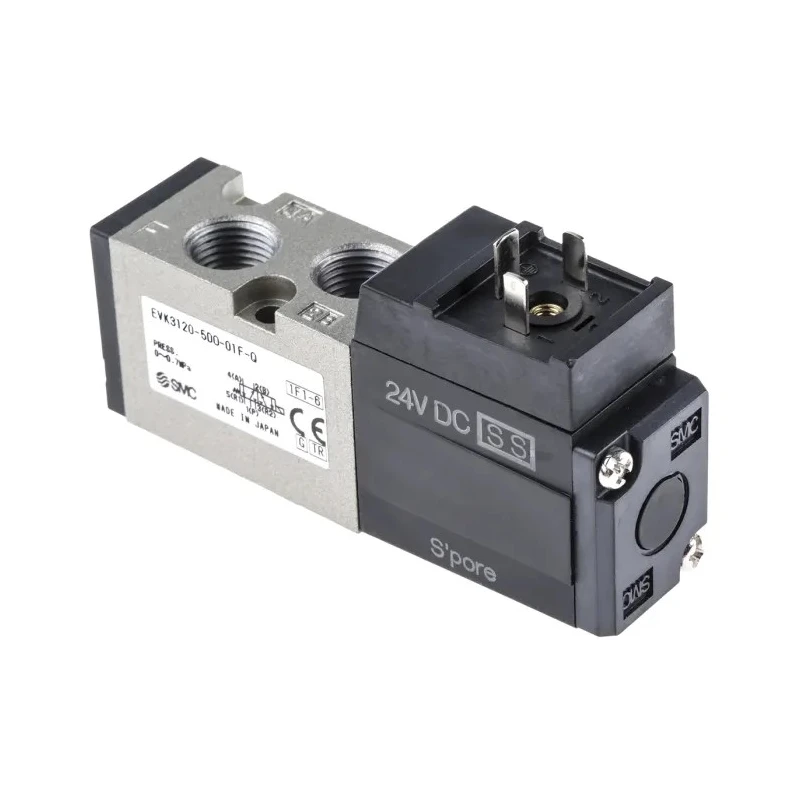

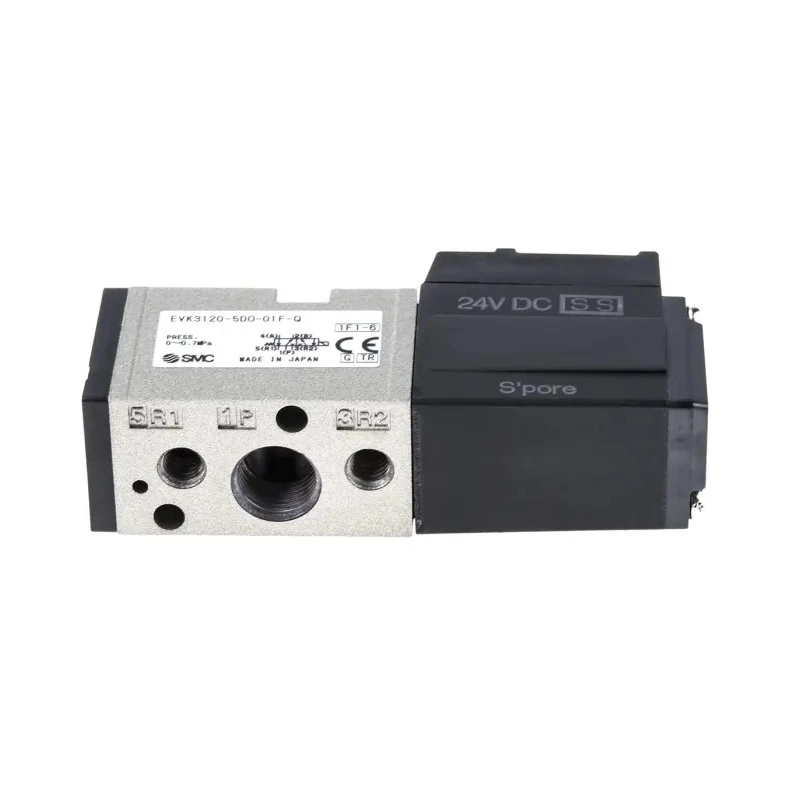

SMC Pneumatic Solenoid Valve 5/2 Single Solenoid G 1/8 Port Die Cast Aluminium Body 24V DC 4W VK3000
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 24V dc |
| Brand | SMC |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 0.7 Mpa |
| Height | 89.5mm |
| Length | 45mm |
| Model | VK3000 |
| Width | 45mm |
| Mount Type | Stand Alone |
| Series | VK3000 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | 1/8 in |
| Seal Material | Rubber |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 166NL/min |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-8739Brand: SMCManufacturers Part No.: EVK3120-5DO-01F-QDistrelec Article No.: 154-22-744 |
| Connection Thread Standard | G 1/8 |
| Minimum Pilot Pressure | 0MPa |
| Valve Function | 5/2 |
| Electrical Connection Type | DIN Connector |
| Solenoid Type | Single |
| Solenoid Power Consumption | 4W |
Key Features
- Operates with 24V DC voltage and consumes 4W power for efficient solenoid control.
- Designed with 5 ports and 2 positions to control pneumatic flow precisely.
- Capable of handling maximum operating pressure of 0.7 Mpa with a flow rate of 166 NL/min.
- Constructed with a robust die cast aluminium body and rubber seals for durability and leak resistance.
- Compact dimensions of 89.5mm height, 45mm width, and 45mm length enable easy integration in compact assemblies.
- Stand-alone mount type with DIN connector for electrical connection ensures versatile installation.
- Operates reliably within temperature range from -10°C to 50°C suitable for diverse industrial environments.
- Complies with RoHS standards ensuring environmental and safety compliance.
Product Description
SMC VK3000 Pneumatic Solenoid Valve EVK3120-5DO-01F-Q is a high-quality 5/2 valve featuring a single solenoid actuation operated at 24V DC power with 4W consumption. This valve is designed for precise control of pneumatic flow using a G 1/8 port size connection thread standard and features a robust die cast aluminium body with rubber seal material for enhanced durability and leak resistance.
The valve includes 5 ports and 2 positions, capable of handling a maximum operating pressure of 0.7 Mpa and delivering a maximum flow rate of 166 NL/min. It operates efficiently within a temperature range of -10°C to 50°C, making it suitable for various industrial applications including manufacturing, fluid power control, automation, and pneumatic tool systems.
The compact dimensions of 89.5 mm height, 45 mm width, and 45 mm length allow the valve to be installed in confined spaces, while the stand-alone mount type with DIN connector electrical connection offers straightforward integration into pneumatic circuits.
With compliance to RoHS standards, this valve meets environmental and safety regulations. Manufactured in Japan, it ensures precision engineering and reliable performance for demanding industrial operations.
Operates at 24V DC voltage with 4W solenoid power consumption for efficient control. Features 5 ports and 2-way positions for precise pneumatic flow management. Robust die cast aluminium body paired with rubber seal material for durability.
Compact size for versatile installation in industrial pneumatic setups. Can withstand maximum operating pressure of 0.7 Mpa with high flow capacity. Wide operational temperature range of -10°C to 50°C suits diverse environments.
Stand-alone mount and DIN connector provide ease of electrical connectivity. Compliant with RoHS standards for eco-friendly operation. Manufactured in Japan ensuring premium quality and reliability.
This pneumatic solenoid valve is ideal for industrial automation, fluid power management, and machinery control systems. It offers reliability, compactness, and effective pneumatic control in various industrial and manufacturing applications. Explore SMC pneumatic valves on EnvMart for comprehensive fluid power solutions.
Explore more products in our Pneumatic Solenoid Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this model is 0.7 Mpa.
This unit has a maximum flow rate of 166 NL/min.
It operates at a voltage of 24V DC.
The dimensions are 89.5 mm in height, 45 mm in width, and 45 mm in length.
It features a DIN connector for electrical connection.
The body is made of die cast aluminium, providing durability and leak resistance.
It operates efficiently within a temperature range of -10°C to 50°C.
This valve has 5 ports and operates in 2 positions.
This model features single solenoid actuation.
Yes, it complies with RoHS standards for environmental and safety compliance.
The connection thread standard is G 1/8.
This solenoid valve is suitable for various industrial applications including manufacturing, fluid power control, and automation.
