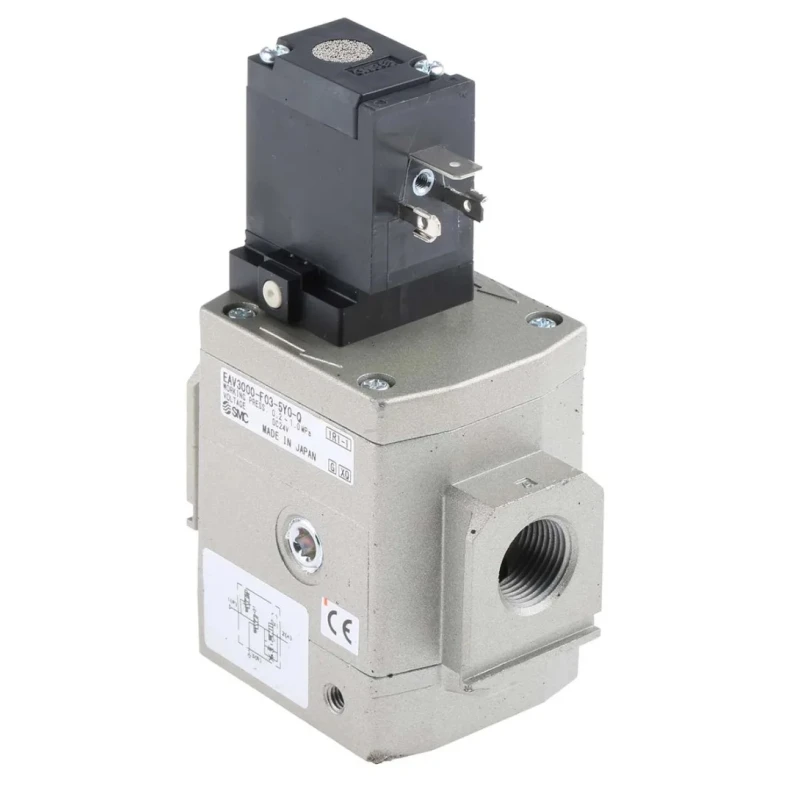

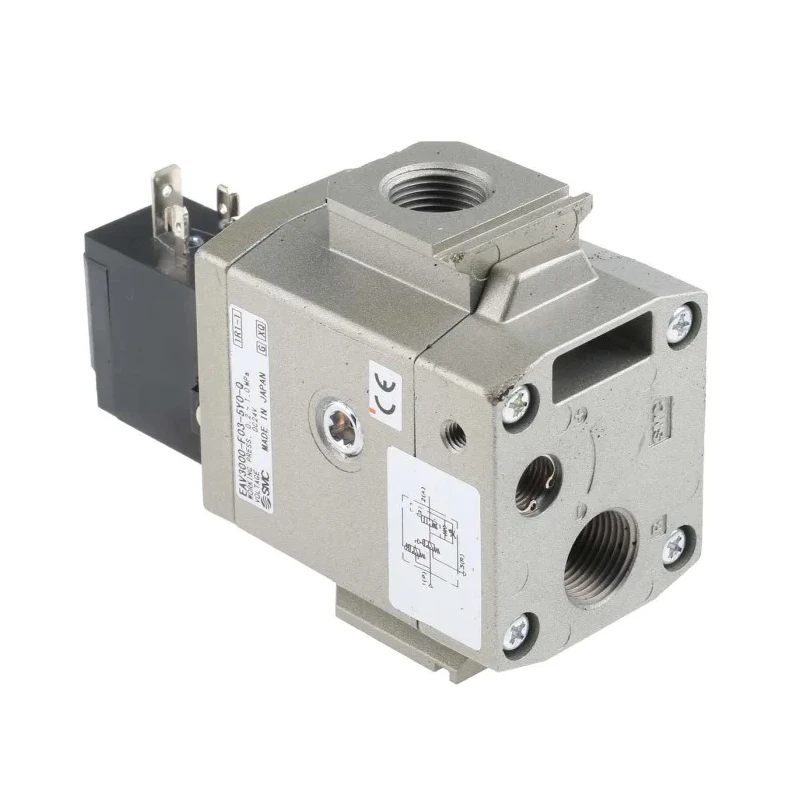

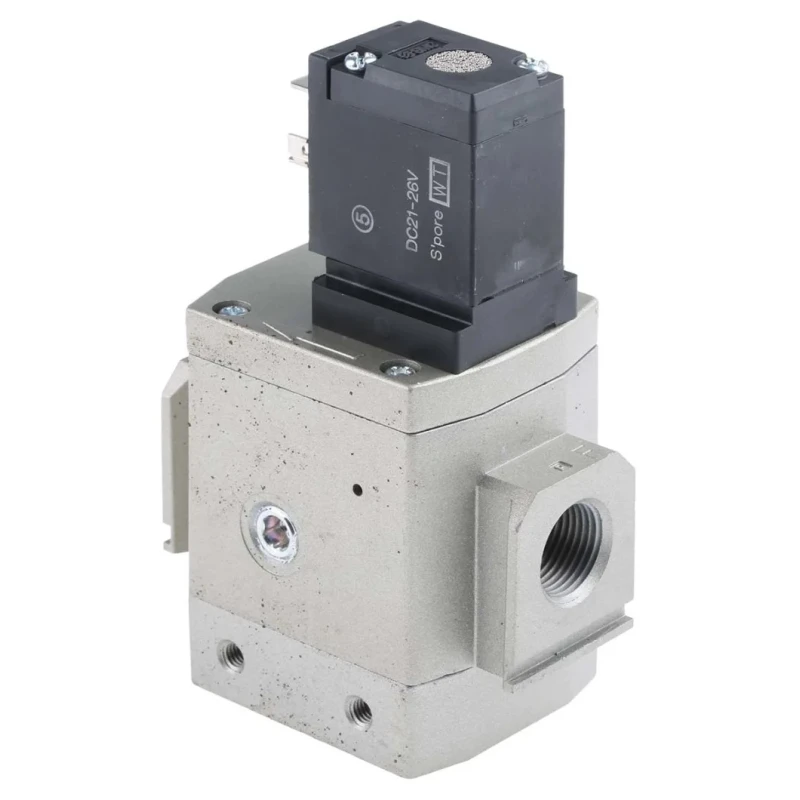

SMC Pneumatic Solenoid Valve Soft Start Up 3 Port G Series EAV3000 24V dc 1.8W Power

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve Soft Start Up 3 Port G Series EAV3000 24V dc 1.8W Power



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	1 Mpa
Model	EAV3000
Mount Type	Stand Alone
Series	EAV3000
Number Of Ports	3
Maximum Operating Temperature	60°C
Port Size	3/8 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	0°C
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	700-6305Brand: SMCManufacturers Part No.: EAV3000-F03-5YO-QDistrelec Article No.: 30410684
Connection Thread Standard	G
Minimum Pilot Pressure	0.2MPa
Valve Function	Soft Start Up, 3 Port
Electrical Connection Type	DIN Connector
Solenoid Power Consumption	1.8W

Key Features

This valve features a soft start-up function to gradually increase pressure at system start.
The device has a 3/8 inch G port size and three ports for air flow control.
Operates within a pressure range of 0.2 MPa to 1 MPa, with a maximum pressure of 1 MPa.
Made with die cast aluminium body and Nitrile Rubber (NBR) seals for durability.
Operates reliably between 0°C and 60°C ambient temperatures.
Equipped with a DIN connector for electrical connection.
Designed for standalone mounting installation.
Certified compliant with RoHS standards and IP65 rated.

Product Description

SMC EAV3000-F03-5YO-Q Pneumatic Solenoid Valve Soft Start Up 3 Port G series is engineered for controlled pneumatic applications requiring precise valve function at 24V dc and 1.8W power consumption. This valve facilitates a gradual pressure increase during system start-up and rapid air exhaust during shutdown, helping prevent system shock.

Constructed from a robust die cast aluminium body and sealed with nitrile rubber (NBR), the valve ensures durability in demanding industrial environments. It is designed for standalone mount use and has three ports with a 3/8 inch G thread standard connection, suitable for a wide range of pneumatic systems.

Operating temperature ranges from 0°C to 60°C, and with a maximum working pressure of 1 MPa, it operates efficiently across typical industrial pneumatic pressures. The valve consumes 1.8 watts of power and is protected to an IP65 rating, offering resistance against dust and water ingress.

The electrical connection uses a type Y DIN connector, compatible with SMC modular series FRL and Type Y DIN terminals, to simplify installation and maintenance. The minimum pilot pressure required for operation is 0.2 MPa. RoHS compliance ensures environmental and safety standards are met.

Ideal for industrial and manufacturing pneumatic control systems, this valve supports smooth start-up sequences and enhances system reliability. Applications include pneumatic tooling, automation lines, and fluid power controls in manufacturing and processing plants.

This valve features a soft start-up function to gradually increase pressure at system start. The device has a 3/8 inch G port size and three ports for air flow control. Operates within a pressure range of 0.2 MPa to 1 MPa, with a maximum pressure of 1 MPa.

Made with die cast aluminium body and Nitrile Rubber (NBR) seals for durability. Operates reliably between 0°C and 60°C ambient temperatures. Equipped with a DIN connector for electrical connection. Designed for standalone mounting installation.

Certified compliant with RoHS standards and IP65 rated. Manufactured in Japan ensuring high quality and precision. For reliable pneumatic control valves, explore more SMC products and industrial pneumatic solutions on EnvMart.
