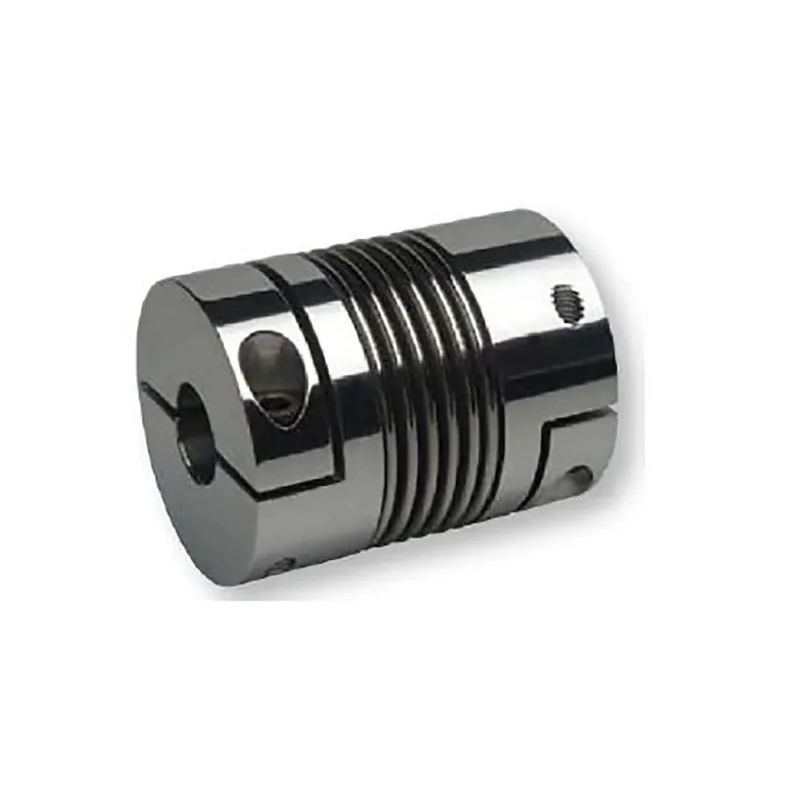

Huco Flexible Coupler, 56 mm OD, 22 mm Bore, 65 mm Length, Aluminium Hub, Stainless Steel Bellows, Clamp Style 554.56.4949

Huco 554.56.4949 flexible coupler is engineered for mechanical power transmission applications requiring precision shaft connections and excellent kinematic properties. With a 56 mm outer diameter and 22 mm bore size, this coupling is 65 mm long and features aluminium alloy hubs paired with stainless steel bellows. The clamp style connection facilitates easy installation and removal.

Designed to operate at speeds up to 10,300 rpm, this coupler accommodates a torque rating of 30 Nm and torsional stiffness of 38,000 Nm/rad, providing precise torque transmission with minimal backlash.

The coupling allows angular shaft misalignment up to 1.5°, parallel misalignment up to 0.15 mm, and axial displacement up to 0.6 mm, enabling flexible coupling motion while reducing wear.

With an operating temperature range of -30°C to 120°C, it suits diverse industrial environments including manufacturing, automation, and fluid power systems. The product is part of the Flex K series of Huco bellows couplings, known for durable and high-performing flexible couplings without standardized external approvals.

Clamp style design providing secure shaft connection. Maximum speed rating of 10,300 rpm for reliable performance. Torque rating of 30 Nm suitable for moderate power transmission. Torsional stiffness rated at 38,000 Nm/rad ensuring precise torque transmission.

Allows angular misalignment up to 1.5 degrees for shaft flexibility. Compensates parallel misalignment up to 0.15 mm and axial up to 0.6 mm. Operating temperature range from -30°C to 120°C for versatile environments. Constructed with aluminium hubs and stainless steel bellows for durability.

M6 screw size for shaft mounting convenience.

This flexible coupler is ideal for industrial equipment, mechanical drives, laboratory instrumentation, and fluid power systems demanding high precision and reliability. Explore EnvMart’s range for compatible power transmission components and accessories.
