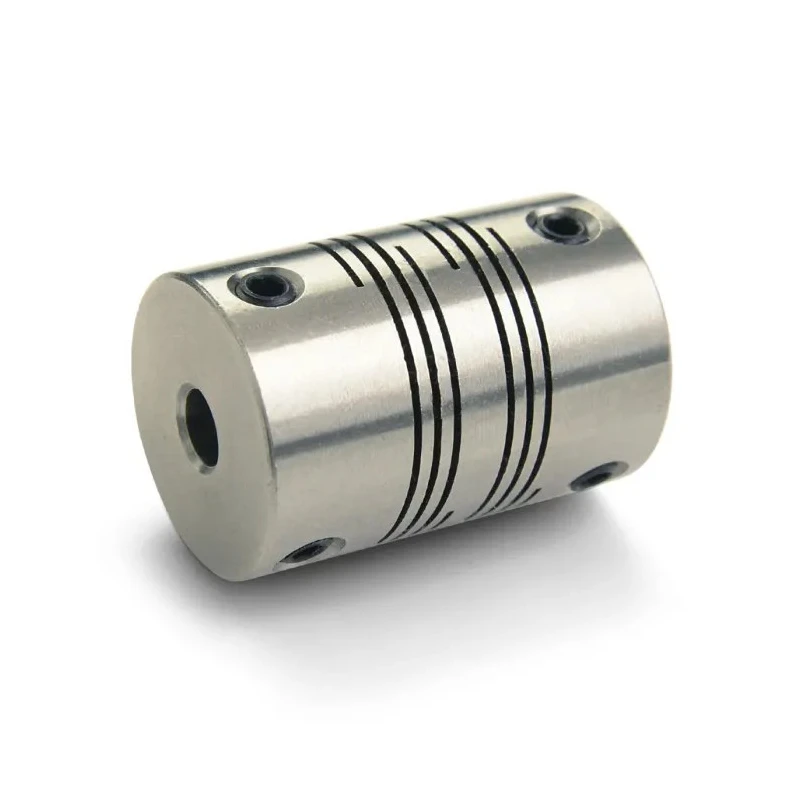

Ruland Stainless Steel Flexible Shaft Coupler, 38.1 mm OD, 16 mm Bore, 57.15 mm Length, Screw Style, Max FSMR38-16-16-SS

Ruland FSMR38-16-16-SS stainless steel flexible shaft coupler offers a robust and reliable mechanical power transmission solution ideally suited for industrial and automation applications. This one-piece screw-style coupler with 6 beams provides high torsional rigidity and zero backlash, enabling consistent performance at a maximum speed of 6000 rpm.

Constructed from corrosion-resistant stainless steel, the coupling tolerates harsh environmental conditions and extends equipment service life. It supports a torque rating of 10.73 Nm with a bore size of 16 mm on both ends and has an outside diameter of 38.1 mm and length of 57.15 mm.

The coupling permits angular misalignment up to 3°, parallel misalignment of 0.76 mm, and axial misalignment of 0.38 mm, accommodating shaft deviations typical in servo mechanisms, encoders, and robotics.

Operating across a wide temperature range from -40°C up to 176°C, the FSMR38-16-16-SS model is engineered for applications that demand durability and precision without the need for lubrication. Its screw style fixing utilizes M6 screws staggered at 120°, ensuring secure attachment and ease of installation.

Common industrial applications for this coupler include stepper motor connections, robotics, measuring instruments, pumps, valves, and fans. The coupling complies with DIN 912 12.9, REACH, and RoHS3 standards, ensuring quality and environmental compliance.

Constructed from stainless steel for durability and corrosion resistance. Supports a maximum speed of 6000 rpm for high-performance use. Offers a torque rating of 10.73 Nm ensuring reliable power transmission. Features screw style fixing with 6 beams to reduce backlash.

Allows up to 3° angular, 0.76 mm parallel, and 0.38 mm axial misalignment. Operates reliably between -40°C and 176°C temperature range. Manufactured as a one-piece construction to eliminate mechanical joints and failure points.

Typical uses include encoders, stepper motors, robotics, servo systems, pumps, and valves. Designed to perform under limited lubrication and varying alignment conditions. Explore EnvMart's extensive range of flexible couplings and mechanical power transmission components for optimized industrial automation and mechanical assemblies.
